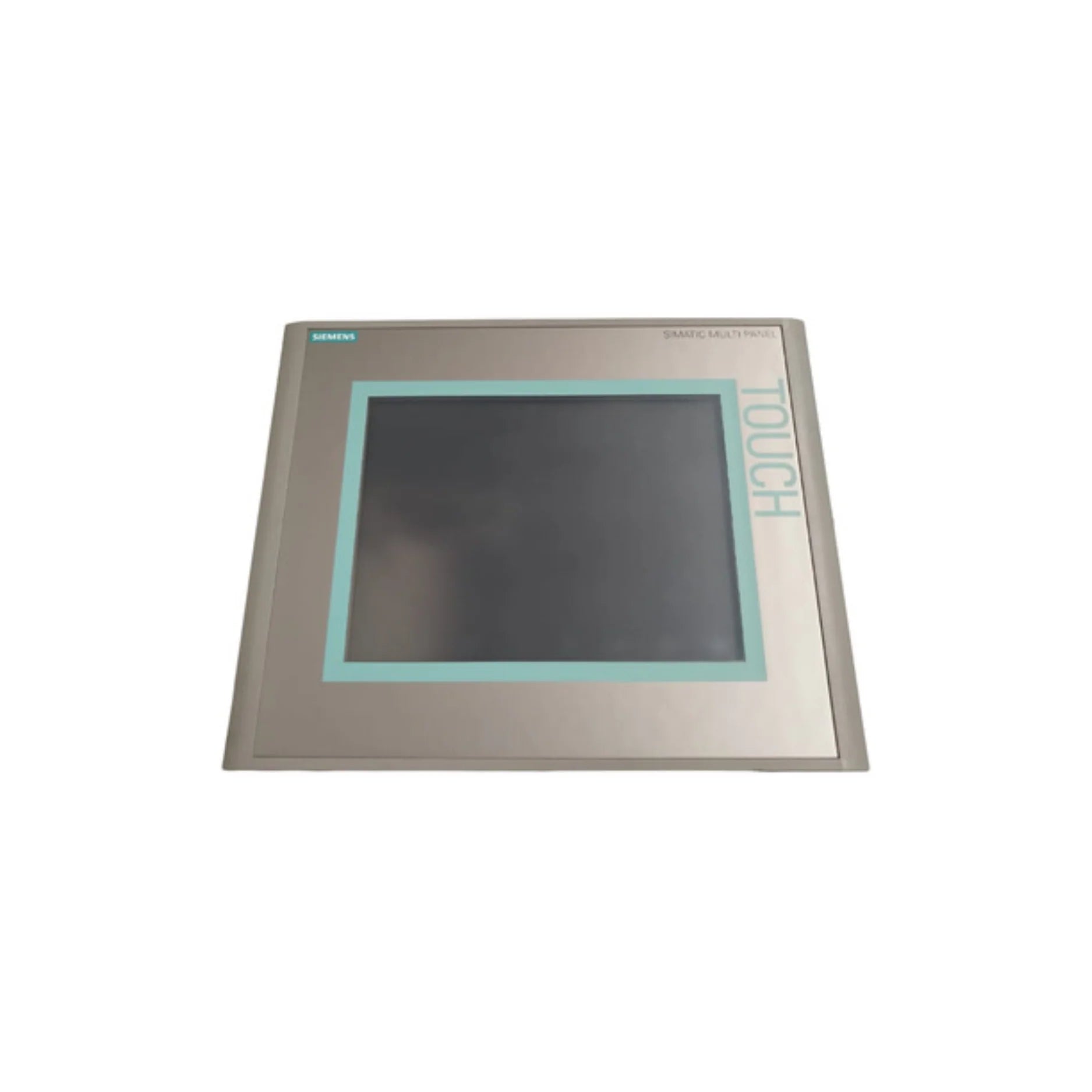

SIEMENS 6AV6643-0CD01-1AX1

Overview

The SIEMENS 6AV6643-0CD01-1AX1 SIMATIC HMI TP177B Touch Panel is an advanced human-machine interface designed to optimize industrial automation and process visualization. Engineered for reliability and user-friendliness, this compact yet powerful HMI solution is perfect for small to medium-sized automation systems. It features a crisp 5.7-inch TFT color display, providing operators with clear and intuitive control over complex machinery. With versatile communication options including PROFIBUS, PROFINET/Ethernet, and MPI, seamless integration into existing industrial networks is guaranteed. The integrated alarm and recipe management functions enhance operational efficiency, allowing for streamlined process control and fault diagnosis. Built with industrial-grade durability and an IP65 protection class for the front panel, this HMI withstands demanding environments, ensuring consistent performance and longevity.

Key Features

• Intuitive Touchscreen Interface: 5.7-inch TFT color display with 320 x 240 pixel (QVGA) resolution for clear and precise operation.
• Robust Communication: Supports PROFIBUS DP, PROFINET/Ethernet, and MPI for comprehensive connectivity options.
• Enhanced Memory: 32 MB Flash memory, expandable via MMC/SD card, for ample data storage and application flexibility.
• Integrated Functionality: Features built-in alarms, diagnostics display, and recipe management for efficient process control.
• Industrial Durability: IP65 protection class for the front panel ensures resistance against dust and water in harsh environments.
• User-Friendly Programming: Compatible with WinCC flexible 2005 or later software for easy configuration and development.
• Secure Operation: Includes password protection and user management functionalities to ensure data integrity and restricted access.

Technical Specifications

• Model: SIEMENS 6AV6643-0CD01-1AX1
• Series: SIMATIC HMI TP177B
• Display Type: 5.7-inch TFT touchscreen
• Resolution: 320 x 240 pixels (QVGA)
• Color Support: 256 colors
• Memory: 32 MB Flash (expandable with MMC/SD card)
• Communication Interfaces: Ethernet (RJ45), PROFIBUS DP (RS485, max 12 Mbps), MPI (for Siemens PLC communication), RS485 Serial Port
• Programming Software: WinCC flexible 2005 or later
• Power Supply: 24V DC (Typical consumption: ~6W)
• Protection Class: IP65 (front), IP20 (rear)
• Operating Temperature: 0°C to 50°C
• Weight: Approx. 0.9 kg
• Certifications: CE, UL, cUL

Applications

• Industrial Automation: Provides central control and visualization for various automated processes, enhancing operational oversight.
• Production Lines: Facilitates real-time monitoring and precise control of manufacturing sequences, improving output and reducing downtime.
• Packaging Machines: Enables efficient operation, quick parameter adjustments, and timely diagnostics for optimized packaging processes.
• Conveyor Systems: Offers intuitive control and monitoring capabilities for material handling, ensuring smooth and efficient transport.
• Food & Beverage Industry: Provides a hygienic and user-friendly HMI solution for automated processes, adhering to industry standards.
• Building Management Systems: Can be integrated for monitoring and controlling various building functions, leading to improved energy efficiency and comfort.

Why Choose This Model?

• Unmatched Reliability: As a SIEMENS product, the 6AV6643-0CD01-1AX1 guarantees high quality and enduring performance in demanding industrial settings.
• Seamless Integration: Its comprehensive communication options ensure effortless incorporation into existing SIMATIC systems and diverse industrial networks.
• Operator Efficiency: The intuitive touch interface and integrated functions significantly reduce operator training time and boost operational productivity.
• Future-Proof Design: Expandable memory and WinCC flexible support ensure this HMI can adapt to evolving automation requirements.
• Cost-Effective Solution: A robust and versatile touch panel that delivers powerful HMI capabilities for a wide range of applications without excessive investment.
• Global Compliance: With CE, UL, and cUL certifications, this product meets stringent international safety and quality standards.

Order Now

Elevate your industrial automation processes with the SIEMENS 6AV6643-0CD01-1AX1 SIMATIC HMI TP177B Touch Panel. Experience the difference that a reliable, high-performance, and user-friendly HMI can make in your operations. Contact us today or add to your cart to secure this essential component for your automation infrastructure.
