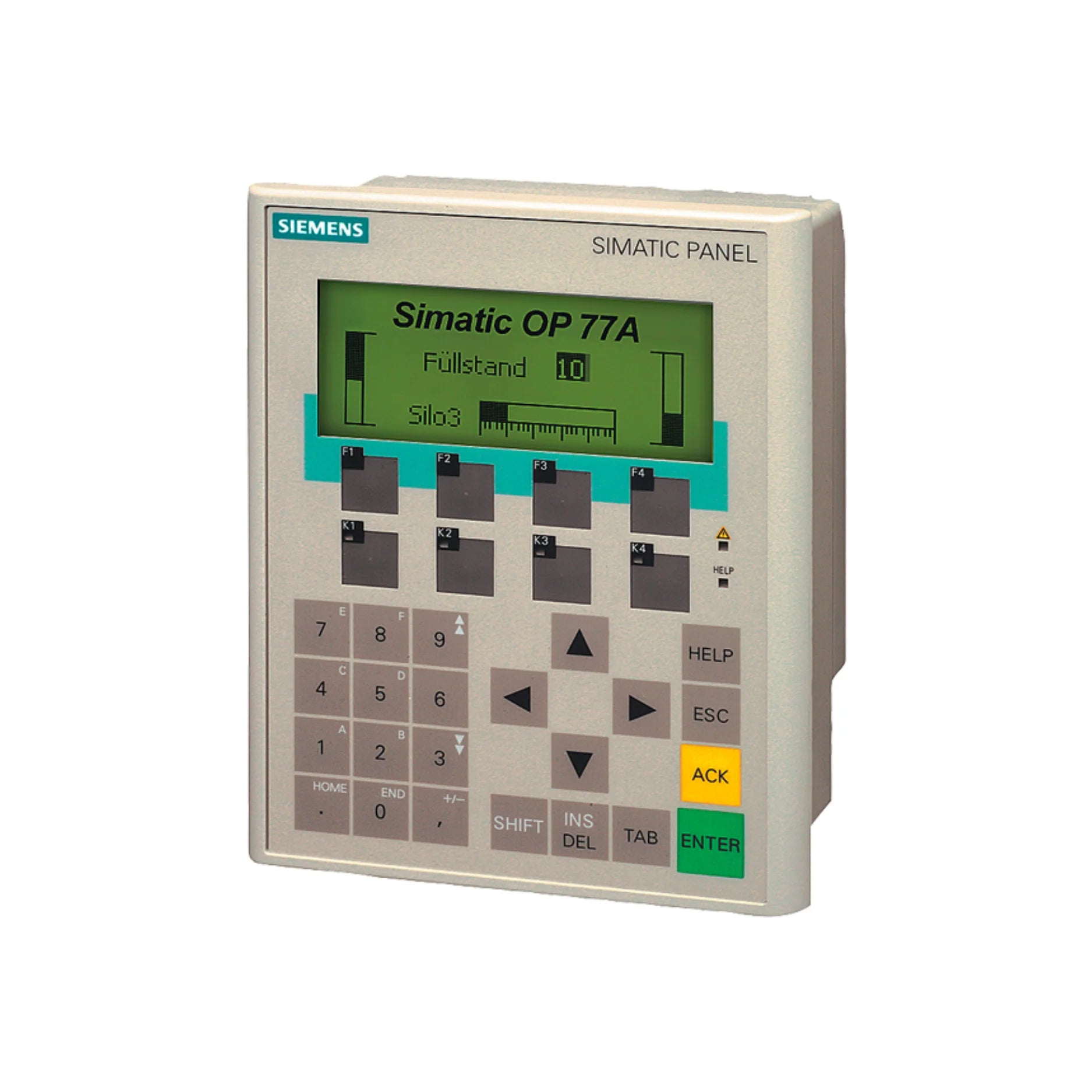

Siemens 6AV6641-0BA11-0AX1

Overview

The Siemens 6AV6641-0BA11-0AX1 SIMATIC Operator Panel OP 77A is an integral part of the renowned SIMATIC Human Machine Interface (HMI) series, meticulously engineered to provide efficient and intuitive interaction within industrial automation environments. This robust operator panel stands out with its crisp 4.5-inch backlit LC display, offering clear and precise visualization of critical processes and controls, empowering operators with real-time insights. Designed for seamless integration, the OP 77A supports high-speed MPI/PROFIBUS DP communication protocols, achieving data transmission rates of up to 1.5 Mbps, ensuring reliable and swift data exchange. Configuration is made straightforward with compatibility for WinCC flexible 2004 Compact and all subsequent versions, offering flexibility and ease of use for system integrators and engineers. Though officially discontinued as of October 1, 2024, without a direct replacement, the 6AV6641-0BA11-0AX1 remains a highly sought-after component for maintaining and upgrading existing SIMATIC systems due to its proven reliability and performance. This panel represents Siemens' commitment to delivering durable and effective industrial control solutions.

Key Features

• Vivid 4.5-inch Backlit LC Display: Provides a clear and graphics-capable interface for superior process visualization.
• High-Speed MPI/PROFIBUS DP Communication: Facilitates robust data exchange with transmission rates up to 1.5 Mbps, ensuring real-time control.
• WinCC flexible Compatibility: Easily configurable with WinCC flexible 2004 Compact and all newer software versions for streamlined setup.
• Robust Industrial Design: Engineered for reliability and longevity in demanding industrial environments.
• Intuitive Human-Machine Interaction: Enhances operator efficiency through a user-friendly interface for monitoring and control.
• Seamless Integration: Designed to effortlessly integrate into existing Siemens SIMATIC HMI infrastructures.
• Graphics Capability: Supports advanced graphical representations for enhanced and more informative user interfaces.

Technical Specifications

• Model Number: 6AV6641-0BA11-0AX1
• Series: SIMATIC HMI Operator Panel OP 77A
• Display Type: STN (Super Twisted Nematic) Backlit LC Display
• Display Size: 4.5 inches
• Communication Interfaces: MPI/PROFIBUS DP
• Data Transmission Rate: Up to 1.5 Mbps
• Configuration Software: WinCC flexible 2004 Compact or newer versions
• Product Status: Discontinued as of October 1, 2024 (No direct replacement)
• Included Software: Open-source software details available on enclosed CD

Applications

• Industrial Automation Systems: Serves as a critical user interface for comprehensive monitoring and precise control of complex industrial processes.
• Manufacturing and Production Lines: Enables operators to efficiently interact with machinery, manage production workflows, and ensure operational continuity.
• Process Control and Monitoring: Ideal for real-time adjustments and oversight of various process parameters in diverse industrial settings.
• Building Management Systems (BMS): Facilitates the management and control of building infrastructure, including HVAC, lighting, and security systems.
• Material Handling Systems: Provides an intuitive interface for controlling and optimizing automated material transport and storage.
• Water and Wastewater Treatment Plants: Essential for monitoring and controlling pumps, valves, and treatment processes to maintain operational efficiency.

Why Choose This Model?

• Proven Siemens Quality: Benefit from the reliability and engineering excellence synonymous with the Siemens brand in industrial automation.
• High-Clarity Display: The 4.5-inch backlit LC display offers superior readability and graphical representation for enhanced operational awareness.
• Efficient Communication: MPI/PROFIBUS DP interface ensures rapid and dependable data exchange for critical control applications.
• Configurable Flexibility: Compatibility with WinCC flexible 2004 Compact and later versions provides ease of setup and integration.
• Ideal for Existing Systems: Perfect for replacements or upgrades within established SIMATIC HMI infrastructures to maintain continuity.
• Robust for Industrial Use: Built to withstand harsh industrial environments, ensuring long-term performance and minimal downtime.

Order Now

Elevate your industrial control systems with the Siemens 6AV6641-0BA11-0AX1 SIMATIC Operator Panel OP 77A. Despite its discontinuation, its robust features and proven reliability make it an invaluable component for maintaining and optimizing your automation processes. Due to its status, availability may be limited, so secure your panel today. For detailed technical inquiries or assistance with migrating to alternative solutions, please refer to official Siemens documentation or consult an authorized Siemens representative. Explore our full range of Siemens Industrial Automation Products for more options.
