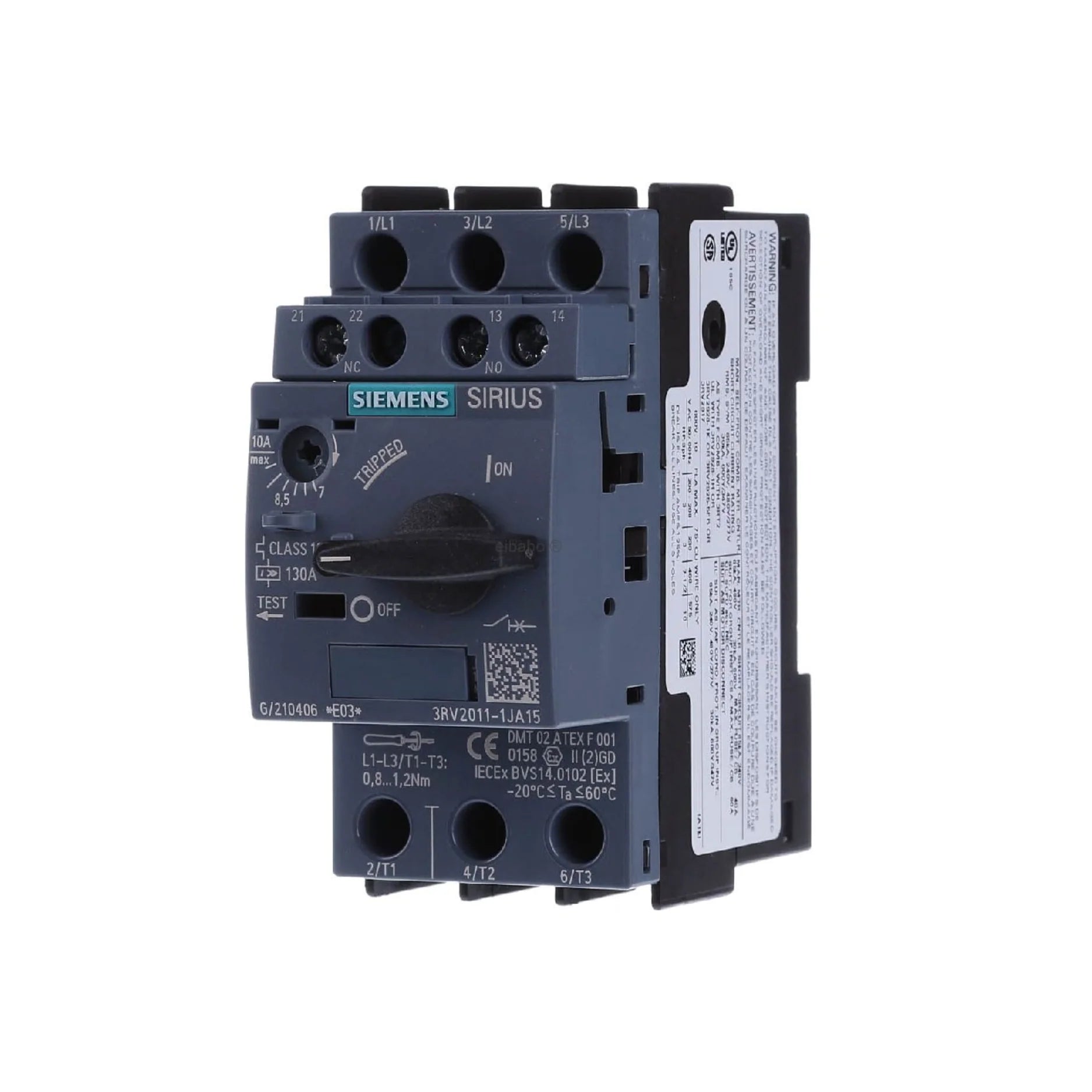

Siemens 3RV2011-1JA15

Overview

The Siemens 3RV2011-1JA15 SIRIUS 3RV2 Motor Protection Circuit Breaker is an essential component for safeguarding industrial motors against electrical faults. Engineered for reliability and precision, this compact S00 size device offers comprehensive protection from both overloads and short circuits, critical for maintaining operational uptime and extending equipment lifespan. With its adjustable thermal release and robust magnetic release, the 3RV2011-1JA15 provides flexible and immediate response to hazardous electrical conditions. This breaker exemplifies Siemens' commitment to innovation and safety in industrial automation, making it a cornerstone for efficient and secure motor management across diverse applications.

Key Features

• Adjustable Thermal Release (7-10 A): Empowers precise current setting to match specific motor requirements, preventing costly overloads.
• Fixed Magnetic Release (130 A): Guarantees rapid disconnections during sudden short circuits, protecting both the motor and connected systems from severe damage.
• Integrated Auxiliary Contacts (1 NO + 1 NC): Offers enhanced control and monitoring capabilities, facilitating seamless integration into complex control circuits.
• Robust Screw Terminal Connections: Ensures secure, reliable, and straightforward wiring, significantly reducing installation time and mitigating potential connection issues.
• Compact S00 Frame Size: Optimized for space-constrained environments without compromising on performance or protection capabilities.
• High Operational Voltage (Up to 690 V AC): Provides versatile compatibility for a broad range of industrial power systems.
• DIN Rail Mounting: Simplifies installation and integration into standard control panels, fostering greater efficiency and organization.

Technical Specifications

• Product Type: Motor Protection Circuit Breaker
• Part Number: 3RV2011-1JA15
• Series: SIRIUS 3RV2
• Frame Size: S00
• Thermal Release Adjustment Range: 7 to 10 A
• Magnetic Release Setting: 130 A
• Operational Voltage: Up to 690 V AC
• Power Rating at 400 V (AC-3): 4 kW
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Mounting Method: DIN rail mounting
• Terminal Type: Screw terminals
• Dimensions (H x W x D): 97 mm x 45 mm x 97 mm
• Net Weight: Approximately 0.36 kg
• Protection Class: IP20
• Standards Compliance: Conforms to IEC 60947-4-1 and IEC 60947-2

Applications

• Industrial Automation Systems: Crucial for protecting motors in automated production lines, ensuring continuous operation and minimizing costly downtime.
• Pumping and Fluid Control Systems: Safeguards pumps from electrical overload and short-circuit conditions, preventing damage and ensuring reliable fluid management.
• HVAC (Heating, Ventilation, and Air Conditioning) Units: Provides robust protection for motors in HVAC systems, ensuring consistent climate control and operational efficiency.
• Conveyor and Material Handling Systems: Essential for maintaining the smooth and uninterrupted operation of conveyor motors, addressing electrical anomalies promptly.
• Machine Tool Applications: Offers reliable protection for motors in various machine tools, enhancing safety and extending equipment life.
• Textile and Packaging Machinery: Guarantees consistent performance and safety for motors in specialized machinery.

Why Choose This Model?

• Unmatched Reliability: Built by Siemens, a global leader in industrial automation, ensuring a product of superior quality and durability.
• Enhanced Motor Longevity: Provides precise protection against overloads and short circuits, significantly extending the operational life of your valuable motors.
• Flexible Integration: The adjustable thermal release and auxiliary contacts allow for seamless integration into a wide array of control circuits and applications.
• Space-Saving Design: Its compact S00 frame size makes it ideal for installation in control panels where space is a premium.
• Compliance and Safety: Adheres to international standards like IEC 60947-4-1 and IEC 60947-2, guaranteeing a safe and compliant solution for your industrial needs.
• Ease of Installation: Screw terminal connections and DIN rail mounting simplify the setup process, reducing installation time and labor costs.

Order Now

Invest in the superior protection and performance of the Siemens 3RV2011-1JA15 SIRIUS 3RV2 Motor Protection Circuit Breaker. Ensure the safety, efficiency, and longevity of your industrial motors. Add this essential component to your system today and experience the unparalleled quality that only Siemens can deliver. For more information or to explore our complete range of Siemens Industrial Automation Products, browse our full catalog.
