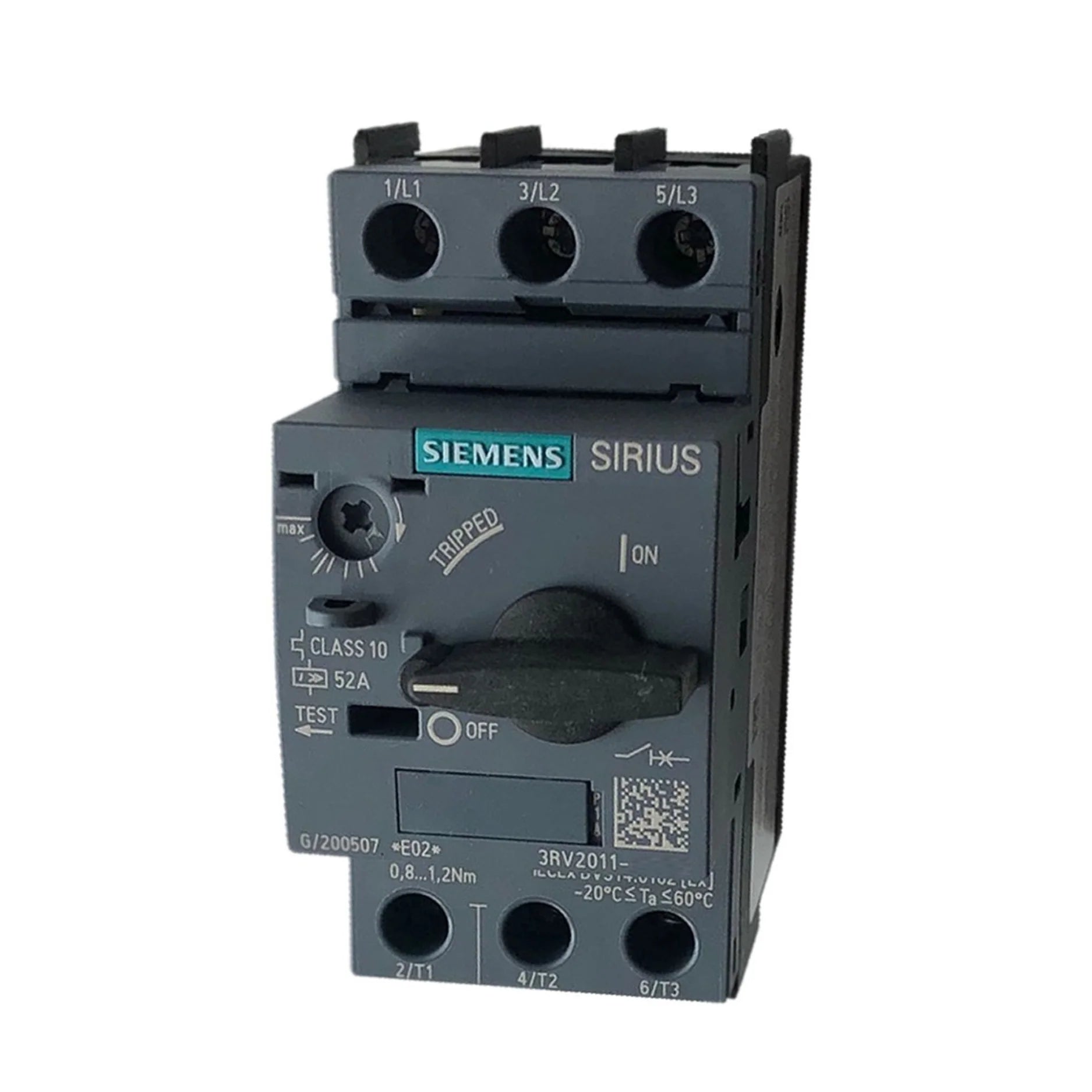

Siemens 3RV2011-1AA10

Overview

The Siemens 3RV2011-1AA10 SIRIUS Motor Starter Protector is an essential component for safeguarding industrial motors against common electrical faults. Engineered for reliability and precision, this compact S00 size protector is specifically designed to prevent damage caused by thermal overloads and short circuits, ensuring the longevity and efficient operation of your motor-driven systems. With an adjustable thermal overload release ranging from 1.1 to 1.6 A and a fixed magnetic trip at 21 A, it offers precise protection tailored to a variety of applications. This robust device is capable of handling motors with a power rating up to 0.55 kW at 400 V AC, making it ideal for a wide array of industrial machinery. Its user-friendly screw terminals facilitate quick and secure wiring, streamlining installation and maintenance.

Key Features

• Precise Motor Protection: Offers adjustable thermal overload protection from 1.1 to 1.6 A and a fixed magnetic trip at 21 A for fault prevention.
• Compact Design (Size S00): Space-saving profile suitable for integration into various control panels and automated systems.
• Versatile Application: Supports motors up to 0.55 kW at 400 V AC, accommodating diverse industrial requirements.
• Secure Screw Terminals: Ensures reliable and straightforward electrical connections, minimizing installation time.
• Durable Construction: Built for extended operational life with 100,000 mechanical and electrical operating cycles.
• DIN Rail Mounting: Facilitates easy and secure installation within standard industrial enclosures.
• IP20 Protection Class: Provides protection against solid objects larger than 12.5mm, suitable for industrial environments.

Technical Specifications

• Product Type: Motor Starter Protector
• Part Number: 3RV2011-1AA10
• Series: SIRIUS
• Size: S00
• Thermal Overload Release: Adjustable from 1.1 to 1.6 A
• Magnetic Trip Release: Fixed at 21 A
• Motor Power Rating (400V AC): Up to 0.55 kW
• Rated Operational Voltage: Up to 690 V AC
• Number of Poles: 3
• Frequency: 50/60 Hz
• Trip Class: 10
• Mechanical Service Life: Approx. 100,000 operating cycles
• Electrical Endurance: Approx. 100,000 operating cycles
• Dimensions (H x W x D): 97 mm x 45 mm x 97 mm
• Weight: Approx. 0.344 kg
• Protection Class: IP20
• Standards Compliance: IEC 60947-4-1
• Terminals: Screw-type
• Mounting: DIN rail mounting

Applications

• Industrial Automation Systems: Integrates seamlessly into motor control centers, production lines, and automated machinery for robust motor supervision.
• Machine Building: Essential for protecting motors in various machinery, including pumps, conveyors, fans, and compressors.
• HVAC Systems: Provides critical overload and short-circuit protection for motors in heating, ventilation, and air conditioning units.
• Material Handling Equipment: Ensures the safe and continuous operation of motors used in hoists, cranes, and other material transport systems.
• Water Treatment Facilities: Safeguards pump motors and other rotating equipment in demanding water and wastewater processing environments.

Why Choose This Model?

• Unwavering Reliability: Siemens’ reputation for quality ensures a highly dependable and long-lasting motor protection device.
• Optimized Motor Lifespan: Provides comprehensive protection against costly overloads and short circuits, extending the operational life of your motors.
• Effortless Integration: The compact S00 size and DIN rail mounting make installation and integration into existing systems straightforward.
• Precision Engineering: Adjustable thermal overload and a fixed magnetic trip offer precise and tailored protection for your specific motor requirements.
• Compliance and Safety: Adherence to IEC 60947-4-1 standards guarantees that the device meets rigorous international safety and performance criteria.

Order Now

Enhance the safety and efficiency of your motor-driven systems with the advanced Siemens 3RV2011-1AA10 SIRIUS Motor Starter Protector. This crucial component delivers reliable protection, extending the lifespan of your valuable industrial motors. Don't compromise on motor safety – order your Siemens 3RV2011-1AA10 today and ensure uninterrupted operation and peace of mind. Explore the complete Siemens Industrial Automation Products portfolio to discover more innovative solutions.
