Siemens 3NE3233

Overview

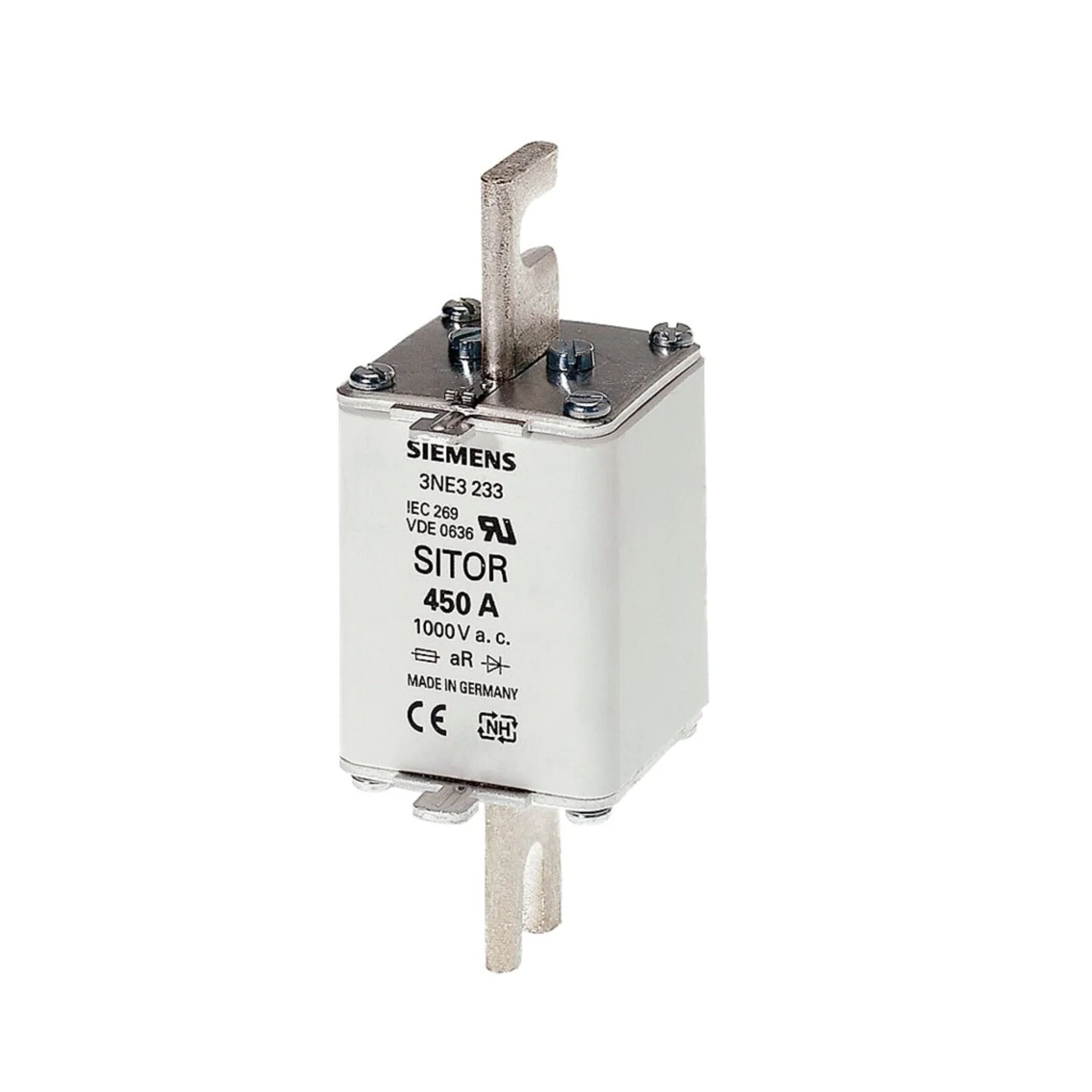

The Siemens 3NE3233 SITOR semiconductor protection fuse link, part of the distinguished Siemens SENTRON family, is engineered for uncompromising performance in low-voltage HRC applications. This essential component provides robust and rapid protection for sensitive semiconductor devices and critical power electronic systems. With an impressive rated voltage of 1000 V AC and a formidable breaking capacity of 100 kA, the 3NE3233 operates within the aR class, guaranteeing precise and exceptionally fast-acting safety protocols. Its NH1 designation signifies adherence to established industry standards, ensuring compatibility and reliability. Designed with efficiency and ease of maintenance in mind, this fuse link features silver-plated slotted blade contacts suitable for M10 screw fixing (with a 110 mm mounting dimension), making it ideal for seamless integration into LV HRC fuse bases or switch disconnectors. A prominent front indicator offers immediate and unambiguous visibility of the fuse's condition, streamlining maintenance procedures and significantly enhancing overall system reliability and uptime.

Key Features

• High-Performance aR Operating Class: Optimized for rapid and precise protection of semiconductor devices.
• Exceptional Voltage and Breaking Capacity: Rated at 1000 V AC with a robust 100 kA breaking capacity for critical applications.
• Silver-Plated Slotted Blade Contacts: Ensures superior conductivity, minimal power loss, and long-term durability.
• Front-Mounted Indicator: Provides immediate visual status of the fuse, simplifying troubleshooting and maintenance.
• NH1 Design for LV HRC Applications: Standardized form factor for easy integration into existing fuse bases and switch disconnectors.
• Wide Operating Temperature Range: Reliable performance from –20 °C to +50 °C, suitable for diverse industrial environments.
• Siemens SENTRON Quality: A trusted name synonymous with industrial reliability and cutting-edge protection technology.

Technical Specifications

• Manufacturer: Siemens SENTRON
• Article Number: 3NE3233
• Fuse Link Type: SITOR, LV HRC design
• Rated Current: Per NH1 application rating
• Rated Voltage: 1000 V AC
• Fuse Class: aR (semiconductor protection)
• Breaking Capacity: 100 kA (conforming to IEC 60947-2)
• Power Loss: 95 W (per pole, measured in hot operating state)
• Mounting Dimensions: 110 mm
• Net Weight: 586 g
• Contacts: Silver-plated, slotted blade type for M10 screw fixing
• Installation: Designed for use in LV HRC fuse bases or switch disconnectors
• Compliance: IEC 60947-2, EN 60269-1
• Varying Load Factor (WL): 0.9
• Operating Temperature: –20 °C to +50 °C, up to 95% Relative Humidity
• Mounting Position: Any, with vertical orientation preferred for optimal performance.

Applications

• Advanced Semiconductor Protection: Safeguarding diodes, thyristors, and other critical semiconductor components from overcurrents.
• Inverter and Converter Systems: Essential for protecting power conversion stages in various industrial and renewable energy setups.
• Power Electronic Systems: Fundamental protection in high-power electronic circuits and equipment.
• Motor Drives and Rectifiers: Offering reliable defense against short circuits and overloads in industrial motor control applications.
• Renewable Energy Installations: Crucial for the protection of components in solar inverters, wind turbine converters, and battery storage systems.
• High-Voltage Industrial Applications: Providing robust overcurrent protection in demanding industrial environments where sensitive electronics are present.
