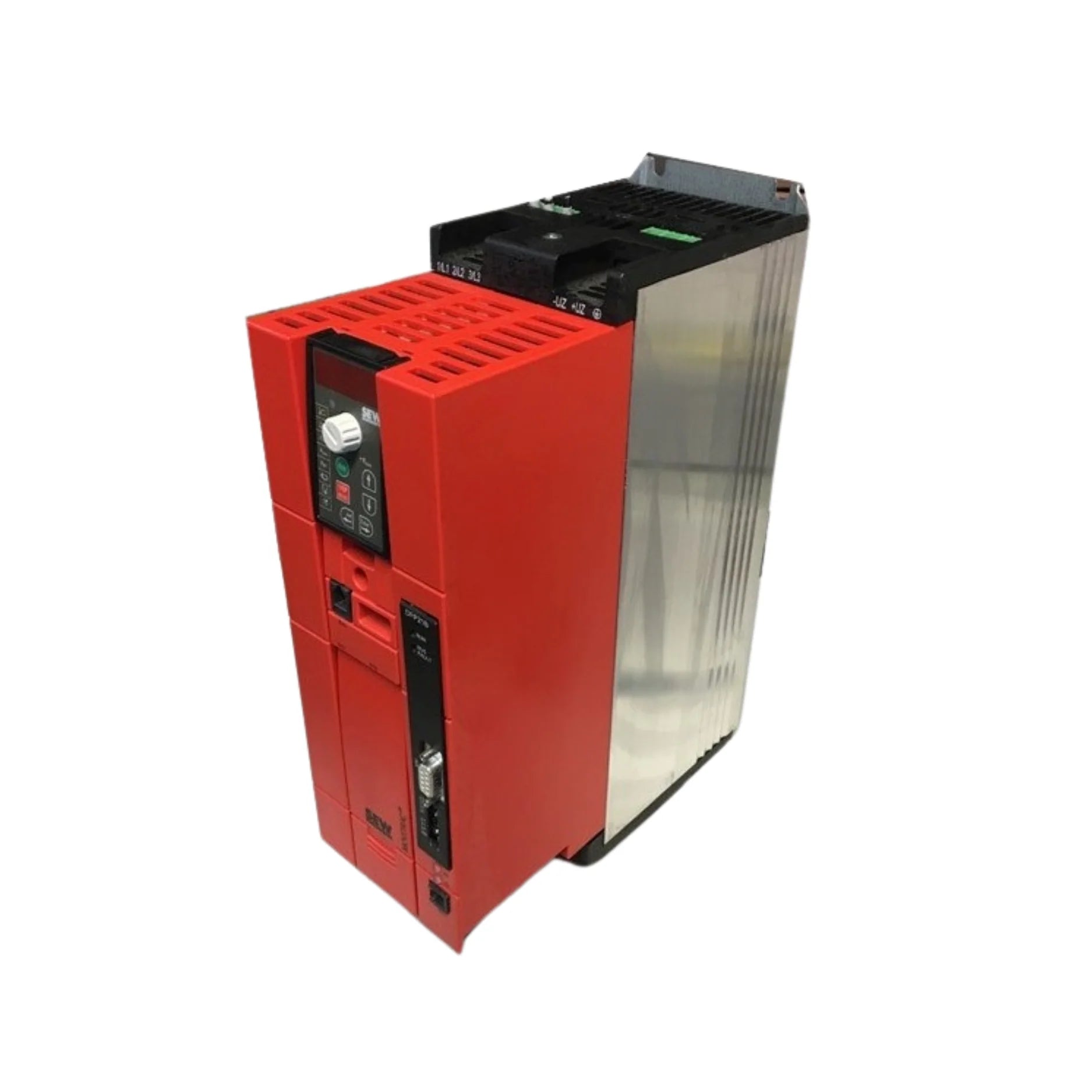

SEW-Eurodrive MC07B0075-5A3-4-00

Overview

Experience precision engineering with the SEW-Eurodrive MC07B0075-5A3-4-00, an exceptional 7.5 kW inverter drive from the renowned MOVITRAC® B series. Meticulously engineered for precise command over asynchronous AC motors, this drive delivers consistent and reliable performance across a broad spectrum of industrial settings. Boasting a robust supply voltage range of 3× 380–500 V AC and a formidable rated output current of 16 A, it provides the solid foundation required for demanding automation tasks. The standard configuration further enhances its capabilities with an integrated brake chopper, ensuring seamless and efficient braking operations.

Key Features

• Optimized Power Output: Delivers 7.5 kW (10 HP) of motor power for efficient operation.
• Versatile Voltage Input: Operates on a wide 3× 380–500 V AC supply.
• High Current Capacity: Provides a strong 16 A output current for demanding loads.
• Compact Footprint: Designed in a space-saving Size 2S.
• Dual Control Modes: Supports both V/f and VFC (Voltage Frequency Control) for adaptable motor management.
• Integrated Braking Solution: Features a built-in brake chopper facilitating 4-quadrant operation.
• Robust Protection: Secured with an IP20 protection class against solid objects.
• Efficient Cooling: Utilizes forced air cooling to maintain optimal operating temperatures.
• Expandable Architecture: Modular design allows for integration of optional communication modules and accessories.
• Unique Identifier: Easily identified by its Part Number: MC07B0075-5A3-4-00.

Technical Specifications

• Model Designation: MC07B0075-5A3-4-00
• Input Voltage Range: 3× 380–500 V AC (±10% tolerance)
• Input Frequency: Accommodates 50/60 Hz (±5% tolerance)
• Rated Output Current: 16 A continuous output.
• Output Power Rating: 11.1 kVA for diverse applications.
• Adjustable Output Frequency: Ranging from 0–400 Hz.
• Physical Dimensions (W×H×D): 105 × 335 × 238 mm for straightforward integration.
• Product Weight: Approximately 5 kg, ensuring ease of handling.
• Operating Temperature: Functional from 0 °C to +50 °C (with applicable derating above 40 °C).
• Installation Height: Up to 1000 m without performance reduction; derating applies beyond this altitude.
• Certifications: Complies with CE, UL, cUL, GOST-R, and C-Tick standards.

Applications

• High-volume Material Handling Systems
• Sophisticated Packaging Machinery
• Efficient Conveyor Networks
• Precision Automated Assembly Lines
• Reliable Pumps and Industrial Fans
• Advanced Textile Manufacturing Equipment

Why Choose This Model?

The SEW-Eurodrive MC07B0075-5A3-4-00 stands out as an exemplary choice for industries demanding superior motor control and operational integrity. Its strategic design allows for highly efficient control of asynchronous motors, translating into optimized energy use and enhanced process reliability. The drive consistently delivers high performance, ensuring stable speed and torque management even in the most challenging scenarios. Its inherently modular design readily accommodates various communication options, providing unparalleled flexibility for system integration and future expansions. Furthermore, the compact form factor allows for effortless, space-saving installation within control cabinets, a critical advantage in modern industrial layouts. Backed by SEW-Eurodrive's reputation, this model offers proven reliability and unwavering performance, making it a trusted component in countless industrial environments worldwide.
