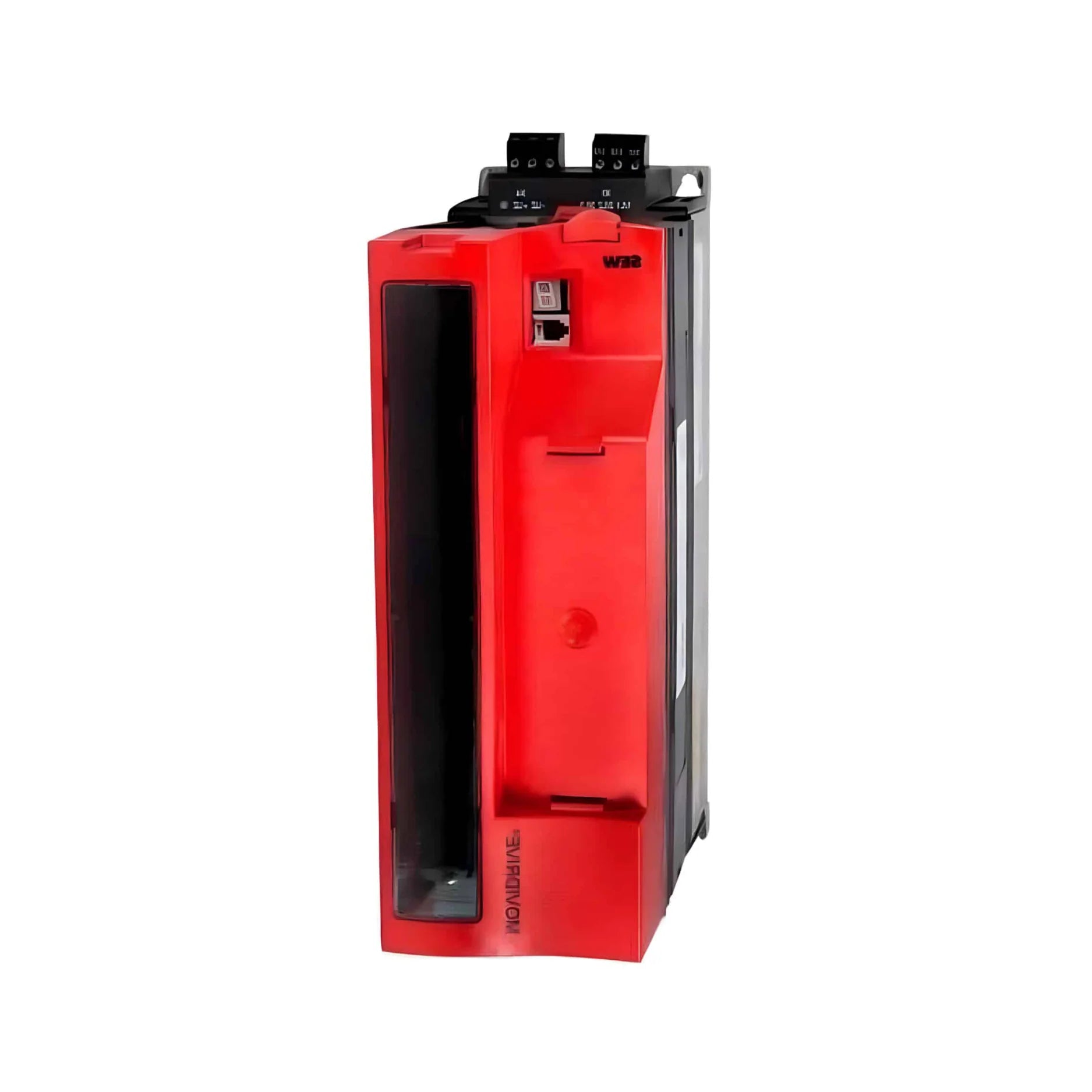

SEW MDX61B0110-5A3-4-0T

Overview

Unleash unparalleled precision and adaptability in your industrial operations with the SEW MDX61B0110-5A3-4-0T. This 11 kW (15 HP) frequency inverter, a standout within the acclaimed MOVIDRIVE® B series, redefines advanced motion control for asynchronous motors. Engineered for today's dynamic industrial landscape, its profoundly modular architecture seamlessly integrates with diverse communication protocols and advanced feedback mechanisms, establishing it as an exceptionally flexible and potent solution for a myriad of industrial automation challenges.

Key Features

• Power Delivery Excellence: Delivers a substantial 11 kW (15 HP) to drive your critical machinery efficiently.
• Broad Input Compatibility: Accepts a versatile 3-phase 380–500V AC input, ensuring broad system compatibility.
• Dynamic Output Control: Provides adjustable 0–Uin AC output voltage for precise motor management.
• Extensive Frequency Range: Boasts an impressive 0–599 Hz output frequency, catering to diverse application speeds.
• Refined Control Methodologies: Utilizes both VFC (Voltage Frequency Control) and CFC (Current Frequency Control) for optimized motor performance.
• Resilient Enclosure: Features an IP20 protection class, suitable for controlled industrial environments.
• Intelligent Cooling System: Equipped with temperature-controlled forced ventilation to maintain optimal operating conditions.
• Expansive Modularity: Includes 2 dedicated slots for easy incorporation of encoder or fieldbus modules (e.g., PROFIBUS, EtherCAT), extending its functional reach.
• Integrated Advanced Functions:
  • Built-in brake chopper enhances stopping capabilities.
  • Flying restart function ensures rapid recovery after power interruptions.
  • PID controller for sophisticated process regulation.
  • Comprehensive safety features, adhering to STO compliance, for operational security.

Technical Specifications

• Precise Model Designation: MDX61B0110-5A3-4-0T
• Nominal Output Capacity: 11 kW
• Rated Current Output: Approximately 24 A
• Flexible Switching Frequency: User-adjustable up to 16 kHz for fine-tuned control.
• Physical Dimensions (H x W x D): Compact ~470 mm x 150 mm x 320 mm footprint.
• Manageable Mass: Weighs in at around 10.5 kg.
• Operational Temperature Range: Functions reliably within 0°C to +50°C.
• Global Compliance: Holds CE, UL, and CSA certifications, ensuring international standards are met.

Applications

The SEW MDX61B0110-5A3-4-0T is an indispensable component across a spectrum of industrial applications, including but not limited to:

• High-demand conveyor and sophisticated hoist systems.
• Precision-driven automated packaging lines.
• High-volume industrial pumps and efficient ventilation fans.
• Complex multi-axis synchronization and accurate positioning tasks.
• Advanced robotics and precise gantry control systems.

Why Choose This Model?

• Elevated Performance Standards: Specifically engineered to excel in the most rigorous applications demanding impeccable torque precision and dynamic response.
• Unmatched Flexible Integration: Its innovative modular slot design provides a pathway for bespoke system configurations, adapting effortlessly to your evolving needs.
• Optimized Compact Design: The IP20-rated, mountable unit, with available optional panel kits, allows for efficient space utilization without compromising functionality.
• Significant Energy Efficiency: Engineered to drive motors with enhanced efficiency, directly contributing to reduced operational expenditures and a greener footprint.
• Insightful Robust Diagnostics: Fully compatible with the intuitive DBG60B display or the powerful MOVITOOLS® MotionStudio, offering comprehensive monitoring and diagnostic capabilities.

Order Now

Acquire the cutting-edge SEW MDX61B0110-5A3-4-0T inverter, ready for expedited global dispatch. Elevate your industrial automation capabilities today.
