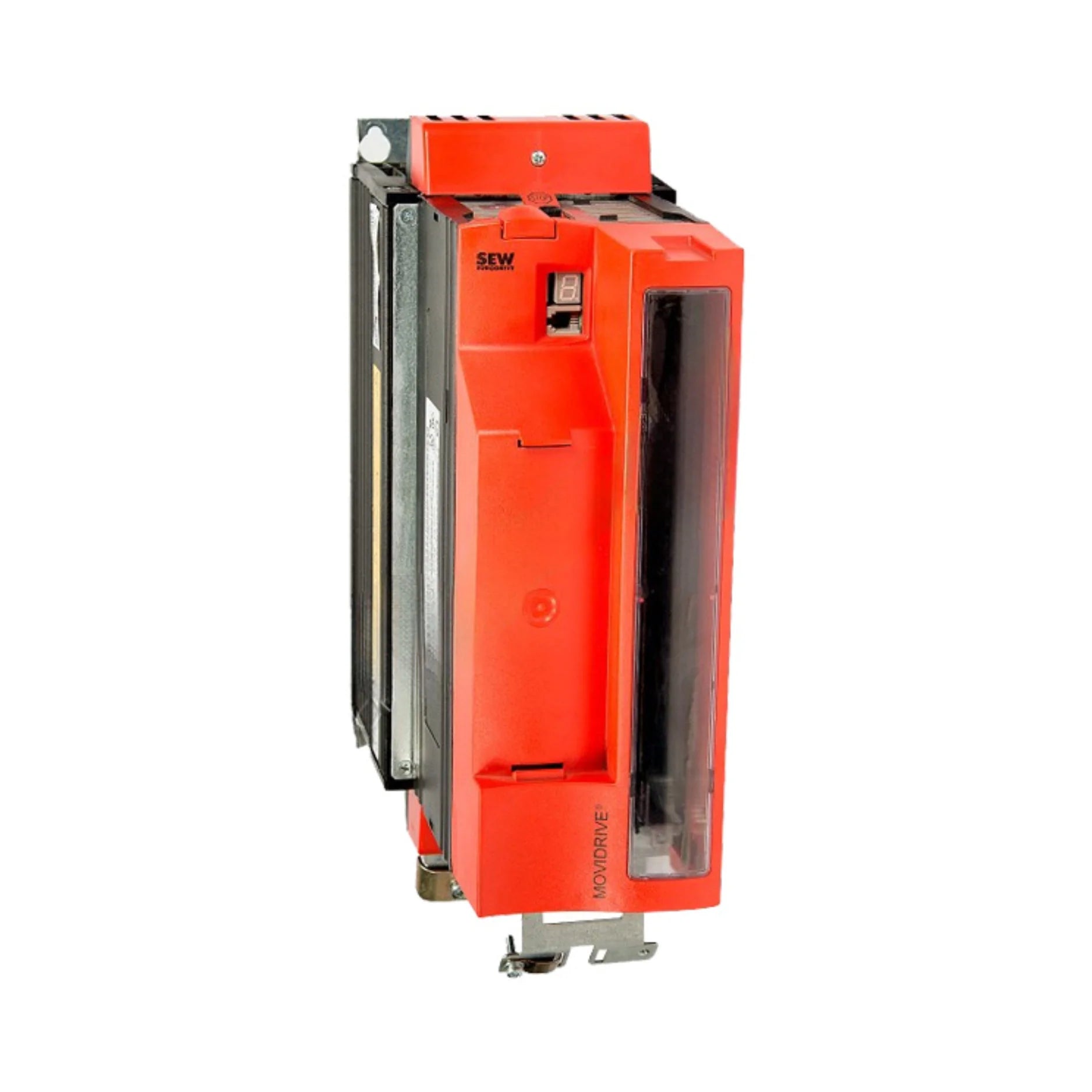

SEW-Eurodrive MDX61B0055-5A3-4-00

Overview

Experience precision and power with the SEW MOVIDRIVE MDX61B0055-5A3-4-00, an exceptional 5.5 kW inverter drive from the renowned MOVIDRIVE® B series. Engineered for masterful regulation of asynchronous AC motors, this robust unit offers unparalleled performance across a spectrum of industrial automation tasks. With a versatile supply voltage ranging from 3× 380–500 V AC and a substantial output current of 12.5 A, it guarantees steadfast operation and peak efficiency. This cutting-edge model arrives as a standard iteration, thoughtfully equipped with an integrated brake chopper, facilitating advanced braking functionalities for dynamic applications.

Key Features

• Commanding Motor Output: Harness 5.5 kW (7.5 HP) of dependable motor power.
• Adaptable Power Input: Operates efficiently with a 3× 380–500 V AC supply voltage.
• Significant Current Delivery: Provides a robust 12.5 A of output current.
• Optimized Drive Footprint: Designed within a compact Size 2 form factor.
• Versatile Control Mechanisms: Supports both V/f and Voltage Frequency Control (VFC) modes for adaptable motor management.
• Integrated Braking Intelligence: Features a built-in brake chopper, enabling comprehensive 4-quadrant operation for enhanced control.
• Environmental Shielding: Boasts an IP20 protection class, safeguarding internal components.
• Advanced Thermal Management: Employs forced air cooling for sustained optimal performance.
• Scalable Architecture: Modular design welcomes a variety of optional communication modules and accessories, enhancing adaptability.
• Unique Identifier: Recognized by part number 8279616.

Technical Specifications

Delve into the engineering excellence of the MDX61B0055-5A3-4-00 with its detailed technical parameters:

• Exact Model Designation: MDX61B0055-5A3-4-00
• Voltage Input Range: 3× 380–500 V AC (tolerance ±10%)
• Frequency Input: 50/60 Hz (tolerance ±5%)
• Nominal Output Current: 12.5 A
• Effective Output Power: 8.7 kVA
• Output Frequency Band: Adjustable from 0–400 Hz
• Physical Dimensions (W×H×D): 105 × 335 × 294 mm
• Approximate Mass: 6.6 kg
• Operational Temperature Spectrum: 0 °C to +50 °C (requires power derating above 40 °C)
• Installation Elevation Tolerance: Up to 1000 m without derating; derating principles apply beyond 1000 m
• Regulatory Adherence: Complies with CE, UL, cUL, GOST-R, C-Tick standards.

Applications

The SEW MOVIDRIVE MDX61B0055-5A3-4-00 is a versatile solution, perfectly suited for optimizing a wide array of industrial processes:

• Sophisticated Material Handling Systems: Enabling smooth and controlled movement of goods.
• Precision Packaging Machinery: Ensuring consistent and efficient packaging operations.
• Dynamic Conveyor Systems: Providing reliable speed control for various conveyor setups.
• Automated Assembly Lines: Critical for synchronized and precise assembly processes.
• Pumps and Fans Management: Offering energy-efficient control for fluid and air systems.
• Advanced Textile Machinery: Supporting intricate and high-speed textile production.

Why Choose This Model?

Opting for the SEW MOVIDRIVE MDX61B0055-5A3-4-00 means investing in superior performance and lasting reliability for your operations:

• Peerless Motor Optimization: Specifically engineered for exceptional control and efficiency with asynchronous motors.
• Consistent High Performance: Delivers unwavering speed and torque regulation, ensuring operational stability.
• Effortless Modular Growth: Designed for easy integration with various communication modules, paving the way for future expansion.
• Intelligent Space-Saving Design: Its compact form factor allows for streamlined installation within control cabinets, maximizing valuable space.
• Legacy of Dependability: Built upon SEW's trusted reputation, this drive offers proven, consistent performance in demanding industrial settings.

Explore the full breadth of our SEW-Eurodrive MOVIDRIVE MDX Series to uncover more advanced motion control solutions tailored to your unique needs.

Return to the main SEW-Eurodrive Servo Drives collection to browse our comprehensive range of drive and automation systems.

Order Now

Elevate your industrial processes today with the SEW MOVIDRIVE MDX61B0055-5A3-4-00. Contact our sales team or visit our product page to secure this advanced inverter drive. Experience the difference in precision, efficiency, and reliability that only SEW-Eurodrive can provide. Our experts are ready to assist you in integrating this powerful solution into your existing systems for immediate operational enhancements.
