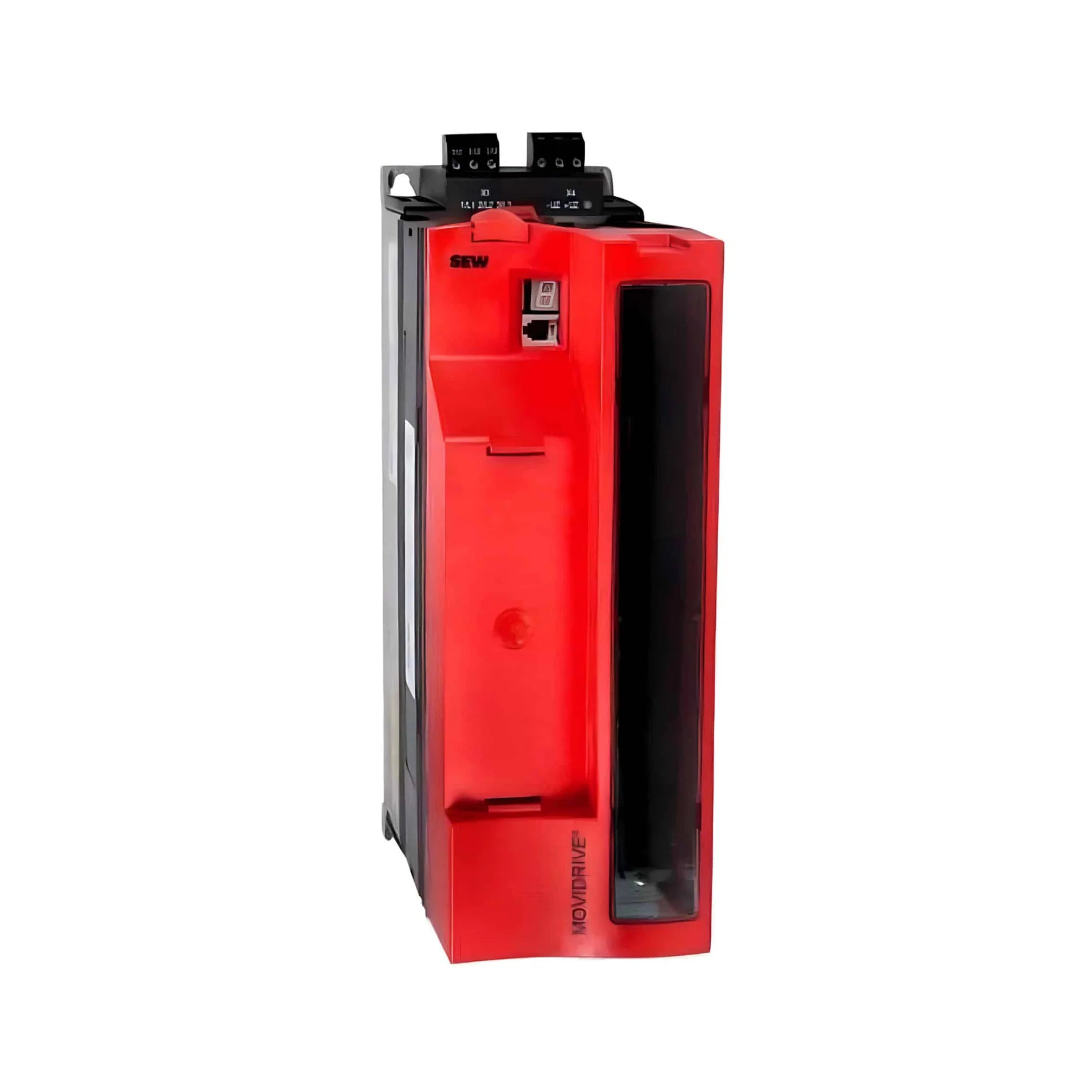

SEW-Eurodrive MDX61B0110-5A3-4-00

Overview

Experience unparalleled power and responsiveness with the SEW-Eurodrive MDX61B0110-5A3-4-00, an exceptional 11 kW inverter drive from the cutting-edge MOVIDRIVE® B series. Meticulously engineered for sophisticated control of asynchronous AC motors, this drive represents the pinnacle of industrial automation technology. Boasting a versatile supply voltage range of 3× 380–500 V AC and a formidable rated output current of 24 A, this unit consistently delivers robust and reliable performance across a myriad of demanding applications. The standard configuration thoughtfully incorporates an integrated brake chopper, ensuring highly efficient and controlled braking operations, critical for dynamic industrial processes. Invest in SEW-Eurodrive's renowned engineering for superior motion control solutions.

Key Features

• Precision Motor Performance: Optimized for an 11 kW (15 HP) motor, providing exacting speed and torque manipulation.
• Broad Voltage Adaptability: Compatible with 3× 380–500 V AC supply voltage, ideal for diverse electrical infrastructures.
• Substantial Output Capability: Delivers a consistent 24 A output current for demanding operational requirements.
• Compact Industrial Footprint: Designed within a Size 2 frame, facilitating efficient space utilization in control cabinets.
• Versatile Control Mechanisms: Supports both V/f (Voltage/Frequency) and VFC (Voltage Flux Control) modes for adaptable motor management.
• Integral Braking Efficiency: Features an integrated brake chopper, enabling comprehensive 4-quadrant operation for enhanced safety and control.
• Environmental Resilience: Rated to IP20 protection class, safeguarding against environmental ingress.
• Optimized Thermal Management: Employs forced air cooling to maintain peak operational temperatures and prolong unit lifespan.
• Expandable Architecture: Modular design readily accommodates a variety of optional communication modules and essential accessories for system integration.
• Authentic Part Identification: Bears the distinct part number MDX61B0110-5A3-4-00 for precise identification and ordering.

Technical Specifications

• Model Identifier: MDX61B0110-5A3-4-00
• Input Voltage Range: 3× 380–500 V AC (with a ±10% tolerance)
• Input Frequency: Operates at 50/60 Hz (with a ±5% tolerance)
• Nominal Output Current: 24 A
• Maximum Output Power: 16.8 kVA
• Adjustable Output Frequency: Ranges from 0 to 400 Hz
• Physical Dimensions (W×H×D): 135 × 315 × 285 mm
• Unit Mass: Approximately 6.6 kg
• Operational Temperature Spectrum: Functions optimally between 0 °C and +50 °C (requires derating when ambient temperatures exceed 40 °C)
• Installation Altitude Guideline: Full performance up to 1000 m; derating guidelines apply for installations above 1000 m.
• Global Certifications: Complies with CE, UL, cUL, GOST-R, and C-Tick standards, affirming international applicability and safety.

Applications

The SEW-Eurodrive MDX61B0110-5A3-4-00 inverter drive is an indispensable component across a broad spectrum of industrial applications where precise motor control and operational reliability are paramount:

• Advanced Material Handling Systems
• High-Speed Packaging Machinery
• Intelligent Conveyor System Operations
• Automated Assembly Lines for Manufacturing
• Critical Pumping and Ventilation Systems
• Sophisticated Textile Manufacturing Equipment

Why Choose This Model?

Selecting the SEW-Eurodrive MDX61B0110-5A3-4-00 signifies a commitment to cutting-edge performance and unwavering reliability in your industrial operations. This particular model combines SEW-Eurodrive’s decades of engineering expertise with innovative design elements to deliver a superior product.

• Unrivaled Motor Control: Specifically optimized to provide highly efficient and responsive control for asynchronous motors, ensuring smooth and precise movements, which translates to enhanced productivity and reduced wear on mechanical components.
• Exceptional Performance Metrics: Engineered to deliver reliable and consistent speed and torque control, even under strenuous conditions, this drive ensures your machinery operates at its peak potential without compromise.
• Seamless Modular Adaptability: Its intelligent modular expandability allows for straightforward integration with a wide array of communication options, making it a flexible solution that can evolve with your system’s needs and future technological advancements.
• Space-Efficient Footprint: The meticulously designed compact form factor ensures optimal space utilization within your control cabinets, simplifying installation and allowing for more streamlined electrical layouts without sacrificing power or functionality.
• Guaranteed Operational Integrity: Backed by SEW-Eurodrive’s reputation for industrial robustness, this drive offers proven long-term reliability and enduring performance in the most challenging industrial environments, minimizing downtime and maximizing return on investment.
