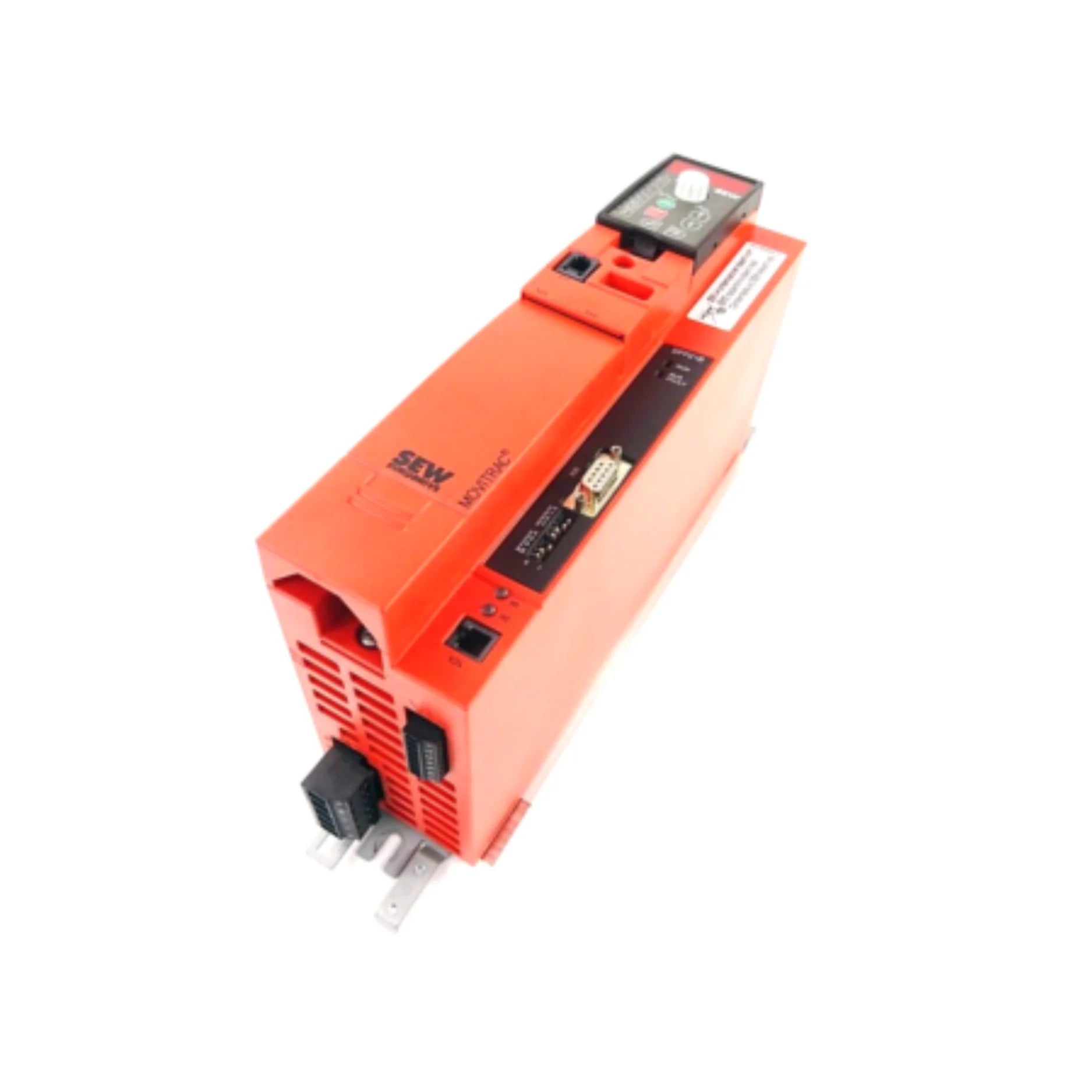

SEW MC07B0040-5A3-4-00

Overview

Unlock enhanced motor performance and efficiency with the SEW MC07B0040-5A3-4-00, a robust 4.0 kW frequency inverter from the acclaimed MOVITRAC® B series. Expertly engineered for asynchronous motor control, this unit stands as a testament to SEW's commitment to industrial innovation. Its streamlined design ensures seamless integration into diverse automation environments, providing steadfast power delivery and flexible control. Ideal for applications demanding reliability within a compact footprint, this inverter masterfully handles 3-phase 380–500V AC inputs, offering superior V/f characteristic control for consistent operational excellence.

Key Features

• Commanding Power Output: Delivers 4.0 kW (equivalent to 5.5 HP) for rigorous industrial motor demands.
• Broad Input Voltage Range: Compatible with 3-phase 380–500V AC electrical systems.
• Flexible Output Voltage: Provides a versatile 0–500V AC output to match varied motor requirements.
• Expansive Frequency Control: Features an impressive 0–400 Hz output frequency modulation for precise speed adjustments.
• Dynamic Control Modes: Supports both V/f (U/f) and meticulously designed linear/square-law characteristics.
• Integrated Thermal Management: Boasts an efficient, built-in fan cooling system ensuring optimal operating temperatures.
• Durable Enclosure Rating: Protected by an IP20 classification, making it suitable for secure panel mounting applications.
• Sophisticated Built-in Intelligence: Includes a comprehensive suite of functions such as a sensitive PID controller, rapid DC braking, 'flying restart' capability, an integral brake chopper, precise limit switch logic, and fully programmable inputs/outputs for unparalleled customization.
• Expandable Communication: Ready for future expansion with optional modules for widespread industrial communication protocols like Profibus, CANopen, and DeviceNet.

Technical Specifications

• Designation: MC07B0040-5A3-4-00
• Nominal Performance Rating: 4.0 kW
• Typical Output Amperage: Approximately 10.5 A
• Adjustable Switching Rate: Fine-tune conversion frequency capabilities, configurable up to 8 kHz.
• Physical Dimensions (Height x Width x Depth): Compact form factor measuring roughly 261 mm x 130 mm x 173 mm.
• Unit Mass: Weighs approximately 3.5 kg, facilitating easy installation.
• Operational Temperature Spectrum: Functions reliably within an ambient range of -10°C to +50°C.
• Global Compliance: Certified to CE, UL, and CSA standards, ensuring international applicability and safety.

Applications

• Material Handling Systems: Optimizes control for conveyor lines and sorting mechanisms.
• Fluid Management: Enhances efficiency in pump and ventilation unit operations.
• Automated Packaging: Perfect for controlling precision in packaging and labeling machinery.
• Light Industrial Processes: Powers various light-duty process automation tasks with stability.
• General Manufacturing Facilities: A versatile solution for a wide array of standard manufacturing equipment.

Why Choose This Model?

• Space-Saving Advantage: Its remarkably compact and sturdy construction makes it an ideal fit for tight industrial cabinet installations.
• Energy Optimization: Experience significant energy savings through intelligent motor control, precisely matching speed curves to application demands.
• Unmatched Versatility: A highly adaptable solution, capable of integrating seamlessly into a diverse ecosystem of automation systems.
• Installer and Maintainer Friendly: Engineered for straightforward installation, intuitive configuration, and minimal maintenance requirements.
• Future-Ready Connectivity: Offers robust expandability via optional fieldbus integration, providing flexible and secure network connections for evolving industrial needs.

Order Now

The high-performance SEW MC07B0040-5A3-4-00 frequency inverter is currently available for immediate dispatch, catering to global shipping requirements. Discover further innovative solutions within our curated collection of SEW-Eurodrive MOVITRAC MC07 Inverters. Should your advanced motion requirements extend beyond this, explore the capabilities of SEW-Eurodrive Servo Drives. For a comprehensive overview of SEW-Eurodrive's full suite of drive and automation systems, we invite you to return to the SEW-Eurodrive Main Category.
