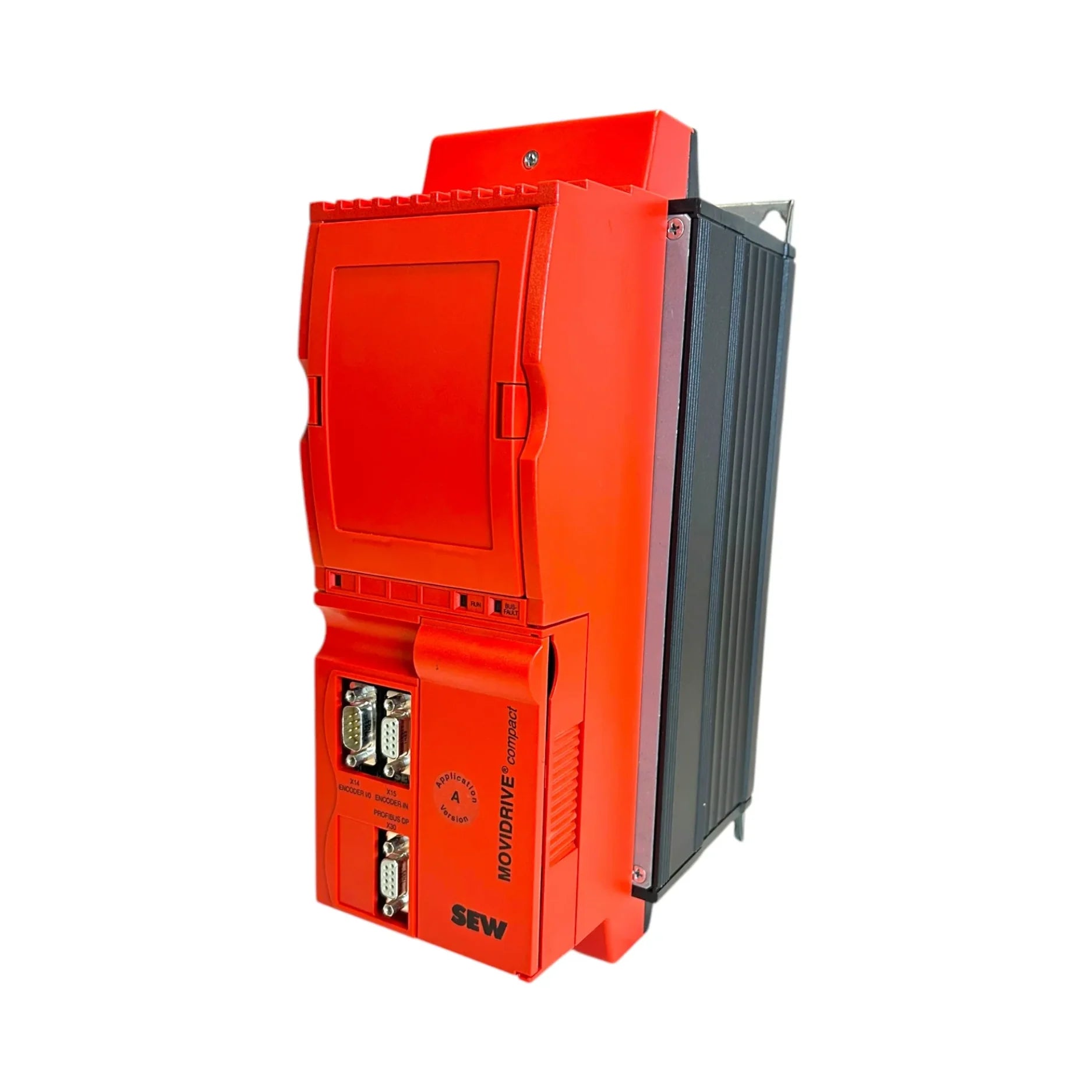

SEW‑EURODRIVE MCV41A0055‑5A3‑4‑00

Overview

The SEW-EURODRIVE MCV41A0055-5A3-4-00 stands as a pinnacle of industrial motor control, an advanced frequency inverter engineered to redefine operational efficiency and precision within demanding automation settings. As part of SEW-EURODRIVE's acclaimed MOVIDRIVE® series, this robust unit meticulously delivers a powerful 5.5 kW, operating flawlessly within a 400 V three-phase electrical environment. It's meticulously crafted for dynamic applications requiring either sophisticated sensorless vector control or the absolute accuracy of encoder-based feedback. This inverter is the cornerstone for systems where responsive performance, meticulous motion control, and unwavering reliability are non-negotiable, ensuring seamless integration into intricate machinery and production lines.

Key Features

• Peak Power Output: Provides a sustained 5.5 kW of power, capable of driving a wide array of industrial motors with exceptional efficiency.
• Versatile Voltage Compatibility: Designed for seamless operation on a 400 V three-phase supply, optimizing energy distribution and motor performance.
• Advanced Vector Control: Boasts both sensorless and encoder-based vector control capabilities, offering unparalleled precision and dynamic response for diverse application requirements.
• Integrated Braking Solution: Features a built-in brake chopper, facilitating rapid and efficient deceleration of motors, crucial for safety and operational speed.
• Flexible Modular Architecture: Engineered with a modular design, ensuring straightforward integration and adaptability within complex system configurations.
• User-Friendly Configuration: Parameterization is streamlined through MOVITOOLS®, enabling intuitive setup and fine-tuning for optimal performance.
• Extensive Fieldbus Support: Guarantees effortless communication and compatibility with popular industrial networks including PROFIBUS, CANopen, and EtherNet/IP.

Technical Specifications

• Rated Power: 5.5 kW
• Input Voltage: 3× 400 V AC
• Control Type: Vector control (operates with or without encoder feedback)
• Frequency Output Range: 0–400 Hz
• Protection Level: IP20 (protection against solid objects over 12.5mm, no water protection)
• Cooling Mechanism: Integrated forced-air fan for continuous thermal management
• Brake Chopper: Internal, for direct braking resistor connection
• Supported Fieldbuses: PROFIBUS, CANopen, EtherNet/IP
• Programming Interface: MOVITOOLS® MotionStudio software suite

Applications

The MCV41A0055-5A3-4-00 frequency inverter is engineered for deployment in a myriad of challenging industrial scenarios, providing robust and precise motor control where it matters most:

• Material Handling Systems: Ideal for sophisticated heavy-duty conveyor belts, precise lift mechanisms, and automated storage and retrieval systems.
• Packaging Automation: Essential for high-speed positioning, indexing, and synchronization tasks within modern packaging lines, ensuring consistent and accurate output.
• Textile and Printing Machinery: Drives the intricate movements and precise tension control required in advanced textile manufacturing and high-fidelity printing processes.
• Robotics and Assembly: Critical for robotic cells demanding exacting torque control and repeatable positioning for delicate or heavy assembly operations.
• Dynamic Process Control: Perfectly suited for applications demanding frequent and precise start-stop cycles, rapid speed changes, and exceptional responsiveness in variable-speed systems.

Why Choose This Model?

Selecting the SEW-EURODRIVE MCV41A0055-5A3-4-00 means investing in an unparalleled blend of performance, adaptability, and long-term reliability. Its 5.5 kW power delivery is matched with industrial-grade robustness, guaranteeing consistent operation even in the most strenuous environments. The inverter's inherent flexibility, supporting both sensorless and encoder-based feedback, ensures optimal control across a broad spectrum of motor types and application complexities. Furthermore, its designed-in compatibility with existing SEW automation networks simplifies integration, minimizing downtime and maximizing operational continuity. With energy-efficient braking and sublime motion precision, this model not only enhances productivity but also contributes to reduced operational costs. It is the definitive choice for any industrial application where high-demand motor control and unwavering accuracy are paramount.

Order Now

Elevate your industrial automation capabilities with the SEW-EURODRIVE MCV41A0055-5A3-4-00 frequency inverter. Opt for this sophisticated solution to achieve uncompromised precision, seamless integration, and peak performance in your most demanding operational environments. Explore the comprehensive range of SEW-EURODRIVE Servo Drives and the full collection of SEW-Eurodrive MOVIDRIVE Compact MCV Drives to discover superior solutions for all your industrial automation requirements.
