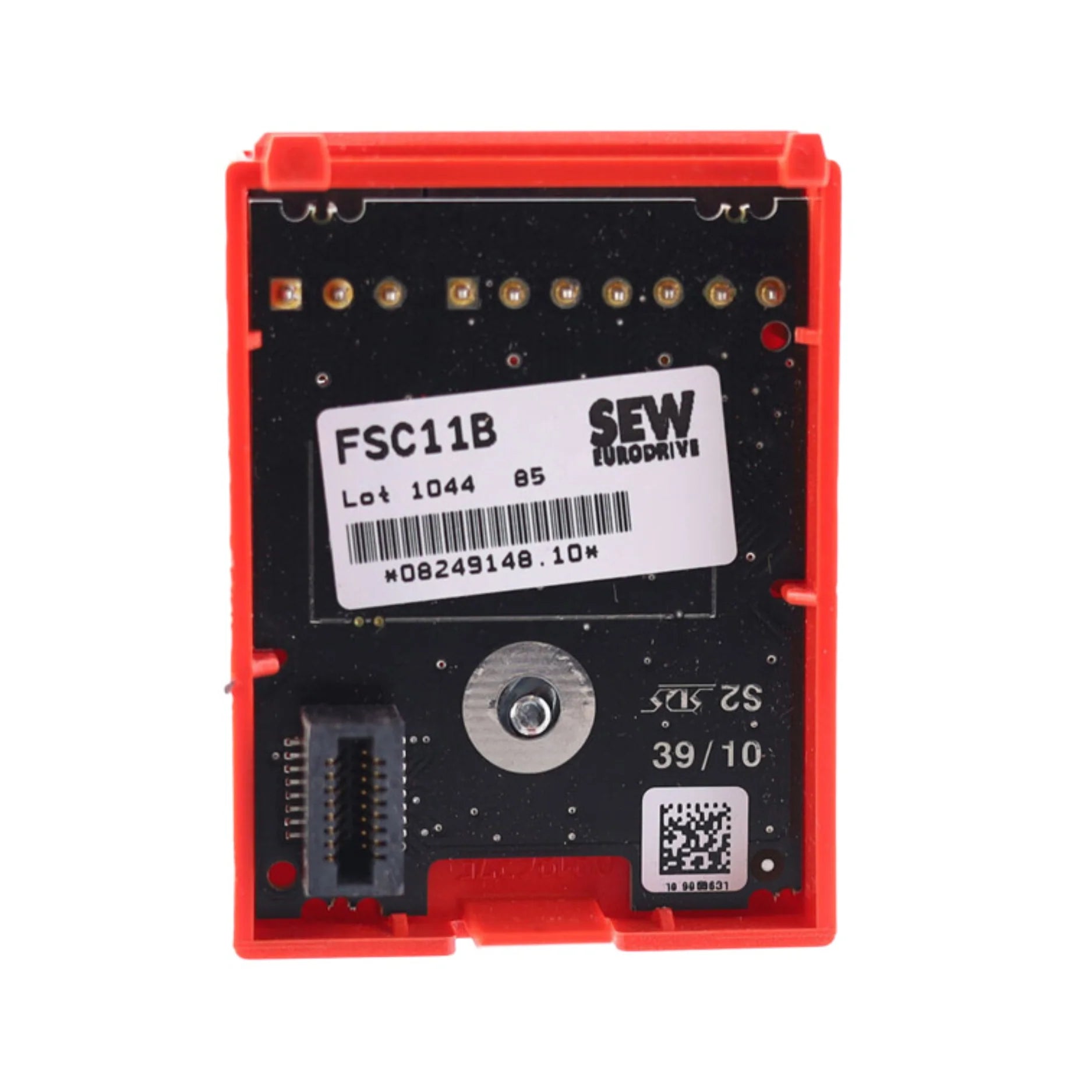

SEW-Eurodrive FSC11B

Overview

The SEW-Eurodrive FSC11B stands as a pivotal communication interface module engineered to significantly broaden the network capabilities of MOVITRAC® B series frequency inverters. This essential component integrates both RS-485 and a CAN-based system bus (SBus), empowering seamless digital communication with Programmable Logic Controllers (PLCs), personal computers, and various other automation components within diverse industrial environments. Experience enhanced control and data exchange, crucial for optimizing modern operational efficiency.

Key Features

• Integrated RS-485 Port: Facilitates reliable serial data exchange with a multitude of PLCs and compatible industrial devices.
• CAN-based SBus Mastery: Supports both the high-performance MOVILINK® protocol and the versatile CANopen standard for advanced networked communication architectures.
• Dedicated Service Interface (X44): Features an RJ10 connector, offering convenient access for system diagnostics and maintenance operations.
• Optimized Form Factor: Designed for direct, hassle-free integration and mounting onto existing MOVITRAC® B drives, ensuring efficient space utilization.
• Manufacturer Part Number: Identified as 18207162, ensuring precise product identification and compatibility.

Technical Specifications

• RS-485 Terminal Connections (X45):
  • ST11: RS-485+
  • ST12: RS-485–
  • GND: Reference potential
• System Bus Connections (X46):
  • SC11/SC12: SBus high/low
  • SC21/SC22: SBus high/low
  • GND: Reference potential
  • 24VIO: Auxiliary/external voltage supply
• Maximum Permissible Cable Lengths:
  • RS-485: Up to 200 meters for extensive network layouts.
  • SBus (CAN-based):
    • 125 kBaud: 320 m
    • 250 kBaud: 160 m
    • 500 kBaud: 80 m
    • 1000 kBaud: 40 m
• Terminating Resistor: Integrated 120 Ω resistor, conveniently activatable via an onboard DIP switch for signal integrity.
• Operating Temperature Range: Certified for robust performance from –10 °C to +60 °C, suitable for demanding industrial environments.
• Protection Class: Rated IP20, providing protection against solid objects larger than 12.5mm.
• Mounting Mechanism: Engineered for direct and secure installation onto MOVITRAC® B frequency inverters.

Applications

• Advanced Industrial Automation Setups
• Precision Material Handling Systems
• High-Speed Packaging Machinery
• Sophisticated Conveyor Line Operations
• Complex Process Control Architectures

Why Choose This Model?

Opting for the SEW-Eurodrive FSC11B means investing in superior connectivity and control for your automation infrastructure. This module is not merely an accessory; it's a strategic upgrade that:

• Expands Communication Horizons: Unleashes additional interface options, seamlessly integrating MOVITRAC® B drives into intricate and distributed automation networks.
• Ensures Protocol Flexibility: Offers broad compatibility with key protocols like MOVILINK® and CANopen, crucial for diverse system interoperability.
• Guarantees Effortless Integration: Engineered for straightforward installation directly onto your existing drives, minimizing downtime and installation complexities.
• Delivers Unwavering Reliability: Built to SEW-Eurodrive's rigorous standards, promising consistent and dependable operation even in the most challenging industrial conditions.
• Reinforces Brand Trust: Backed by SEW-Eurodrive, a global leader synonymous with innovation, quality, and engineering excellence in drive technology.

Order Now

Elevate your industrial communication capabilities today. Secure your SEW-Eurodrive FSC11B communication interface module to ensure optimized control and unprecedented connectivity for your MOVITRAC® B frequency inverters. Contact us or place your order to experience enhanced operational efficiency and system integration.
