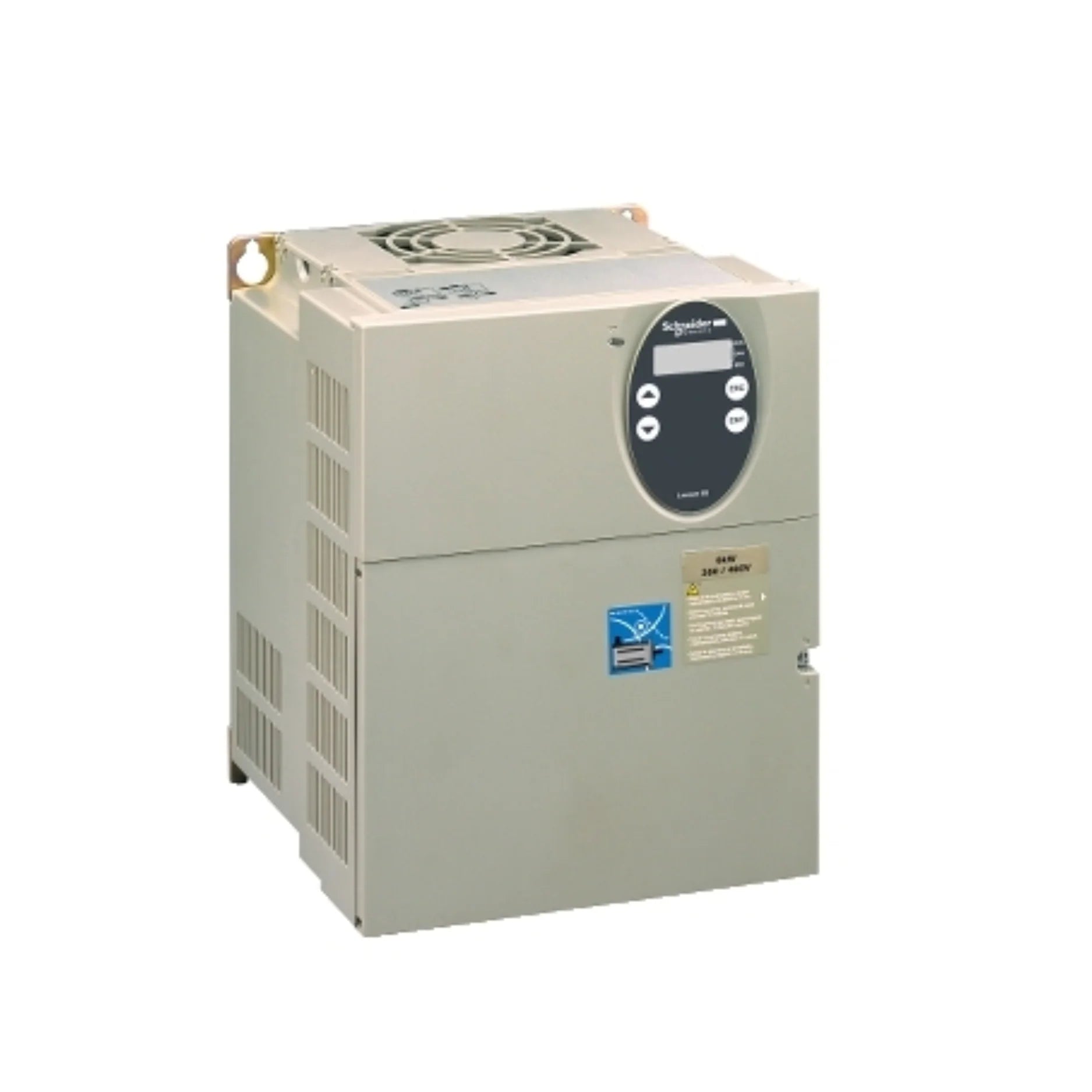

Schneider LXM05AD22N4

Overview

Elevate your industrial automation with the Schneider Electric LXM05AD22N4, a distinguished motion servo drive from the renowned Lexium 05 series. Engineered for precision and robust performance, this unit delivers a formidable 2 kW of power at 4 kHz while seamlessly integrating an EMC filter for impeccable operation. Its compact design belies its capabilities, offering an optimal blend of reliability, safety, and flexible communication options essential for demanding applications.

The LXM05AD22N4 operates efficiently on a three-phase 380–480 V supply, and its integrated safety inputs (SIL2 / PL d compliant) underscore a commitment to operational security. With support for multiple communication protocols, including CANopen, CANopen Motionbus, and Modbus, this servo drive ensures effortless integration into diverse industrial networks. Built with advanced diagnostic tools, comprehensive protection features, and a rugged construction, the LXM05AD22N4 stands as a premier solution for sectors ranging from intricate packaging to high-speed machine tooling.

Key Features

• Powerful 2 kW output at 4 kHz for dynamic motion control
• Sustained output currents: 7 A at 8 kHz and 9 A at 4 kHz
• Impressive transient output current of 14–16 A for 3 seconds
• Flexible 380–480 V, 3-phase power supply compatibility
• Integrated EMC filter for clean and stable electrical operation
• Dual safety inputs (SIL2, PL d compliant) for enhanced operational security
• Versatile communication suite: CANopen, Modbus, and CANopen Motionbus
• Comprehensive I/O: 4 logic inputs, 2 safety inputs, and 2 logic outputs
• High-resolution analog inputs: 2 differential, ±10 V with 14-bit precision
• Integrated 7-segment display for immediate fault and status diagnostics
• Space-saving design with IP20/IP41 environmental protection
• Lightweight profile at just 2 kg for easy installation

Technical Specifications

• Product Categorization: Motion Servo Drive
• Product Family: Lexium 05
• Specific Model Designation: LXM05AD22N4
• Rated Power Output: 2 kW (at 4 kHz switching frequency)
• Continuous Current Capacity: 7 A (at 8 kHz), 9 A (at 4 kHz)
• Peak Transient Current: 14–16 A, sustained for up to 3 seconds
• Input Voltage Range: 380–480 V AC, 3-phase (with a tolerance of +15% / -10%)
• Operating Frequency: 50/60 Hz (functional range of 47.5–63 Hz)
• Switching Frequency Options: 4 kHz / 8 kHz
• Supported Communication Protocols: CANopen, CANopen Motionbus, Modbus
• Integrated Safety Functions: SIL2, PL d (conforming to IEC 61800-5-2, ISO 13849-1, IEC 61508 standards)
• Environmental Protection Rating: IP20/IP41 (contingent on installed cover type)
• Cooling Method: Integrated Fan cooling system
• Operational Temperature Range: 0…50 °C
• Storage Temperature Range: –25…70 °C
• Relative Humidity Tolerance: 5–93 % (non-condensing environment)
• Vibration Resistance: 1 gn (across 13–150 Hz)
• Shock Resistance: 15 gn (for an impulse duration of 11 ms)
• Unit Weight: 2 kg

Applications

The Schneider Electric LXM05AD22N4 is a versatile solution, perfectly suited for optimizing performance across a broad spectrum of industrial applications, including:

• Advanced packaging machinery requiring precise and repeatable movements
• Sophisticated conveyor and material handling systems for seamless logistics
• High-performance machine tools demanding accuracy and reliability
• Robotics and intricate automation cells where absolute control is paramount
• Printing and textile machinery, ensuring consistent and flawless production

Why Choose This Model?

Opting for the Schneider Electric LXM05AD22N4 means investing in a legacy of engineering excellence and innovation. This servo drive is not merely a component; it's a cornerstone for systems demanding unwavering precision, robust safety features, and broad connectivity. Its ability to deliver 2 kW of power with integrated EMC filtering ensures both efficiency and operational stability, minimizing potential electromagnetic interference. The comprehensive range of safety functions (SIL2 / PL d) provides peace of mind, while multi-protocol communication capabilities simplify integration into existing and new setups. For businesses prioritizing uptime, accuracy, and long-term reliability in their motion control solutions, the LXM05AD22N4 presents an indispensable choice that drives productivity and reduces operational complexity.

Order Now

Secure the competitive edge for your industrial operations. The high-performance Schneider Electric LXM05AD22N4 Lexium 05 Motion Servo Drive is readily available for swift and dependable worldwide shipping. Enhance your systems today with this cutting-edge motion control solution.
