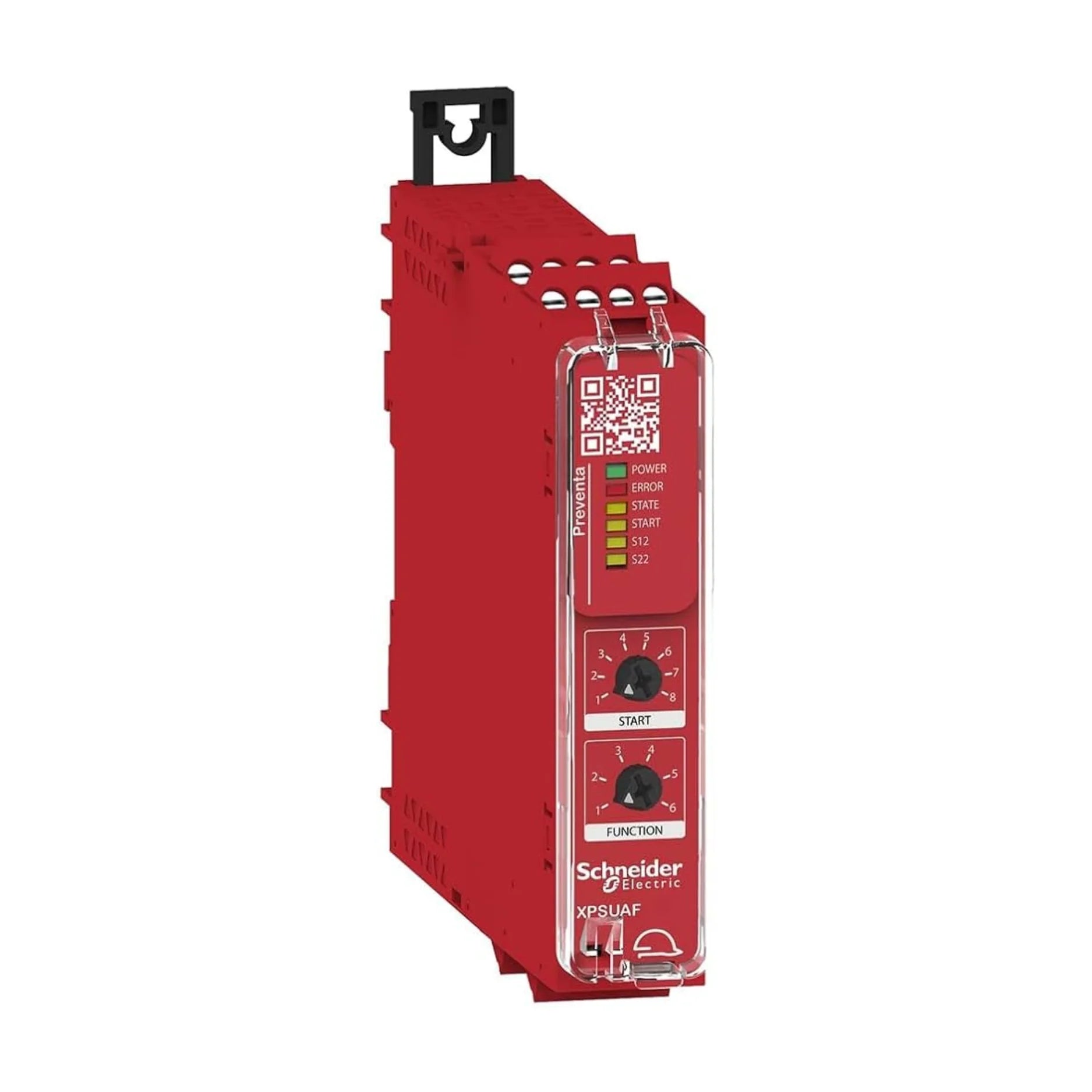

Schneider Electric XPSUAF13AP

Overview

Unlock superior machine protection with the Schneider Electric XPSUAF13AP, a state-of-the-art safety relay module engineered for demanding industrial environments. Part of the renowned Preventa XPS Universal series, this critical component is purpose-built to safeguard personnel and equipment in applications such as emergency stop circuits, interlocking safety gates, and sophisticated two-hand control systems. Operating seamlessly on a 24V DC power supply, the XPSUAF13AP delivers three normally open (N/O) safety outputs for direct control of safety functions, complemented by one normally closed (N/C) auxiliary signaling output. This versatile configuration ensures robust and compliant safety integration, maintaining operational integrity and minimizing risks within your industrial infrastructure.

Key Features

• Input Power: Reliable 24V DC power compatibility for diverse industrial setups.
• Contact Configuration: Boasts 3 N/O safety contacts for primary protective circuits and 1 N/C auxiliary signaling contact for status indication or non-safety functions.
• Input Monitoring: Advanced dual-channel monitored inputs provide heightened diagnostic capabilities and fault detection.
• Reset Flexibility: Configurable reset modes, including manual or automatic, adaptable via simple wiring adjustments to suit specific application needs.
• Diagnostic Visibility: Integrated LED indicators offer clear, real-time status updates for power, input signals, and output activation.
• Mounting: Designed for effortless installation on standard DIN rails, optimizing cabinet space and simplifying integration.

Technical Specifications

• Model Identifier: XPSUAF13AP
• Product Series: Preventa XPS Universal
• Rated Insulation Voltage: Secure 250V protection to ensure electrical isolation.
• Contact Rating:
  • 6 A at 230V AC (for resistive loads)
  • 5 A at 24V DC
• Response Time: Rapid reaction time of ≤ 20 ms for immediate safety response.
• Electrical Durability: Exceeds 100,000 operations at rated load, guaranteeing a long operational lifespan.
• Protection Rating: IP20 for housing integrity, and IP40 when mounted, for enhanced front panel protection.
• Operational Temperature Range: Resilient performance from -10°C to +55°C.
• Physical Dimensions (W x H x D): Compact form factor of 22.5 mm x 99 mm x 114 mm.
• Mass: Approximately 160 grams, contributing to a lightweight panel design.

Applications

• Critical emergency stop command monitoring systems.
• Interlocking and safeguarding of safety doors, gates, and protective enclosures.
• Precise control and monitoring for two-hand operating devices.
• Achieving overall machine safety compliance across various industrial sectors.
• Integration into process control systems requiring dependable safety interlocking.

Why Choose This Model?

The Schneider Electric XPSUAF13AP stands out as an exceptional choice for modern industrial safety requirements. Its remarkably compact design belies its robust capabilities, offering a space-efficient yet highly effective safety solution. The combination of multiple dedicated safety outputs and an auxiliary signaling output provides unparalleled flexibility for complex safety architectures, allowing for comprehensive control and monitoring. With its inherent dual-channel monitoring, this module delivers elevated diagnostic oversight, significantly boosting the integrity and reliability of your safety circuits. Opting for the XPSUAF13AP means investing in a proven solution from a global leader, ideal for ensuring the unwavering protection of machinery and personnel within any safety-critical application.
