Schneider Electric VW3A1113

Overview

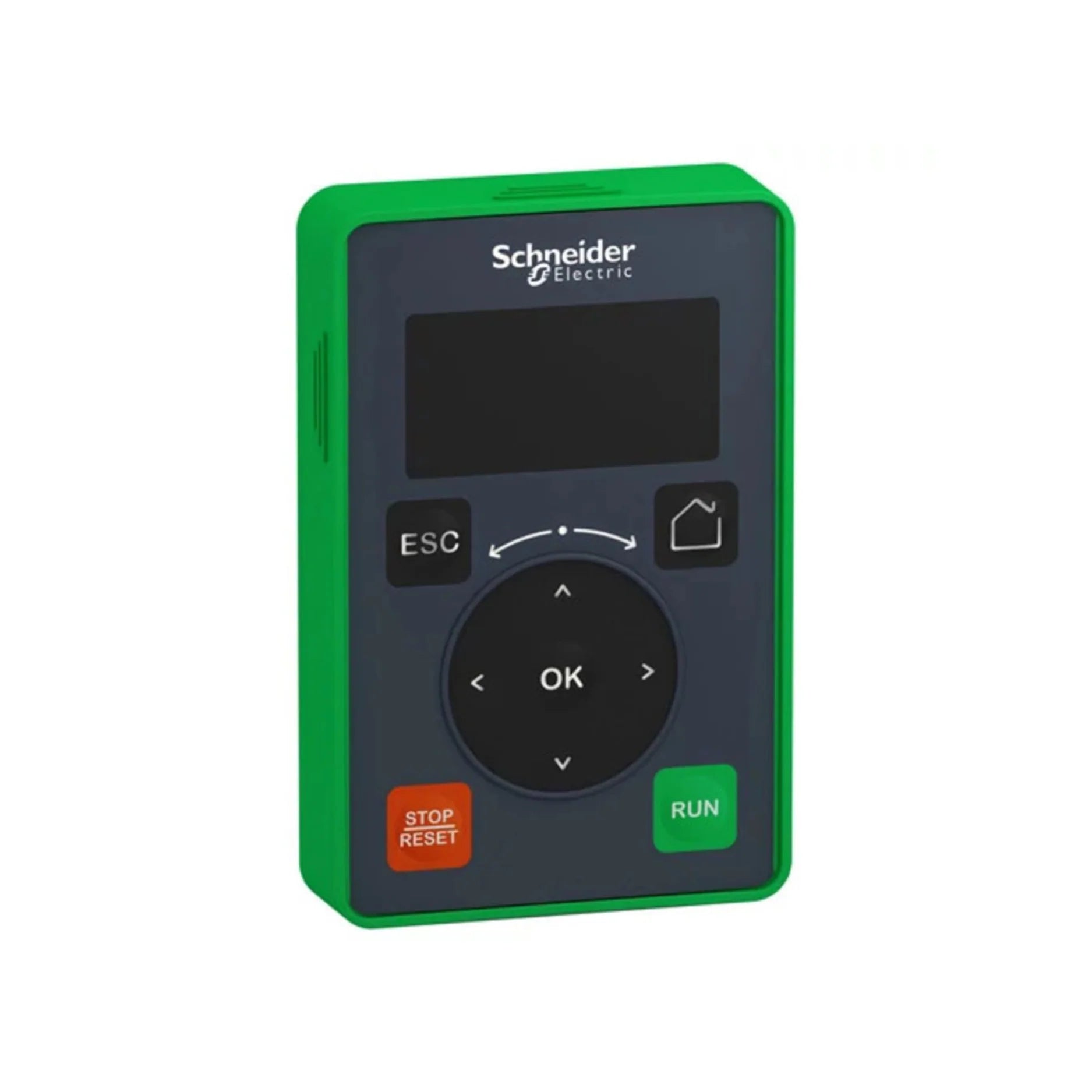

Elevate your motor control experience with the Schneider Electric VW3A1113, a sophisticated remote graphic display terminal meticulously engineered for seamless integration with a wide spectrum of Altivar variable speed drives. This essential device empowers operators with unparalleled remote access, facilitating precise configuration, real-time operational oversight, and comprehensive diagnostic capabilities for your drive systems. Shipped complete with a robust 1-meter connection cable, the VW3A1113 is purpose-built for secure, front-panel mounting, transforming complex drive management into an intuitive and highly accessible process within demanding industrial environments. Its intelligent design not only streamlines maintenance procedures but also significantly enhances overall operational efficiency by putting critical drive data at your fingertips.

Key Features

• Vivid Backlit LCD Display: Experience crystal-clear information display, ensuring readability in various lighting conditions for optimal user interaction.
• Comprehensive Drive Control & Monitoring:
  • Parameter Mastery: Effortlessly read and write vital drive parameters, allowing for precise adjustments and configuration changes from a distance.
  • Real-time Status Acquisition: Gain immediate insight into drive operational status and quickly identify any fault conditions for rapid response.
  • Intuitive Navigation System: Navigate complex menus swiftly and confidently using the integrated keypad, simplifying setup and troubleshooting.
• Integrated 1-Meter Connection Cable: Supplied with a generous 1-meter cable, providing ample length for flexible installation and remote positioning.
• Flexible Mounting Solutions:
  • Robust Door/Panel Mounting: Designed for secure and flush integration into control panel doors, offering a neat and professional finish.
  • Enclosure-Independent Access: Facilitates convenient remote access to drive functions, eliminating the need to open electrical enclosures for routine tasks.
• Ergonomic Navigation Keypad: Features dedicated arrow keys, an 'OK' confirmation button, an 'ESC' key for exiting, and menu-specific navigation controls for intuitive operation.
• Direct Drive Power Sourcing: Operates efficiently without external power, drawing its power directly from the Altivar drive via the RJ45 connection for simplified wiring.

Technical Specifications

• Model Identifier: VW3A1113
• Drive Compatibility Range: Fully compatible with a broad array of Altivar series drives, including Altivar 12, 212, 312, 32, 61, 71, 340, 630, and 930.
• Connectivity Interface: Utilizes a standard RJ45 port for reliable and high-speed communication with the drive.
• Display Technology: High-contrast LCD screen, presenting information in a clear textual format complemented by intuitive navigation keys.
• Operational Temperature Range: Certified for reliable performance across a ambient temperature spectrum of -10°C to +50°C.
• Environmental Protection: Achieves an IP54 protection rating when correctly installed on a panel, ensuring resistance against dust ingress and splashing water.
• Compact Physical Dimensions (W x H x D): Approximately 72 mm x 72 mm x 35 mm, designed for efficient use of panel space.
• Lightweight Construction: Weighs approximately 0.2 kg, simplifying handling and installation.

Applications

• Advanced Drive Configuration within Control Panels: Perfect for setting up and fine-tuning Altivar drives installed within centralized control systems.
• Dedicated Operator Interfaces for Motor Drives: Functions as a primary user interface, providing operators with direct control and visibility over connected drives.
• Efficient Remote Fault Diagnosis and Performance Monitoring: Enables technicians to troubleshoot issues and monitor drive performance without direct access to the drive unit, enhancing safety and productivity.
• Integrated Solutions for Industrial Automation Systems: A crucial component for seamless integration into larger automation architectures, offering centralized control and data access.

Why Choose This Model?

The Schneider Electric VW3A1113 stands out as an indispensable tool for modern industrial applications, offering a compelling blend of features and benefits:

• Unobstructed Remote Access to Drives: Gain unparalleled convenience by managing and monitoring your Altivar drives from a remote location, optimizing operational workflow.
• Simplified Navigation and Intuitive Display: Its user-friendly interface and bright display minimize learning curves, ensuring quick and efficient operation for all users.
• Optimized for Panel Door Integration: Specifically engineered for easy and aesthetically pleasing door mounting within control panels, maximizing accessibility and saving valuable internal enclosure space.
• Catalyst for Enhanced Drive Efficiency: By facilitating quicker diagnostics and precise parameter adjustments, it dramatically improves the operational efficiency and troubleshooting speed of your drive systems.
• Robust and Reliable Schneider Electric Quality: Trust in the renowned durability and performance of Schneider Electric products, ensuring long-term, dependable operation in demanding industrial environments.
