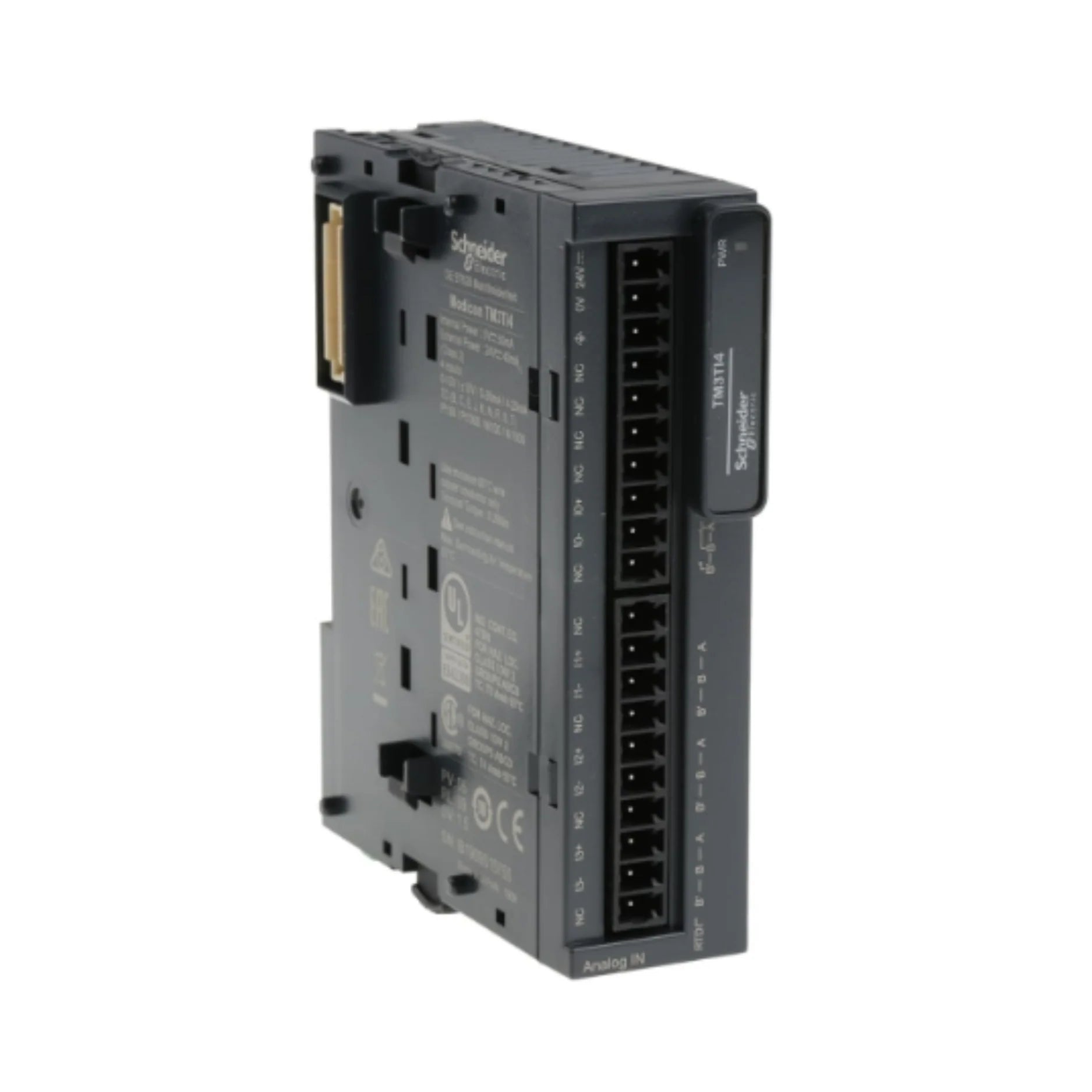

Schneider Electric TM3TI4

Overview

Elevate your industrial automation with the Schneider Electric TM3TI4, a sophisticated 4-channel analog input module engineered for exceptional temperature sensing. As a vital component of the Modicon TM3 expansion family, the TM3TI4 provides a robust interface for a wide array of temperature sensors, delivering unparalleled accuracy in thermal data acquisition for demanding operational environments.

Designed for seamless integration with Schneider Electric's Modicon M221, M241, and M251 Programmable Logic Controllers, this module ensures reliable and high-resolution measurement, making it an indispensable asset for critical temperature-dependent processes.

Key Features

• Multi-Channel Input: Equipped with four independent analog input channels for extensive thermal coverage.
• Universal Sensor Compatibility: Supports a broad spectrum of sensor types, including:
• Thermocouples (J, K, T, S, R, B, E, N)
• Resistance Temperature Detectors (RTDs) (Pt100, Pt1000, Ni100, Ni1000)
• High-Fidelity Resolution: Achieves precise readings with 16-bit (15-bit + sign) resolution, ensuring granular control and data integrity.
• Adaptable Input Range: Offers configurable input ranges to perfectly match the specifications of your chosen sensor types.
• Optimized Power Management: Operates efficiently on a standard 24V DC power supply.
• Effortless Connectivity: Features removable screw terminals, simplifying wiring and maintenance procedures.
• Enhanced Isolation: Provides 500V AC isolation between channels and internal logic, safeguarding system integrity and reliability.

Technical Specifications

• Model Designation: TM3TI4
• Product Line: Modicon TM3 Series
• Input Impedance:
• Thermocouples: Exceeds 1 MΩ
• RTDs: 10 Ω per wire
• Conversion Speed: Achieves a rapid 250 ms conversion time per channel.
• Measurement Accuracy: Maintains an exceptional accuracy of ±0.1% of full scale.
• Current Consumption:
• 45mA at 5V DC via bus connector
• 35mA at 24V DC via external supply
• Environmental Protection: Rated IP20 for demanding industrial environments.
• Operational Temperature Range: Functions flawlessly from 0°C to +55°C.
• Physical Dimensions (W x H x D): Compact at 23.6 mm x 90 mm x 70 mm.
• Module Weight: Approximately 0.11 kg.

Applications

• Intricate Industrial Temperature Monitoring systems
• Advanced Process Control Systems requiring precise thermal regulation
• Comprehensive HVAC Systems management
• Critical Food and Beverage Processing applications
• Pharmaceutical manufacturing and climate control

Why Choose the Schneider Electric TM3TI4?

The TM3TI4 stands out as a superior choice for a multitude of reasons:

• Unrivaled Sensor Versatility: Adapts to a vast array of temperature sensor types, offering unparalleled flexibility for diverse measurement requirements.
• Exceptional Resolution: Delivers high-resolution data acquisition, enabling the most precise and responsive control over your processes.
• Seamless System Integration: Effortlessly integrates with your existing Modicon TM3-compatible PLCs, streamlining your automation architecture.
• Space-Saving Design: Its compact form factor and simple installation make it ideal for efficient panel mounting, even in constrained spaces.
• Industrial-Grade Reliability: Built with Schneider Electric's renowned quality, ensuring long-term performance and durability in harsh industrial settings.

Order Now

Secure your Schneider Electric TM3TI4 today and enhance your thermal monitoring capabilities. Benefit from our efficient shipping and comprehensive worldwide delivery services.

Explore our extensive collection of Schneider Electric Modicon TM3 Expansion I/O Modules for complementary solutions. Further optimize your industrial operations by discovering our complete range of Schneider Electric PLCs, offering scalable, flexible, and utterly reliable automation solutions for every industrial challenge.
