Schneider Electric TM3DQ8R

Overview

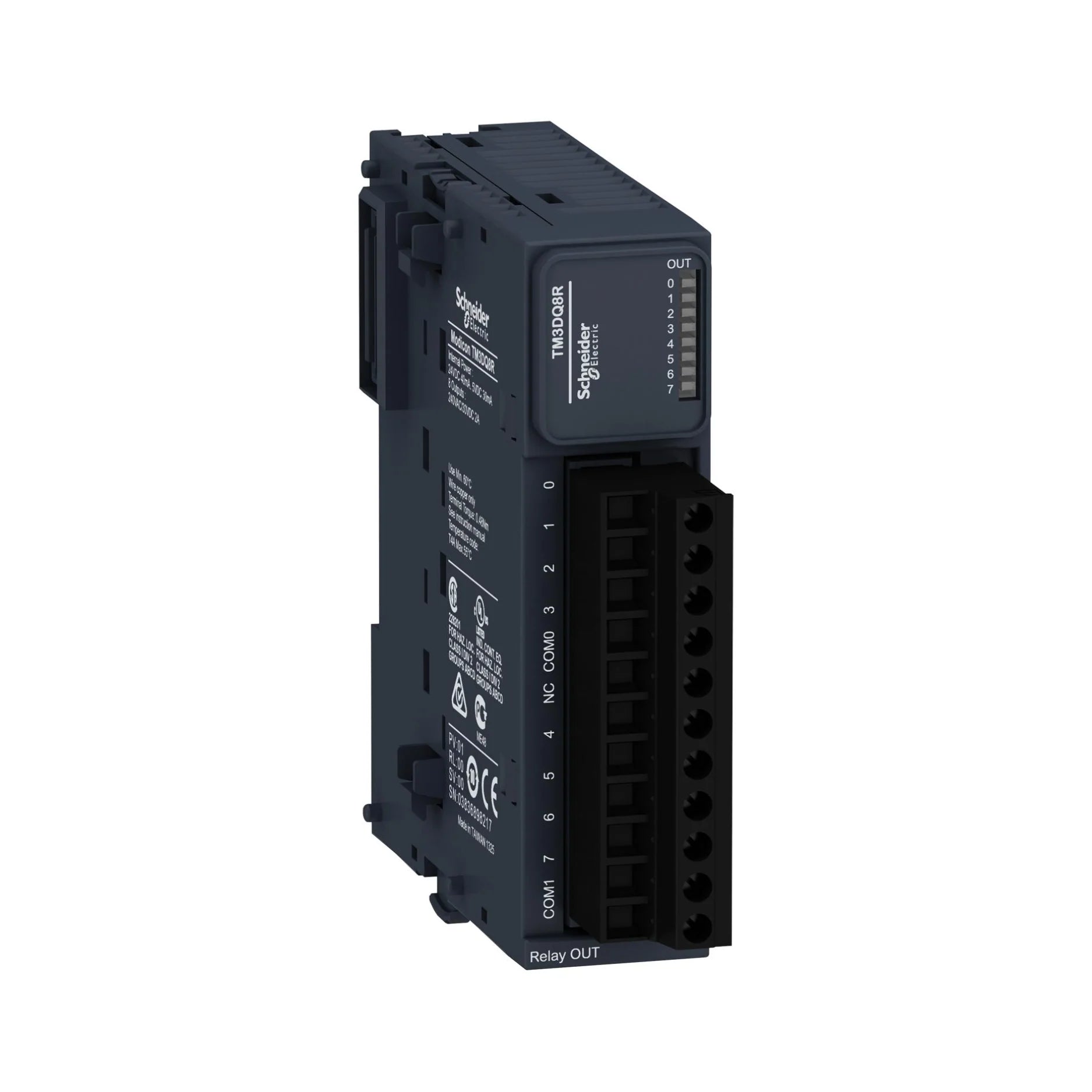

Unlock robust and reliable control within your industrial automation frameworks with the Schneider Electric TM3DQ8R digital output module. Expertly engineered for seamless integration into Modicon TM3 programmable logic controllers (PLCs), this 8-channel relay output module provides crucial isolation and switching capabilities. Its design prioritizes safety and performance, making it an indispensable component for managing a diverse array of industrial actuators and loads requiring precise relay-based control. As a vital part of the acclaimed Modicon TM3 expansion series, the TM3DQ8R stands ready to enhance the functionality and reach of your existing automation infrastructure.

Key Features

• Eight Independent Relay Outputs: Facilitates control over multiple devices with distinct switching operations.
• Form C Relay Configuration: Offers versatile normally open (NO) and normally closed (NC) contacts for diverse application requirements.
• 24V DC Control Signal Compatibility: Designed for standard industrial operational voltages, ensuring broad compatibility.
• 2A Maximum Output Current: Capable of managing resistive loads up to 2 amps per individual output channel.
• Enhanced 1500V Isolation: Provides critical electrical separation between channels and logic, safeguarding your system and personnel.
• Effortless DIN Rail Mounting: Ensures quick and secure installation within standard industrial enclosures.
• Removable Screw Terminal Block: Simplifies wiring, maintenance, and system upgrades for operational efficiency.
• Optimized Compact Form Factor: Maximizes panel space utilization, crucial in crowded industrial environments.

Technical Specifications

• Model Identifier: TM3DQ8R
• Product Series: Modicon TM3
• Output Channel Count: 8 relay channels
• Relay Mechanism: Electromechanical, Form C
• Nominal Operating Voltage: 24V DC
• Peak Current Capacity: 2A per channel (for resistive loads)
• Minimum Load Requirement: 10 mA at 5V DC
• Isolation Voltage: 1500V between logic and output circuits
• Installation Method: DIN rail affixation
• Ingress Protection Rating: IP20
• Operational Temperature Range: 0°C to +55°C
• Storage Temperature Range: -40°C to +85°C
• Dimensions (Approximate): 23.6 mm (Width) x 70 mm (Depth) x 90 mm (Height)
• Unit Mass (Approximate): 0.14 kg

Applications

• Precision Industrial Automation: Seamlessly manage the activation and deactivation of actuators, solenoids, and other crucial components in manufacturing and processing lines.
• Integrated Building Management: Extend control to lighting systems, HVAC components, access control mechanisms, and more, enhancing facility efficiency.
• Advanced Machine Control: Command motors, valves, pumps, and activate alarms with confidence, ensuring reliable machine operation and safety protocols.
• Diverse Process Systems: Establish secure interfaces with a wide array of field equipment that necessitates dependable relay outputs for operational integrity.

Why Choose This Model?

The Schneider Electric TM3DQ8R module is not just an expansion unit; it's a foundation for enhanced control and system reliability. Its robust 1500V isolation ensures that sensitive control logic remains protected, while the high-current 2A relay outputs confidently manage demanding industrial loads. Integration into existing Modicon TM3 setups is remarkably straightforward, offering a plug-and-play experience that minimizes downtime and simplifies system upgrades. Designed with the rigors of industrial environments in mind, this durable and compact module promises long-term, stable performance. Opting for the TM3DQ8R means investing in a solution that brings both sophisticated control and enduring quality to your automation projects, offering peace of mind and operational excellence.

Order Now

Ready to elevate your control capabilities? The Schneider Electric TM3DQ8R is available for dispatch to locations worldwide, ensuring that your critical automation needs are met wherever you operate. Contact us today to learn more about compatible Modicon TM3 PLCs, additional expansion modules, and a full suite of accessories to construct your comprehensive control infrastructure. Explore our extensive catalog of Schneider Electric PLCs and discover flexible, scalable, and supremely reliable automation solutions designed for the most challenging industrial applications.
