Schneider Electric TM3DQ16T

Overview

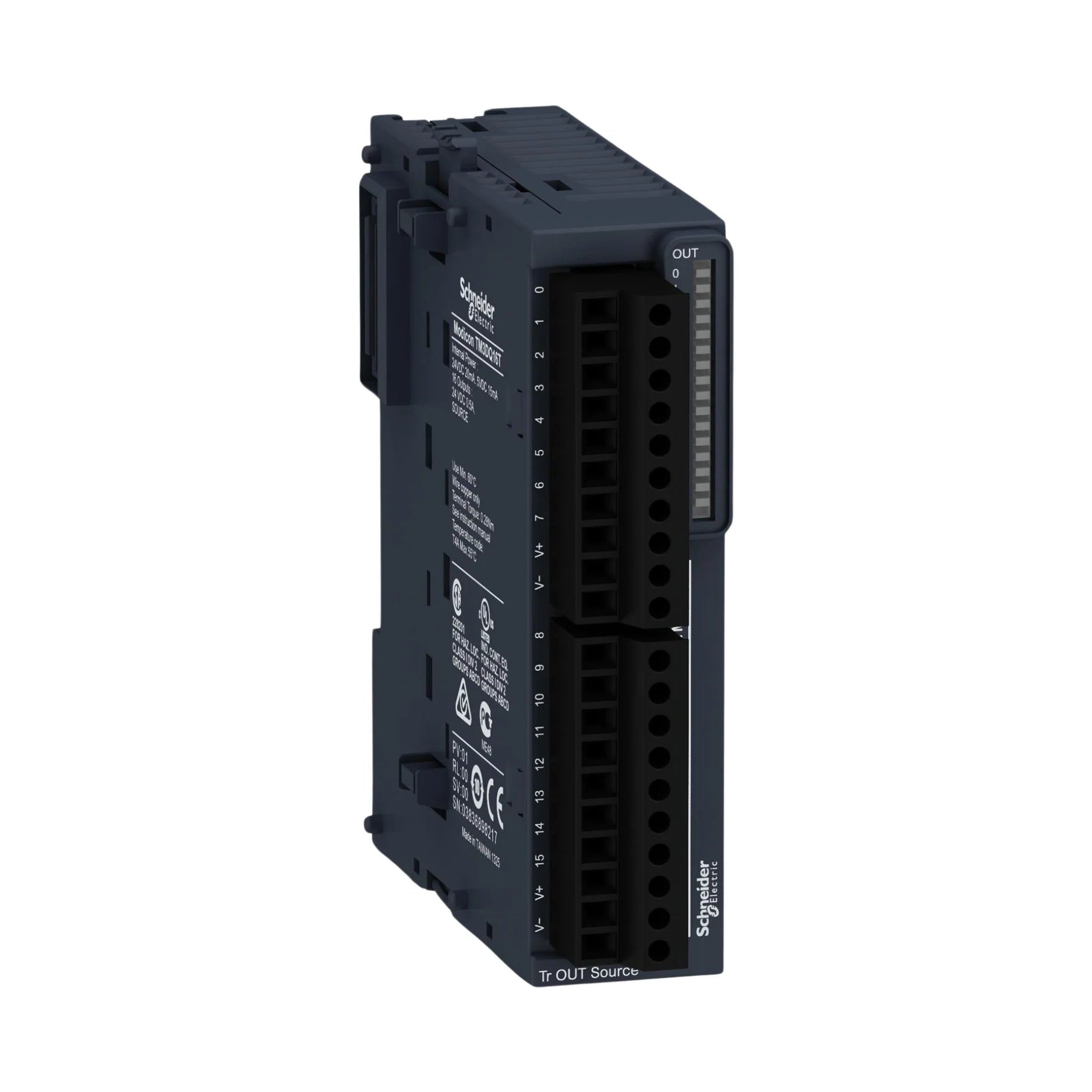

Elevate your automation infrastructure with the Schneider Electric TM3DQ16T, a sophisticated 16-channel digital output module. As a core component of the Modicon TM3 I/O expansion family, this unit is meticulously engineered to seamlessly integrate with Modicon M221, M241, and M251 logic controllers. Featuring sixteen meticulously designed 24V DC transistor outputs, the TM3DQ16T delivers exceptional responsiveness for tasks demanding rapid switching, making it an indispensable asset for controlling solenoid valves, precise actuators, and critical indicator lights in industrial environments.

Key Features

• Output Configuration: Employs 16 distinct digital output channels for versatile control.
• Transistor Output Technology: Configurable as either sink or source based on wiring, offering installation flexibility.
• Robust Output Voltage: Operates at a stable 24V DC, suitable for a wide array of industrial components.
• Individual Channel Capacity: Each channel supports a rated output current of 0.5 A, ensuring reliable performance.
• Group Load Management: Manages a maximum group load of 4 A, enhancing system stability.
• Optimized Switching Frequencies: Boasts a 1 kHz switching frequency for resistive loads and 0.5 kHz for inductive loads, ensuring swift and accurate responses.
• Integrated Diagnostics: Equipped with an individual LED indicator per channel for immediate status visualization and simplified troubleshooting.
• Secure Connectivity: Utilizes a dependable removable screw terminal block for straightforward and robust wiring.
• Universal Mounting: Designed for convenient DIN rail installation, facilitating integration into existing setups.

Technical Specifications

• Model Identifier: TM3DQ16T
• Product Family: Modicon TM3 Series
• Operational Voltage Span: Functions efficiently within a 19.2–30 V DC range.
• Comprehensive Protection: Incorporates built-in short-circuit and overload protection for operational safety and longevity.
• Superior Isolation: Features optical isolation between outputs and the logic circuitry, preventing interference.
• Ultra-Fast Response: Achieves ON/OFF response times of ≤ 1 ms, crucial for demanding applications.
• Minimal Power Consumption: Draws approximately 50 mA from the TM3 bus, contributing to energy efficiency.
• Environmental Shielding: Boasts an IP20 protection rating, indicating a degree of protection against solid objects.
• Operating Temperature Range: Certified for reliable performance from 0°C to +55°C.
• Physical Footprint (W x H x D): Compact dimensions of 45 mm x 90 mm x 70 mm for space-saving installations.
• Unit Mass: Weighs approximately 0.2 kg, making it lightweight and easy to handle.

Applications

• Precision High-Speed Output: Ideal for scenarios requiring rapid and accurate output control.
• Automated Sorting and Packaging Lines: Enhances efficiency and speed in complex material handling systems.
• Dynamic Lighting and Alert Systems: Provides reliable control for indicators and alarms.
• Diverse Industrial Automation: A flexible solution for a broad spectrum of general industrial automation requirements.

Why Choose This Model?

The Schneider Electric TM3DQ16T stands out as a superior choice for modern industrial control. Its dedicated design for fast-switching capabilities ensures unparalleled precision in output control, which is critical for time-sensitive operations. Experience hassle-free integration thanks to its compact form factor, inherent reliability, and user-friendly installation process. This module is the perfect complement for expanding the capabilities of your Modicon TM3-compatible PLCs, offering a seamless and powerful upgrade. Furthermore, its efficiency and adaptability across various load types make it an exceptionally flexible tool, capable of meeting the demands of diverse industrial challenges while optimizing resource utilization.

Order Now

Secure your Schneider Electric TM3DQ16T today and experience expedited shipping with worldwide delivery options to ensure your project stays on schedule. Explore our extensive collection of Schneider Electric Modicon TM3 Expansion I/O Modules for additional components designed to enhance your system. Discover our full selection of Schneider Electric PLCs to uncover scalable, flexible, and utterly reliable automation solutions tailored for a wide array of industrial applications.
