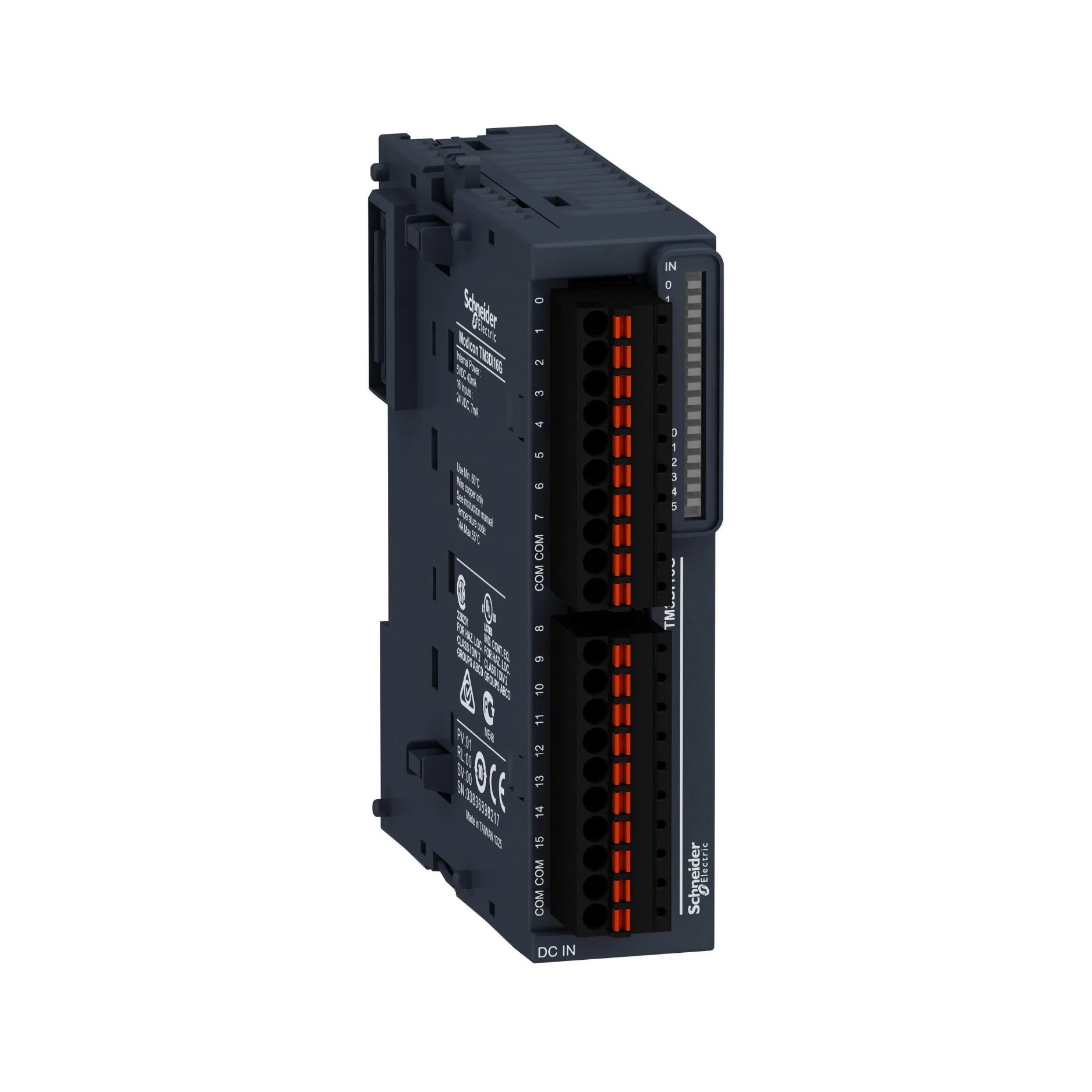

Schneider Electric TM3DI16G

Overview

Unlock superior control and streamlined operations with the Schneider Electric TM3DI16G. This advanced 16-channel digital input module is an integral component of the trusted Modicon TM3 expansion I/O ecosystem. Engineered for peak performance and user convenience, it boasts innovative spring terminals, facilitating swift and error-free, tool-less wiring. Specifically designed to seamlessly integrate with Schneider Electric's M221, M241, and M251 programmable logic controllers (PLCs), the TM3DI16G ensures rapid and highly reliable acquisition of crucial input signals. Its compact form factor and effortless DIN rail mounting make it an ideal choice for optimization in a wide array of industrial automation environments, delivering both precision and efficiency.

Key Features

• Expansive Input Capacity: Provides 16 distinct digital input channels, perfect for comprehensive signal monitoring.
• Versatile Voltage Handling: Operates efficiently with 24V DC inputs, supporting both sink and source configurations for broad compatibility.
• Effortless Connectivity: Equipped with advanced spring terminals, enabling quick, secure, and tool-free wiring connections to minimize installation time.
• Instant Status Feedback: Features individual LED indicators for each input channel, offering clear and immediate operational status.
• Space-Saving Design: Engineered for standard DIN rail mounting, ensuring a neat and organized panel layout.
• Modular System Integration: Functions as a dedicated TM3 expansion module, effortlessly extending your current Modicon setup.
• Optimized Compatibility: Fully compatible with Schneider Electric Modicon TM221, TM241, and TM251 logic controllers for integrated system expansion.

Technical Specifications

• Model Designation: TM3DI16G
• Product Series: Modicon TM3
• Input Voltage Range: Robust operation across 19.2V to 30V DC.
• Input Current Draw: Approximately 3 mA at 24V DC, ensuring energy efficiency.
• Galvanic Isolation: Superior 500V isolation between input channels and the logic circuit for enhanced safety and noise immunity.
• Rapid Response Time: Achieves ON/OFF transitions in ≤ 4.5 milliseconds, critical for time-sensitive applications.
• Power Consumption (Bus): Draws approximately 20 mA at 3.3V DC from the TM3 bus.
• Environmental Protection: Rated IP20, safeguarding against solid objects larger than 12.5mm.
• Operational Temperature Range: Reliable performance from 0°C to +55°C.
• Physical Dimensions (W x H x D): Compact 45 mm x 90 mm x 70 mm footprint.
• Module Weight: Lightweight at approximately 0.18 kg.

Applications

The Schneider Electric TM3DI16G digital input module is meticulously engineered to excel in diverse industrial applications requiring precise and dependable signal acquisition:

• Industrial Machine Control Panels: Provides critical input data for automated machinery operations, enhancing safety and productivity.
• OEM Equipment Automation: An ideal solution for original equipment manufacturers seeking robust and easily integrated I/O expansion.
• Building and Process Automation: Facilitates intelligent control within commercial buildings and various processing plants, from HVAC to access control.
• Advanced Signal Acquisition and Monitoring: Essential for systems that demand accurate monitoring and collection of discrete digital signals across various sensors and switches.

Why Choose This Model?

When precision, speed, and reliability are paramount, the Schneider Electric TM3DI16G stands out as the definitive choice for your automation infrastructure. This module not only delivers a substantial 16-channel input expansion but also simplifies the wiring process dramatically with its tool-free spring terminals, significantly reducing installation and maintenance time. Its compact, DIN rail-mountable design ensures seamless integration into existing or new control cabinets without sacrificing valuable space. Engineered for perfect harmony with Modicon M221, M241, and M251 PLCs, the TM3DI16G facilitates exceptionally fast and accurate data acquisition, empowering your systems with real-time operational insights. This module represents a strategic investment in enhancing the agility, efficiency, and robustness of your industrial control applications.

Order Now

Optimize your automation systems with the Schneider Electric TM3DI16G 16-Channel Digital Input Module. Benefit from our fast shipping options and worldwide delivery, bringing this essential component directly to your facility. We invite you to further explore the comprehensive Schneider Electric Modicon TM3 Expansion I/O Modules collection to discover more innovative solutions. Additionally, delve into our extensive range of Schneider Electric PLCs, designed to offer scalable, flexible, and utterly reliable automation solutions tailored for the most demanding industrial environments. Enhance your control capabilities today!
