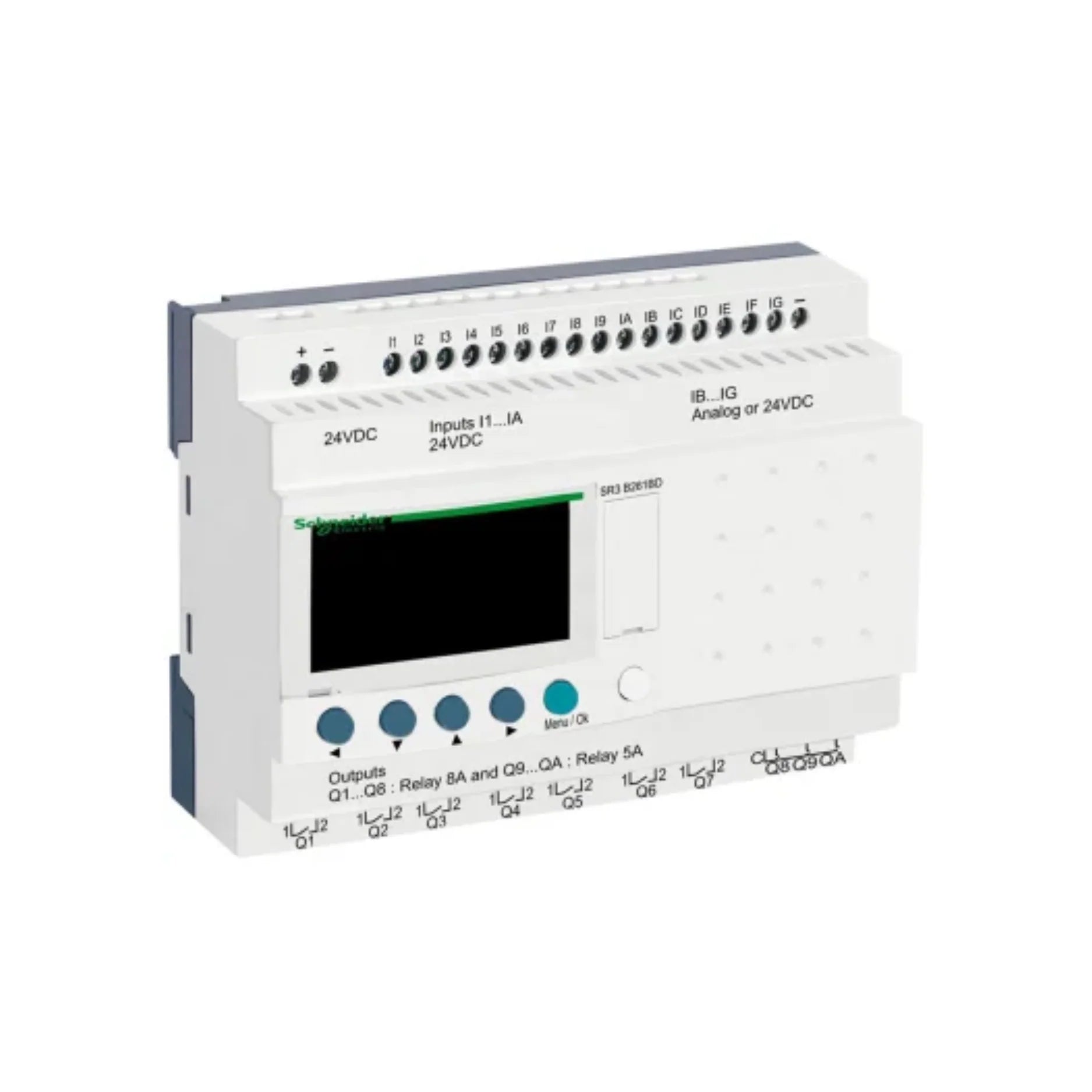

Schneider Electric SR3B261BD

Overview

Unleash efficient and dependable automation for your projects with the Schneider Electric SR3B261BD from the acclaimed Zelio Logic series. This intelligent relay is meticulously engineered to provide robust control for a diverse array of small-scale systems. Operating flawlessly on a 24V DC power supply, the SR3B261BD integrates 26 versatile I/O points directly into its compact frame. This makes it an exceptional choice for optimizing control in applications such as intricate lighting setups, crucial HVAC systems, and the precise operation of smaller machinery. Discover unparalleled ease of use and steadfast performance with this essential industrial component.

Key Features

• Comprehensive I/O: Boasts a total of 26 integrated input/output points for flexible control.
• Dedicated Inputs: Features 16 digital inputs, ensuring ample capacity for various sensor and switch connections.
• Reliable Outputs: Equipped with 10 robust relay outputs, providing secure switching capabilities for connected devices.
• Optimal Power: Runs efficiently on a standard 24V DC supply, suitable for industrial environments.
• Intuitive Interface: Incorporates a clear LCD screen complemented by easy-to-use navigation buttons for on-device management.
• Dual Programming Methods: Supports programming via powerful PC software (Zelio Soft) or directly on the unit using its built-in keypad.
• Integrated Timing: Includes a factory-fitted real-time clock, perfect for scheduling and time-sensitive operations.
• Data Resilience: Utilizes EEPROM for crucial memory retention, safeguarding your configurations.
• Communication Ready: Offers an optional RS485 interface for enhanced connectivity and network integration.

Technical Specifications

• Model Identifier: SR3B261BD
• Product Line: Zelio Logic
• Power Requirements: 24V DC
• Output Mechanism: Relay (potential-free contact)
• Maximum Output Current: 8 A per individual output
• Supported Programming Languages: Ladder Diagram or Function Block Diagram
• Installation Flexibility: Designed for both DIN rail and panel mounting options
• Environmental Protection: IP20 protection for the main body, IP40 for the front panel
• Operational Temperature Range: -20°C to +55°C
• Physical Dimensions (W x H x D): 126 mm x 90 mm x 59 mm
• Approximate Mass: 0.4 kg

Applications

The Schneider Electric SR3B261BD is engineered to excel in a wide spectrum of light to medium automation tasks, providing reliable control across various sectors:

• Sophisticated Lighting Control Systems
• Secure Access and Entry Management
• Precise HVAC and Environmental Regulation
• Efficient Control for Small-Scale Machinery
• Pumping and Fluid Management Systems
• Gate and Barrier Automation

Why Choose This Model?

When selecting a smart relay, the SR3B261BD stands out as a superior choice due to its balanced blend of functionality, user-friendliness, and robust design. This unit offers an all-encompassing control solution with its 26 integrated I/O points, reducing the need for additional components and simplifying your system architecture. Its straightforward programming options catered to both experienced engineers and newcomers – whether through intuitive PC software or direct keypad input – ensure a swift setup and seamless operation. Furthermore, its compact footprint and durable construction are engineered for longevity, even in demanding industrial settings. This device is specifically optimized for applications requiring logical control, providing a cost-effective yet powerful alternative to more complex PLCs for a multitude of tasks. Opt for the SR3B261BD to achieve dependable, efficient, and easily managed automation.

Order Now

Ready to upgrade your control systems? Secure your Schneider Electric SR3B261BD today and experience next-level automation. Benefit from our efficient processing, guaranteeing fast shipping and reliable worldwide delivery directly to your location.
