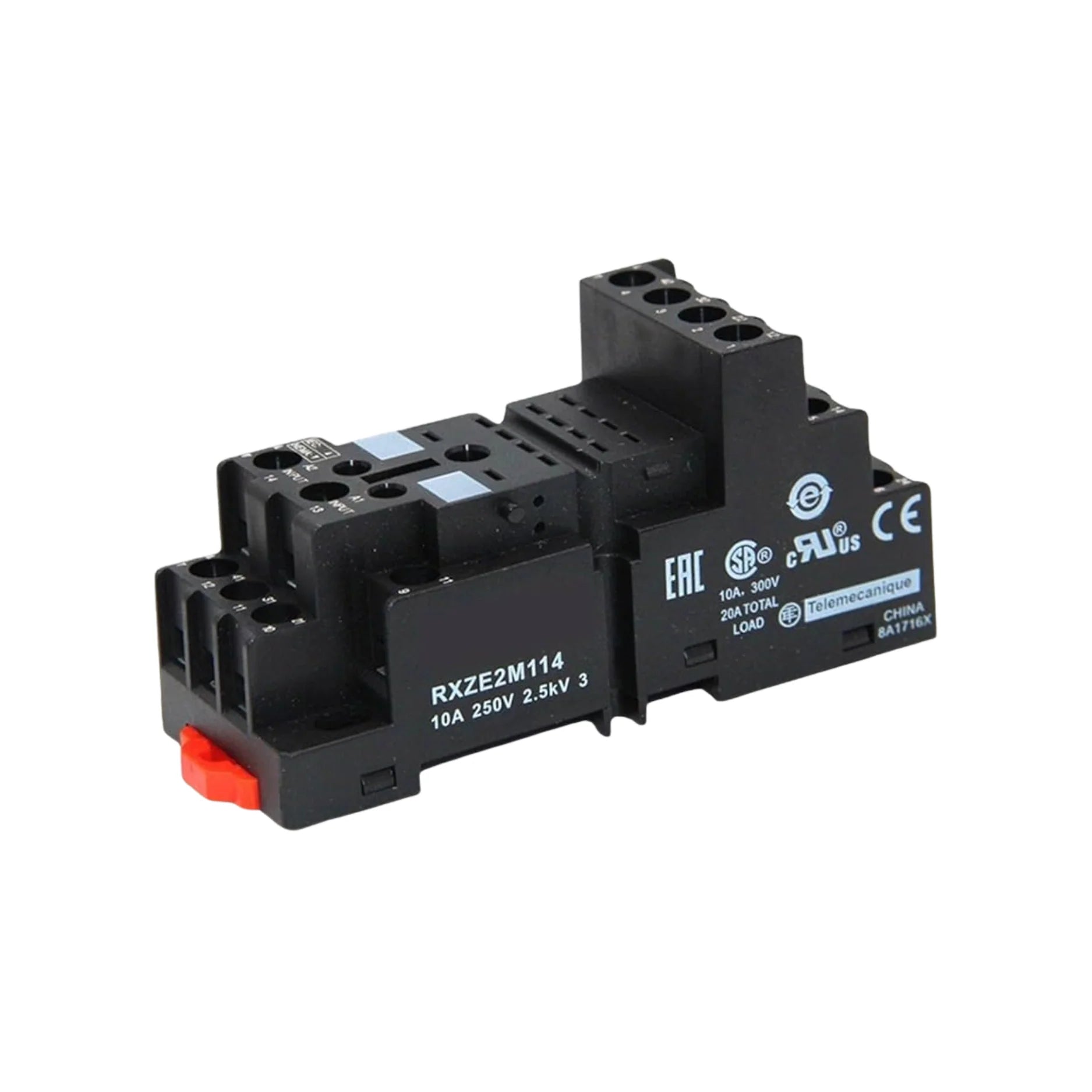

Schneider Electric RXZE2M114

Overview

Elevate your industrial control systems with the Schneider Electric RXZE2M114, an expertly engineered 14-pin relay socket designed for flawless pairing with the RXM2 and RXM4 series relays. This robust socket integrates industry-leading design with practical functionality, delivering steadfast connectivity crucial for demanding automation environments. Equipped with secure screw clamp terminals, it guarantees reliable and stable electrical connections, minimizing downtime and maximizing operational efficiency. Rated for 10 Amperes at 250 Volts AC, the RXZE2M114 is a versatile solution for a broad spectrum of industrial automation tasks, offering the flexibility of both 35mm DIN rail and direct panel mounting to suit diverse installation needs.

Key Features

• Precision Pin Configuration: A 14-pin design ensures perfect compatibility and optimal performance when used with RXM2 and RXM4 series relays.
• High Current Handling: Capable of managing up to 10A conventional free air thermal current, suitable for various power-control applications.
• Robust Voltage Rating: Engineered for operational reliability at voltages up to 250V AC, ensuring stability in standard industrial power grids.
• Secure Terminal System: Utilizes dependable screw clamp terminals, providing a firm and lasting connection for all wired circuits.
• Flexible Installation Options: Offers dual mounting capabilities, seamlessly integrating into existing setups via 35mm DIN rail or secure panel mounting.
• Space-Efficient Profile: Boasting a compact 30mm width, this socket is designed for high-density installations without compromising performance.
• Global Compliance and Certification: Bears CE marking, UL, CSA, and Lloyd's approvals, assuring adherence to rigorous international safety and quality benchmarks.

Technical Specifications

• Model Number: RXZE2M114
• Product Range: Harmony Relay
• Contact Terminal Arrangement: Mixed
• Shape of Pin: Flat
• Conventional Free Air Thermal Current (Ith): 10A
• Rated Operational Voltage (Ue): < 250V AC
• Connection Capacity:
  • Flexible with cable end: 1 x 0.25...1 x 1 mm² (AWG 22...AWG 17)
  • Flexible with cable end: 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17)
  • Solid without cable end: 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16)
  • Solid without cable end: 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16)
• Tightening Torque: ≤ 1 N·m for M3 screws
• Mounting Mode: By screw (panel) or clip-on (35mm symmetrical DIN rail)
• Width: 30mm
• Product Weight: Approximately 0.048 kg
• Standards Compliance: IEC 61984
• Certifications: UL, CSA, Lloyd's
• Operating Temperature Range: -40°C to +55°C
• Storage Temperature Range: -40°C to +85°C
• IP Degree of Protection: IP20 conforming to EN/IEC 60529
• Dielectric Strength: 2500V

Applications

• Advanced Industrial Automation: Provides an indispensable link for dependable relay connections within complex control panels and automated machinery.
• Precision Process Control: Facilitates seamless and secure interfacing of relays in critical industrial process control environments, ensuring operational accuracy.
• Diverse Machinery Integration: Perfectly suited for deployment across a variety of machinery types that demand robust and consistent relay socket performance.

Why Choose the Schneider Electric RXZE2M114?

Opting for the Schneider Electric RXZE2M114 means investing in unparalleled reliability and design flexibility for your electrical systems. This model stands out due to its engineered precision and user-centric features:

• Optimal Compatibility: Specifically designed to integrate flawlessly with Schneider Electric's acclaimed RXM2 and RXM4 series relays, guaranteeing performance and simplifying system design.
• Unwavering Connection Security: The high-quality screw clamp terminals provide a level of connection integrity that withstands vibrations and operational stresses, ensuring long-term functional stability.
• Superior Mounting Versatility: Whether your setup demands the structure of a DIN rail, or the directness of panel mounting, this socket adapts effortlessly, streamlining installation and maintenance.
• Globally Recognized Quality Assurance: With comprehensive certifications from leading international bodies like UL, CSA, and Lloyd's, the RXZE2M114 is not just a component, but a promise of safety, quality, and enduring performance in any global application.

Order Now

Secure your operations with the robust Schneider Electric RXZE2M114 relay socket. This essential component is available for immediate dispatch, ensuring rapid delivery to your worldwide location. Enhance your system's reliability today.
