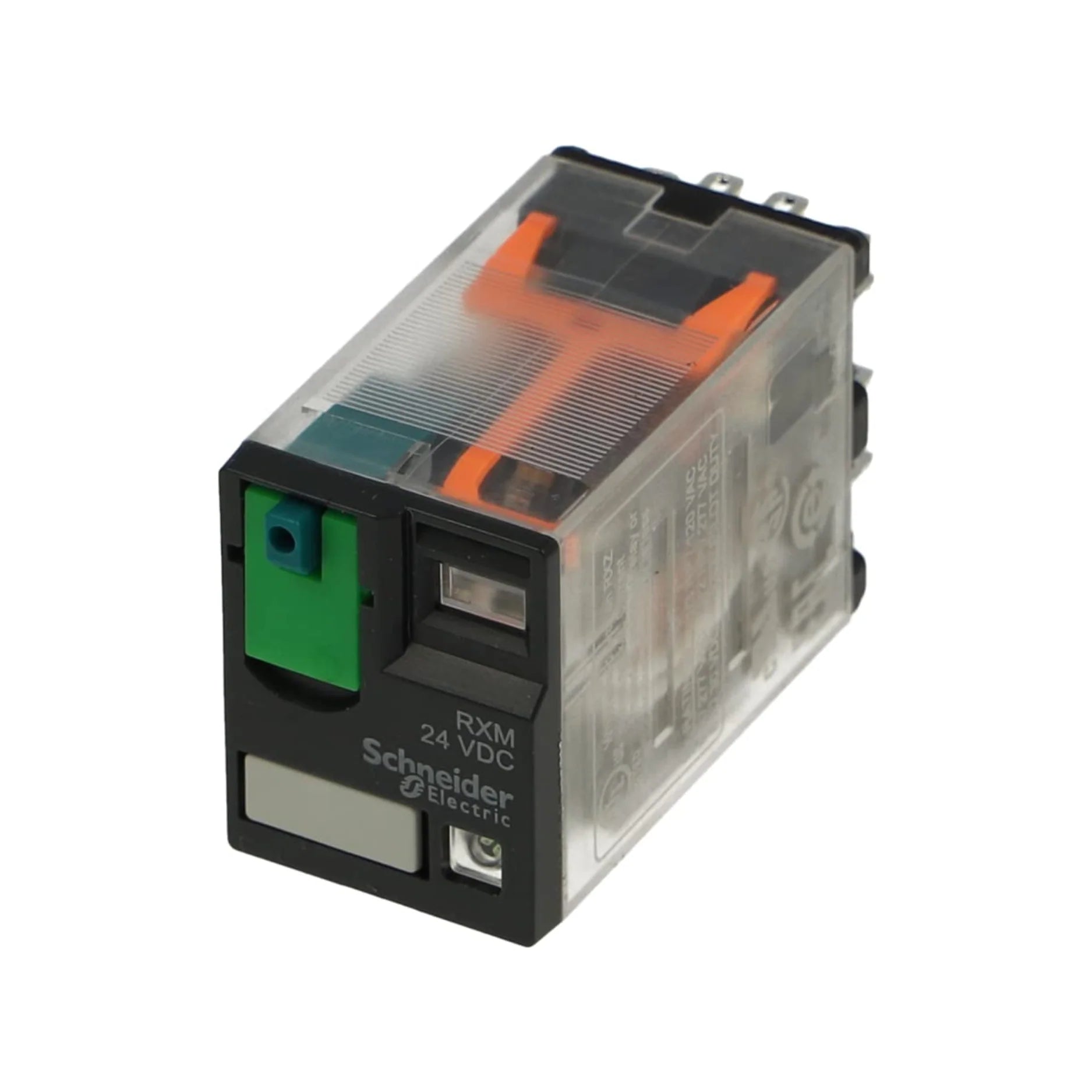

Schneider Electric RXM4AB2BD

Overview

Elevate your industrial control circuits with the Schneider Electric RXM4AB2BD, a high-performance 4-pole contactor from the distinguished RXM4 series. Engineered for precision and reliability, this contactor integrates a 24V DC coil with an adaptable 2 normally open (NO) and 2 normally closed (NC) contact configuration. This intelligent design ensures seamless and efficient switching operations, making it an indispensable component for a wide array of automation and control applications. From intricate machinery to sophisticated building management systems, the RXM4AB2BD delivers consistent performance and robust control, empowering your systems with enhanced functionality and operational integrity. Its thoughtful design prioritizes both effectiveness and longevity, positioning it as a cornerstone for demanding electrical environments.

Key Features

• Dynamic Contact Arrangement: Features a versatile 2NO + 2NC contact setup, allowing for comprehensive control over various circuit states.
• Optimized Coil Voltage: Operates efficiently with a 24V DC coil, ensuring precise and reliable activation for critical applications.
• Quadruple Pole Design: Equipped with 4 poles, providing robust switching capabilities for complex industrial requirements.
• Significant Operational Current: Boasts an operational current capacity of up to 9 A (AC-15) and 12 A (AC-1), accommodating diverse load demands.
• Extended Electrical Longevity: Built for endurance, offering an impressive electrical durability of 1 million operations, minimizing maintenance.
• Superior Mechanical Resilience: Designed to withstand rigorous use with a mechanical durability extending to 10 million operations.
• Flexible Mounting Options: Supports both standard DIN rail and direct panel mounting, offering installation versatility.
• Broad Accessory Compatibility: Fully compatible with a range of auxiliary contacts, thermal relays, and suppressor modules for expanded functionality.

Technical Specifications

• Model Designation: RXM4AB2BD
• Product Line: RXM4 Series
• Pole Configuration: 4 Poles
• Auxiliary Contact Array: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Control Circuit Voltage: 24V DC
• Rated Operating Current:
  • AC-1 Rating: 12 Amperes
  • AC-15 Rating: 9 Amperes at 600V
• Rated Insulation Voltage: 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Installation Method: Adaptable for DIN rail attachment or direct screw fixing
• Operational Temperature Range: -25°C to +60°C
• Physical Dimensions (H x W x D): Approximately 85 mm x 45 mm x 94 mm
• Unit Mass: Approximately 0.47 kg
• Global Certifications: UL, CSA, CE, IEC compliant

Applications

• Sophisticated Control Panels: Essential for precise switching and management of control circuits within advanced industrial machinery.
• Integrated Building Management Systems: Optimizes the control of lighting networks, HVAC systems, and comprehensive security infrastructures.
• Automated Manufacturing Systems: Critical for managing auxiliary functions and ensuring secure interlocking circuits in automated processes.
• Original Equipment Manufacturer (OEM) Integration: A core component for controlling motors, pumps, ventilation systems, and a multitude of other equipment.

Why Choose This Model?

The Schneider Electric RXM4AB2BD stands as a testament to engineering excellence, offering a unique blend of attributes that make it the preferred choice for discerning professionals. Its unparalleled Reliable Switching capabilities, backed by exceptional durability, guarantee flawless operation in even the most challenging industrial settings. The Compact Design is a significant advantage, allowing for efficient space utilization within diverse panel configurations without compromising performance. With its Versatile Mounting options, installation is simplified and adaptable to virtually any project requirement, whether through DIN rail or screw mounting. Furthermore, the Efficient Control offered by its 2NO + 2NC configuration empowers you with meticulous command over multiple operational facets, ensuring systems run exactly as intended. This model doesn't just meet expectations; it redefines them, presenting a robust, adaptable, and highly efficient solution for all your control circuit needs.

Order Now

Secure your Schneider Electric RXM4AB2BD 4-pole contactor today and experience the difference of premium quality and reliable performance. This essential component is readily available for immediate dispatch, ensuring prompt delivery to your location, anywhere in the world. Enhance your control systems with confidence and efficiency.
