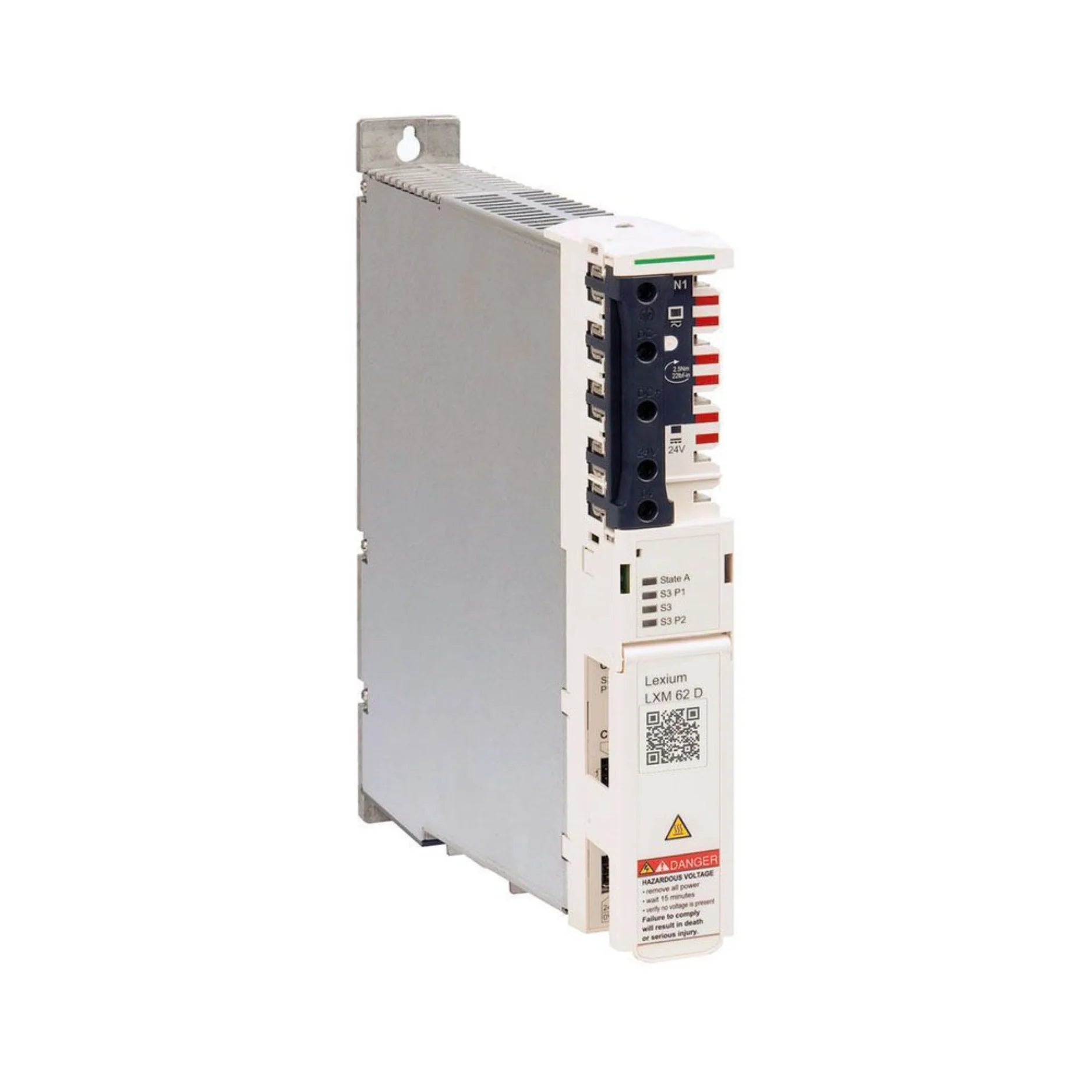

Schneider Electric LXM62DU60C21000

Overview

Introducing the Schneider Electric LXM62DU60C21000, a high-performance PacDrive 3 single servo drive engineered to deliver exceptional precision and reliability in demanding automation environments. This robust unit provides 0.95 kW of continuous power, ensuring seamless and efficient operation for a wide array of servo motor control applications. Designed for versatility, it accommodates three-phase 400V or 230V supplies, as well as single-phase 230V setups, making it adaptable to various industrial power infrastructures. Its intelligent design prioritizes both efficiency and unwavering performance, featuring a continuous output current of 2 A and an impressive 3-second peak current of 6 A. This capability translates into finely tuned torque and speed control, perfectly suited for compatible Schneider Electric servo motor families such as SHS, SH3, and MH3. Integration is streamlined thanks to the embedded SERCOS III communication interface, while the crucial STO (Safe Torque Off) function significantly boosts operational safety, adhering to rigorous international safety standards. With its meticulous engineering and certifications, this drive is a cornerstone for ultra-reliable industrial automation.

Key Features

• Brand Excellence: Manufactured by Schneider Electric, a global leader in energy management and automation.
• PacDrive 3 Series: Part of the innovative PacDrive 3 range, known for advanced motion control.
• Model Identifier: LXM62DU60C21000 – your assurance of specific product specifications.
• Device Category: A dedicated single servo drive for precise motor management.
• Rated Power Output: Delivers a consistent and powerful 0.95 kW for robust performance.
• Flexible Supply Voltage: Supports 400 V three-phase (±10%), 230 V three-phase (±10%), and 230 V single-phase (±10%) for broad compatibility.
• Standard Frequency: Operates at 50/60 Hz (±5%) frequency.
• Stable Output Current: Provides a continuous output current of 2 A (at 4 kHz).
• High Peak Current: Achieves a 3-second peak output current of 6 A (at 4 kHz) for dynamic demands.
• Optimized Switching: Features an 8 kHz switching frequency for enhanced control.
• Integrated Safety: Equipped with STO (Safe Torque Off) functionality for critical safety applications.
• Advanced Communication: Features an integrated SERCOS III interface for high-speed, real-time networking.
• Motor Family Compatibility: Seamlessly integrates with SHS servo motors, SH3 servo motors (55mm, 70mm, 100mm with optimized torque/speed), and MH3 servo motors (70mm with optimized torque/speed).

Technical Specifications

• Compact Dimensions: Measures 44.5 mm (W) × 310 mm (H) × 270 mm (D) [1.8 × 12.2 × 10.6 in].
• Lightweight Design: Net weight of 3 kg (6.6 lb) for straightforward installation.
• Shipping Weight: Packaged weight of 3.84 kg (8.47 lb).
• Environmental Protection: IP20 protection degree (conforming to IEC 60529) against solid objects.
• Operational Temperature Range: Functions reliably from +5°C to 55°C (41°F to 131°F).
• Humidity Resilience: Withstands relative humidity from 5% to 85% (non-condensing).
• Vibration Tolerance: Robust against vibrations up to 10 m/s² (IEC 60721-3-3).
• Shock Resistance: Built to endure shocks up to 100 m/s² (IEC 60721-3-3).
• Pollution Degree: Rated for pollution degree 2 (IEC 61800-5-2) environments.
• Adhered Standards: Complies with critical standards including IEC 61131-2, UL 508C, CSA C22.2, ISO 13849, and IEC 61508.
• Global Certifications: Awarded CE, CSA, TÜV, UL, and EAC certifications, ensuring worldwide compliance.

Applications

• Precision servo motor control within sophisticated PacDrive 3 ecosystems.
• Automated lines for packaging and processing industry machinery, demanding high accuracy.
• Robotics and complex assembly automation tasks requiring dynamic and reliable motion.
• Advanced multi-axis synchronization in networks utilizing SERCOS III communication protocols.
• Systems requiring certified safe motion control solutions through integrated STO functionality.

Why Choose This Model?

The Schneider Electric LXM62DU60C21000 distinguishes itself as a premier choice for modern automation needs. Its compact form factor conceals a powerful 0.95 kW drive, perfect for optimizing space without sacrificing performance. The unparalleled compatibility with a diverse range of Schneider Electric servo motor families (SHS, SH3, MH3) offers exceptional flexibility in system design and upgrades. With PROFIBUS and PROFINET as supported fieldbuses, it integrates effortlessly into your existing control architecture. The inclusion of an integrated SERCOS III interface guarantees high-speed, real-time data exchange, crucial for synchronized multi-axis applications. Crucially, the built-in STO (Safe Torque Off) function provides an essential layer of safety, facilitating compliance with stringent industrial regulations and safeguarding personnel and equipment. Backed by extensive certifications to global industrial automation standards, this drive ensures reliability, safety, and peak performance in the most demanding operational environments.
