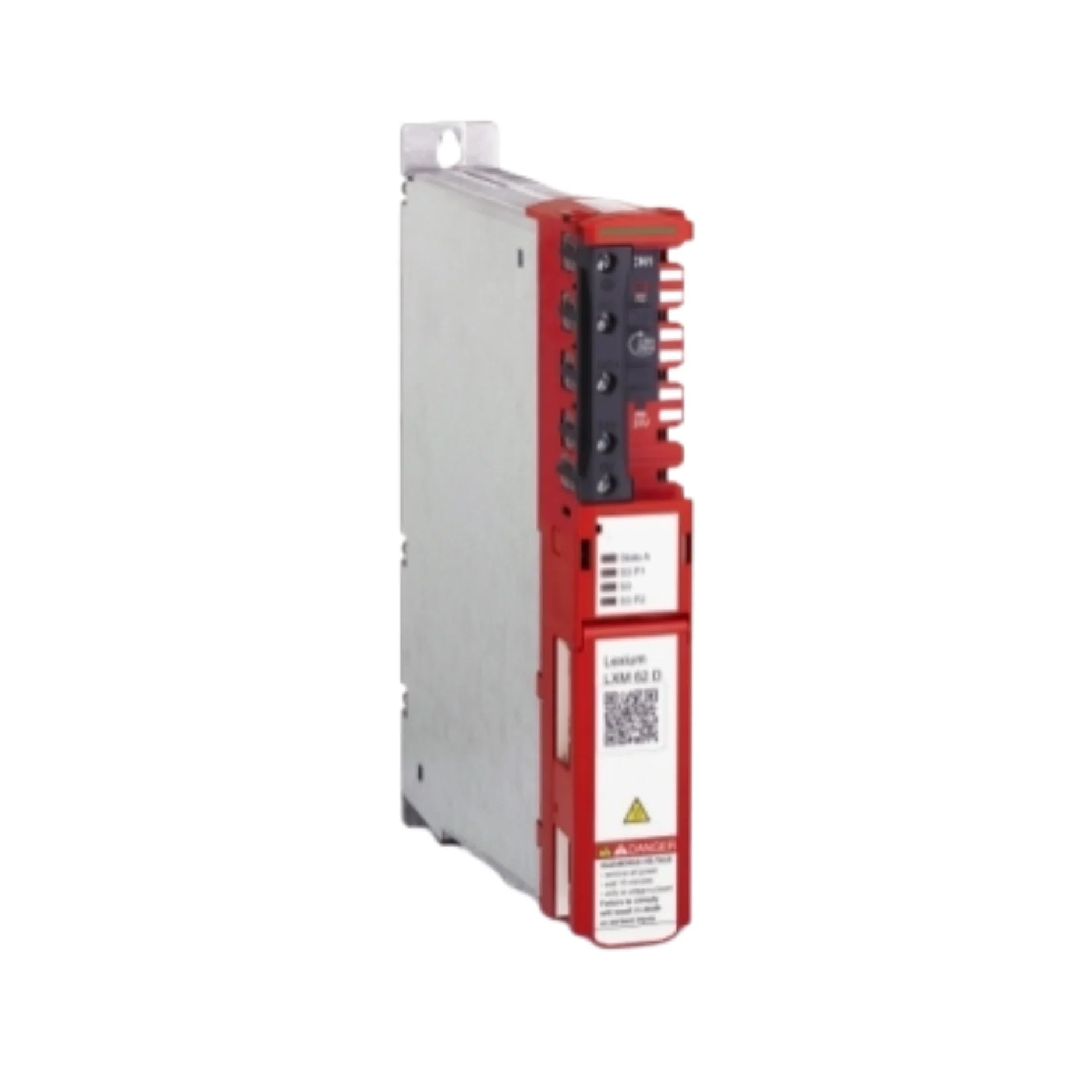

Schneider Electric LXM62DD45E21000

Overview

Unleash the full potential of your industrial automation with the Schneider Electric LXM62DD45E21000 Lexium 62 Single Drive. As a core component within the renowned PacDrive 3 automation platform, this single drive is meticulously engineered to meet the rigorous demands of modern manufacturing. Delivering a robust 9.6 kW of continuous power and a substantial 20 A continuous output current at 4 kHz, it provides the exceptional performance required for high-speed, high-precision applications. Its seamless integration with SERCOS III communication ensures synchronized, multi-axis control when paired with PacDrive 3 LMC motion controllers, making it an indispensable asset for diverse industrial operations.

Designed for resilience and efficiency, the LXM62DD45E21000 boasts a compact footprint and an IP20 rating, guaranteeing reliable operation in challenging industrial environments. Each unit comes complete with all necessary connectors and an accessory kit, streamlining the installation process and minimizing downtime. Experience enhanced productivity and precision with this advanced Lexium 62 single drive from Schneider Electric.

Key Features

• Brand Heritage: Trust in the innovation and reliability of Schneider Electric, a global leader in energy management and automation solutions.
• PacDrive 3 Integration: A vital component of the advanced PacDrive 3 automation platform, ensuring optimal system performance.
• Model Designation: Specifically the LXM62DD45E21000, representing a high-performance Lexium 62 single drive.
• Powerful Output: Delivers 9.6 kW of continuous power, providing ample energy for demanding applications.
• High Current Capacity: Features a 20 A continuous output current at 4 kHz, designed for robust motor control.
• Enhanced Transient Handling: Engineered with superior peak current capabilities to manage sudden load changes efficiently.
• Industrial-Grade Protection: IP20 rated for reliable operation and protection against solid objects in industrial settings.
• Integrated Connectivity: Boasts built-in SERCOS III communication for high-speed, real-time data exchange.
• Compact and Lightweight: With a mere 3 kg (6.6 lb) weight, its compact design facilitates flexible installation.

Technical Specifications

• Device Type: Single Drive
• Continuous Current: 20 A at 4 kHz
• Continuous Power: 9.6 kW
• Rated Supply Voltage: 24 V DC
• Communication Protocol: Integrated SERCOS III
• Weight: 3 kg (6.6 lb)
• Protection Rating: IP20
• Digital Inputs: 2
• Touch Probe Inputs: 2
• Digital Outputs: 2
• Electrical Connection: Furnished with connectors
• Interface: SERCOS III physical layer

Certifications & Standards

• Global Certifications: CE, UL, CSA, TÜV, EAC
• Safety Standards: UL 508C, CSA C22.2 No 14, EN/ISO 13849-2, EN 62061, EN 61800-3, IEC 61508, EN 61800-5-1

Motor Compatibility

• SH3 Servo Motors: Compatible with 140 mm (4 motor stacks) and 205 mm (1 motor stack) variants.
• MH3 Servo Motors: Compatible with 140 mm (2 motor stacks) variants.

Applications

• Precision Packaging: Optimize the speed and accuracy of packaging machinery.
• Advanced Material Handling: Enhance the efficiency and reliability of intricate material transfer systems.
• General Machine Control: Ideal for a broad spectrum of general industrial machine automation tasks.
• Multi-Axis Coordination: Facilitate seamless and synchronized control in complex multi-axis systems.
• Robotics: Drive articulated movements and precise positioning in robotic applications.
• Printing and Converting: Ensure precise registration and high-speed operation in printing and converting equipment.

Why Choose This Model?

• Exceptional Performance: Experience unparalleled power and control with a 9.6 kW high-performance single drive.
• Space-Saving Design: Its compact form factor allows for efficient integration into diverse machine architectures without compromising performance.
• Global Compliance Assured: Certified by leading international bodies (CE, UL, CSA, TÜV, EAC), guaranteeing adherence to global safety and quality standards.
• Seamless System Integration: Designed for effortless integration into PacDrive 3 automation systems, leveraging the full capabilities of SERCOS III for superior communication.
• Flexible Motor Pairing: Broad compatibility with various SH3 and MH3 servo motors provides versatility in machine design and operation.
• Rapid Deployment: The inclusion of an accessory kit and pre-furnished connectors significantly accelerates installation, getting your operations online faster.
• Reliability in Demanding Environments: Built to withstand industrial conditions, ensuring consistent and dependable performance day after day.

Order Now

Elevate your automation capabilities with the Schneider Electric LXM62DD45E21000 Lexium 62 Single Drive. This high-performance, globally certified drive is readily available for worldwide shipment. Invest in precision, reliability, and the cutting-edge technology that only Schneider Electric can provide. For further details on the Lexium 62 series and other advanced servo drive solutions, explore our comprehensive range of Schneider Electric products today.
