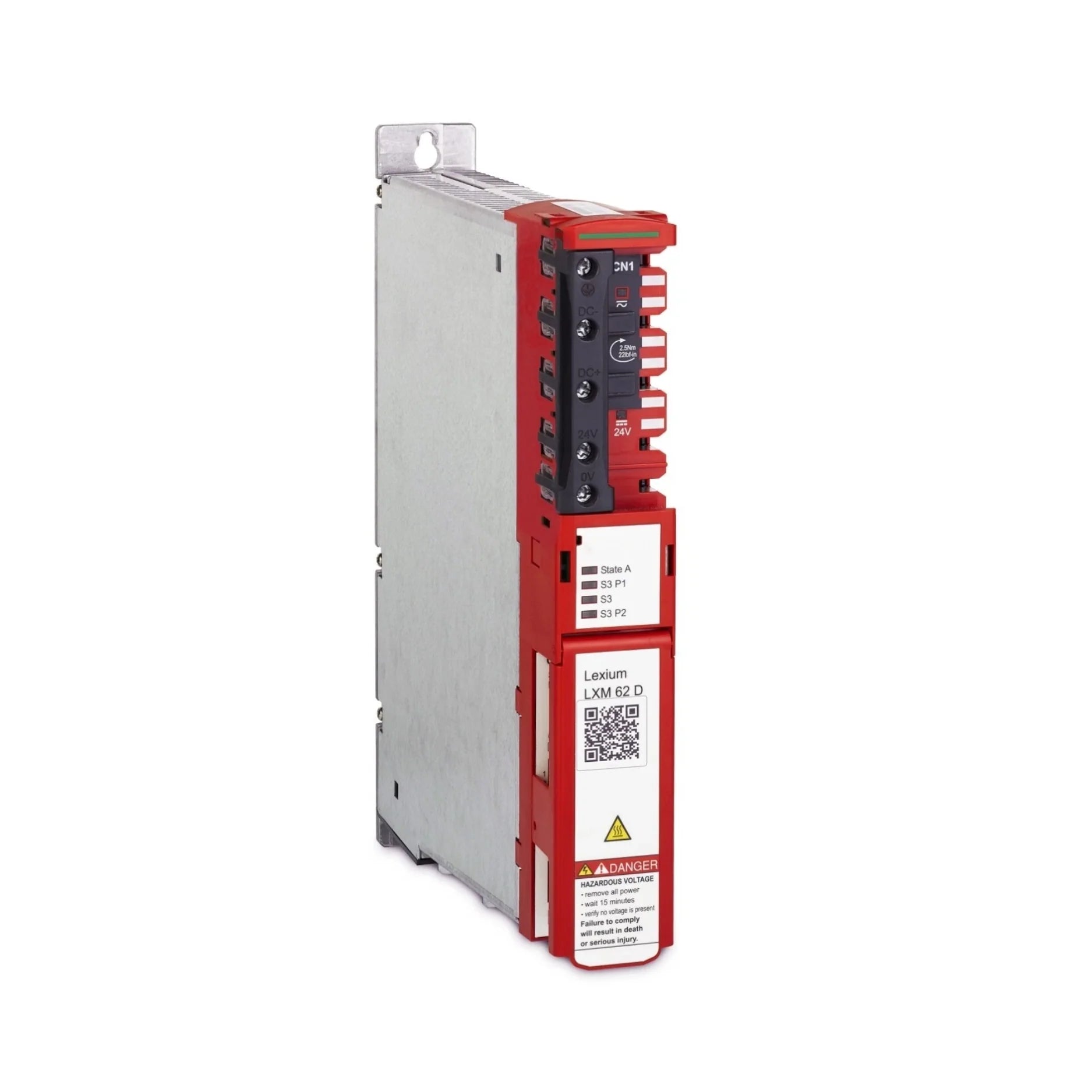

Schneider Electric LXM62DD27F21000

Overview

Unlock superior control and dynamic performance in your industrial automation setups with the Schneider Electric LXM62DD27F21000 dual-axis drive. Part of the innovative Lexium 62 PacDrive 3 series, this unit is engineered for precision in demanding multi-axis applications. Delivering a robust 9 A of continuous output current at 4 kHz and a substantial 4.3 kW of power, the LXM62DD27F21000 ensures reliable operation for critical machinery. Its seamless integration with PacDrive 3 LMC controllers is facilitated by advanced SERCOS III communication, guaranteeing high-speed and deterministic control. This versatile drive offers broad compatibility with various Schneider Electric servo motor ranges, including SH3, MH3, and SHS, making it a flexible solution for diverse industrial needs. From intricate packaging processes to high-speed robotics and efficient material handling, this drive provides the foundation for optimized performance. Furthermore, integral advanced safety functions are embedded, ensuring not only maximum machine efficiency but also paramount operational safety for your personnel and equipment.

Key Features

• Brand: Schneider Electric
• Series: PacDrive 3 – Lexium 62
• Model Designation: LXM62DD27F21000
• Drive Configuration: Dual Drive
• Continuous Output Current: 9 A at 4 kHz
• Peak Current Capacity (for 3 seconds): 27 A
• Continuous Power Output: 4.3 kW
• Supported Supply Voltage: 230 V / 400 V (operates with single or three-phase input)
• Switching Frequency: 8 kHz
• Communication Interface: Integrated SERCOS III
• Integrated Safety Functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operating Stop), SMS (Safe Maximum Speed), SLS (Safely-Limited Speed), SDI (Safe Direction)
• Product Weight: Approximately 3 kg (6.6 lb)
• Protection Class: IP20

I/O and Connectivity

• Digital Inputs: 2
• Touch Probe Inputs: 2
• Digital Outputs: 2
• Input Voltage: 24 VDC (−20%…+25%)
• Output Voltage: 24 VDC

Electrical Terminals

• CN4: 0.2…15 mm² (AWG 24–16)
• CN5: 0.5…16 mm² (AWG 20–6)
• CN6: 0.75…16 mm² (AWG 18–6)
• CN7: 0.2…6 mm² (AWG 24–10)

• Torque Rating: 2.5 N·m (22.1 lbf·in)

Technical Specifications

The LXM62DD27F21000 is engineered to meet rigorous industrial standards, ensuring both performance and compliance. Its robust construction and intelligent design facilitate seamless integration into complex automation architectures. The diverse range of safety functions provides a comprehensive safety net, reducing potential risks and enhancing operational reliability. With flexible wiring options and broad motor compatibility, this drive stands out as a versatile choice for modern manufacturing environments.

Certifications & Standards

• Certifications Received: CE, UL, CSA, TÜV, EAC
• Adhered Standards: UL 508C, IEC 61508, IEC 62061, IEC 61800-3 / IEC 61800-5-1 / IEC 61800-5-2, ISO 13849-1 / ISO 13849-2, CSA C22.2 No 14

Motor Compatibility

• SH3 Servo Motors: Compatible with 100 mm (3, 4 stacks) and 140 mm (1 stack) models.
• MH3 Servo Motors: Fully compatible with 100 mm (2 stacks) models.
• SHS Servo Motors: Seamless integration across the SHS range.

Applications

The Schneider Electric LXM62DD27F21000 is an ideal solution for a multitude of advanced industrial applications that demand precision, speed, and safety. Its dual-axis capability makes it particularly effective in systems requiring synchronized motion control. This drive truly excels in environments where reliability and performance are paramount.

• General Machine Control: Provides precise and reliable control for a wide array of industrial machinery.
• High-Speed Packaging Automation: Optimized for rapid and accurate movements essential in modern packaging lines.
• Robotics and Multi-Axis Motion Systems: Offers the dynamic response and control fidelity required for complex robotic and coordinated multi-axis applications.
• Material Handling Systems: Enhances efficiency and precision in automated storage, retrieval, and conveying operations.

Why Choose This Model?

The LXM62DD27F21000 from Schneider Electric represents a pinnacle of drive technology within the Lexium 62 PacDrive 3 ecosystem. Opting for this specific model provides numerous benefits, solidifying its position as a preferred choice for discerning industrial operators.

• Exceptional Performance Profile: A high-performance double drive expertly engineered for 4.3 kW / 9 A applications, guaranteeing robust and consistent power delivery.
• Flawless System Integration: Designed for effortless and reliable integration into existing or new PacDrive 3 automation systems, minimizing setup time and maximizing operational harmony.
• Comprehensive Integrated Safety: Equipped with an extensive suite of advanced safety functions (including STO, SS1, SS2, SOS, SLS, and more), offering unparalleled protection for both machinery and personnel.
• Extensive Motor Compatibility: Boasts broad servo motor compatibility spanning the SH3, MH3, and SHS ranges, providing flexibility in motor selection and application design.
• Global Usability Assurance: Supported by a wide array of international certifications (CE, UL, CSA, TÜV, EAC), ensuring compliance and acceptance for worldwide deployment.

Order Now

The Schneider Electric LXM62DD27F21000 Lexium 62 Dual Drive is readily available to enhance your automation infrastructure. This cutting-edge component is prepared for immediate dispatch and ships globally, ensuring you can access superior motion control technology wherever your operations are located. Elevate your system capabilities today.
