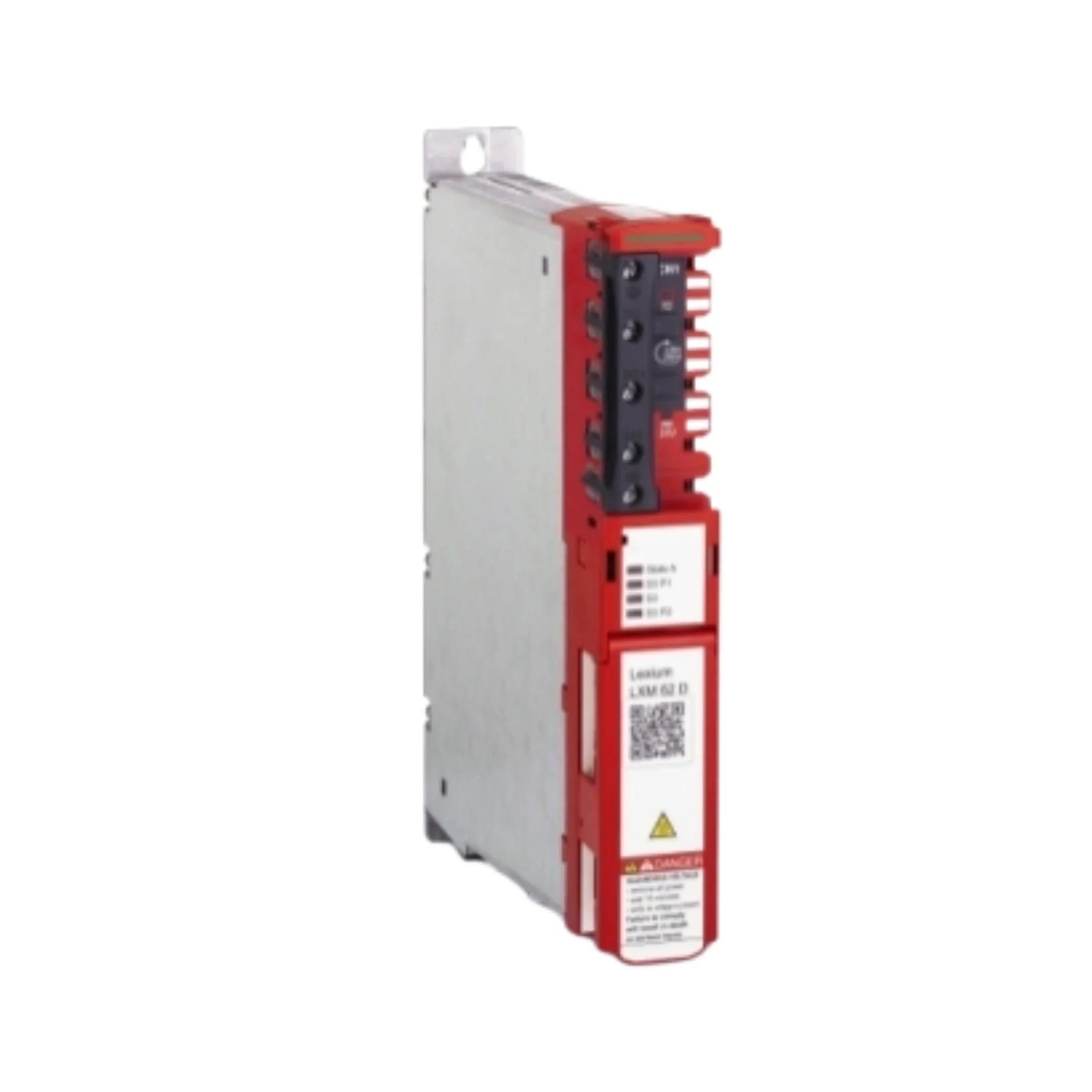

Schneider Electric LXM62DD27E21000

Overview

Unlock superior motion control with the Schneider Electric LXM62DD27E21000, a high-performance single axis servo drive engineered for the demanding world of industrial automation. Part of the innovative PacDrive 3 Lexium 62 series, this robust unit delivers a continuous output current of 9 A at 4 kHz, coupled with a substantial rated power of 4.3 kW. Its seamless integration into PacDrive-based automation systems via SERCOS III ensures impeccably precise and synchronized multi-axis motion, setting a new benchmark for operational efficiency and accuracy.

Designed for versatility and reliability, the LXM62DD27E21000 boasts a compact and lightweight form factor, complemented by an IP20 rating for protection in various industrial settings. It is ideally suited for a broad spectrum of applications, from intricate general machine control to high-speed packaging automation and sophisticated material handling systems. Furthermore, this drive incorporates an extensive suite of advanced safety functions, including STO, SS1, SS2, SOS, SMS, SLS, and SDI, making it an indispensable component for both high-performance and safety-critical industrial environments.

Key Features

• Brand: Schneider Electric – A global leader in energy management and automation.
• Product Line: PacDrive 3 – Lexium 62 series, representing cutting-edge motion control technology.
• Model Designation: LXM62DD27E21000.
• Device Categorization: Single Axis Drive for focused motion tasks.
• Sustained Output: 9 A continuous output current at 4 kHz.
• Momentary Capacity: Achieves a peak current of 27 A for 3 seconds.
• Rated Power: 4.3 kW of continuous power output.
• Power Input: Flexible 230 V / 400 V supply, compatible with single or three-phase configurations.
• Frequency Range: Operates at 50/60 Hz.
• Communication Protocol: Integrated SERCOS III for high-speed, real-time data exchange.
• Integrated Safety: Comprehensive set of functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operating Stop), SMS (Safe Maximum Speed), SLS (Safely-Limited Speed), SDI (Safe Direction).
• Physical Attributes: Lightweight at 3 kg (6.6 lb).
• Environmental Protection: IP20 rated for indoor industrial use.

Technical Specifications

I/O and Connectivity

• Digital Inputs: 2 dedicated inputs.
• Touch Probe Inputs: 2 for precise position detection.
• Digital Outputs: 2 outputs for control signaling.
• Discrete Input Voltage: 24 VDC with a tolerance range of -20% to +25%.
• Interface Type: Seamless SERCOS III communication for integrated automation networks.
• Electrical Connections: Robust terminals for CN4–CN7, requiring a torque specification of 2.5 N·m.

Certifications & Standards

• Certifications: Bears CE, UL, CSA, EAC, and TÜV marks, assuring global compliance and quality.
• Applicable Standards: UL 508C, CSA C22.2 No 14, IEC 61508, IEC 62061, IEC 61800-5-1 / IEC 61800-5-2, IEC 61800-3, ISO 13849-1 / ISO 13849-2.

Motor Compatibility

• SH3 Servo Motors: Compatible with 100 mm (3-stack and 4-stack) and 140 mm (1-stack) variants.
• MH3 Servo Motors: Suitable for 100 mm (2-stack) models.
• SHS Servo Motors: Broad compatibility across various SHS series.

Applications

• Sophisticated packaging machinery automation requiring high precision.
• Multi-axis general machine control for diverse manufacturing processes.
• Advanced material handling systems demanding reliable and swift operation.
• High-performance motion control systems where accuracy and speed are paramount.
• Robotics and automated assembly lines needing synchronized movement.

Why Choose This Model?

The Schneider Electric LXM62DD27E21000 represents a strategic investment in industrial automation, offering a cascade of benefits designed to optimize performance and ensure operational safety. Its robust 4.3 kW power output is delivered within an exceptionally compact footprint, ideal for integrating into space-constrained applications without compromising power. The drive incorporates state-of-the-art, safety-certified functions directly into its design, providing peace of mind and strict adherence to international safety standards from the outset. With its seamless integration capabilities into PacDrive 3 controllers via SERCOS III, commissioning and operation are streamlined, facilitating rapid deployment and efficient system management. The LXM62DD27E21000's broad compatibility with various servo motors ensures a flexible and adaptable system design, allowing for tailored solutions across diverse industrial setups. Finally, its extensive range of global certifications (CE, UL, CSA, TÜV, EAC) underscores its quality and reliability, guaranteeing compliance for worldwide deployment.

Order Now

Elevate your automation capabilities with the Schneider Electric LXM62DD27E21000 Lexium 62 Single Axis Servo Drive. This essential component for precision motion control is readily available and offered with worldwide shipping options. Explore our full range of Lexium 62 Drives or delve into the comprehensive Schneider Electric Lexium Servo Drives & Motors Solutions to find the perfect fit for your industrial needs.
