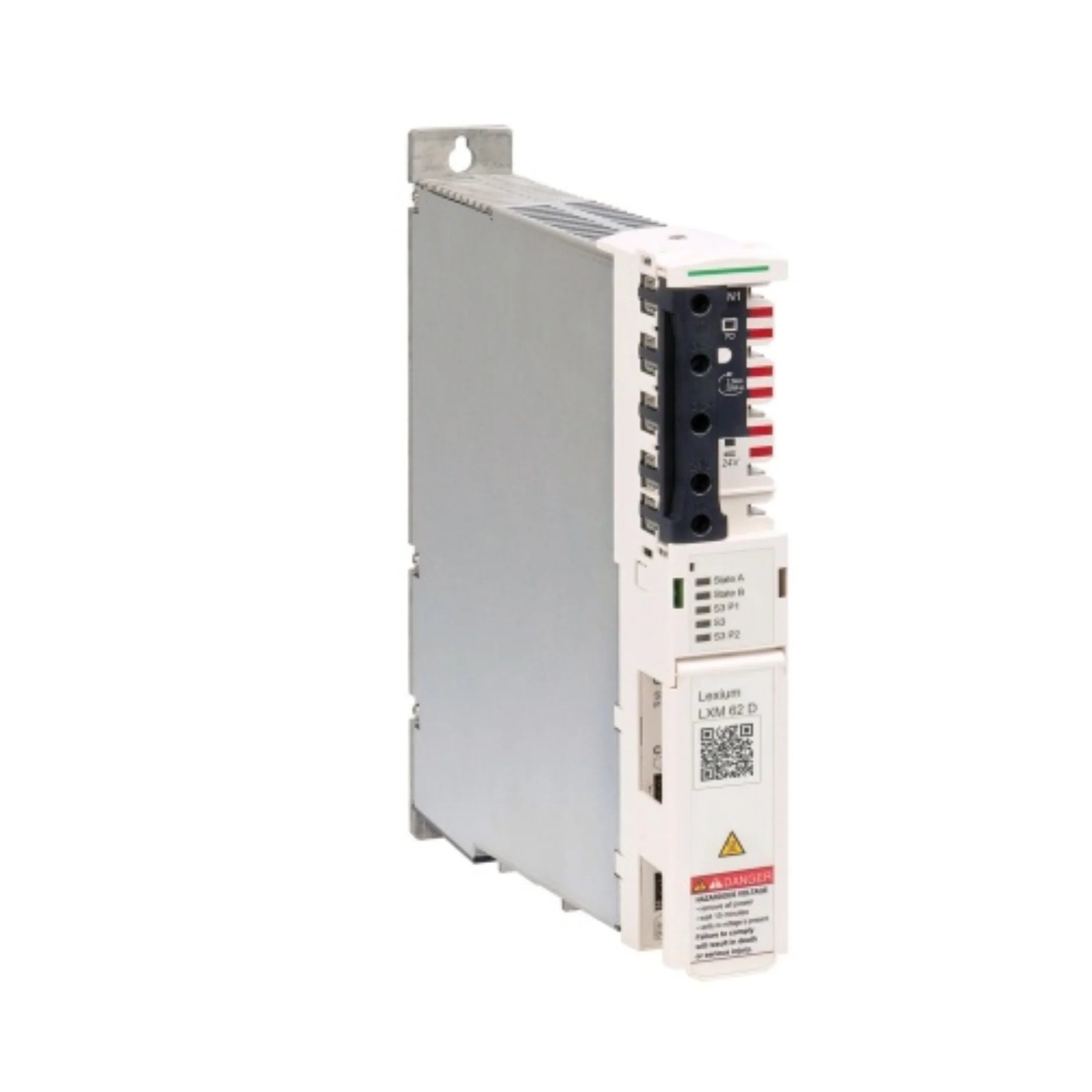

Schneider Electric LXM62DD27D21000

Overview

Experience unparalleled control and efficiency with the Schneider Electric LXM62DD27D21000, a high-performance Lexium 62 dual drive engineered for demanding industrial environments. As a core component of the PacDrive 3 series, this advanced unit delivers a robust 4.3 kW of continuous power, backed by a 9 A output current operating at 4 kHz. Its seamless integration into PacDrive 3 automation solutions is ensured by the cutting-edge SERCOS III physical interface, enabling rapid and reliable communication. Compact yet powerful, this IP20-rated dual drive incorporates critical safety with STO (Safe Torque Off) functionality, alongside versatile I/O including two digital inputs, two touch probe inputs, and two digital outputs. Weighing in at just 3 kg, the LXM62DD27D21000 is the ideal solution for optimizing packaging, material handling, and a wide array of general industrial automation applications demanding precision and reliability.

Key Features

• Brand: Schneider Electric
• Product Range: Lexium 62 & Motors
• Model Number: LXM62DD27D21000
• Device Category: Double Drive
• Continuous Power Output: 4.3 kW
• Operating Voltage: 24 V DC (supplied via power module)
• Constant Output Current: 9 A at 4 kHz
• Maximum Peak Output Current: 27 A (for 3 seconds)
• Overvoltage Classification: III
• Safety Protocol: STO (Safe Torque Off)
• Integrated I/O Capabilities: 2 digital inputs, 2 touch probe inputs, 2 digital outputs
• Communication Interface: SERCOS III
• Connection Terminals: CN4, CN5, CN6, CN7
• Unit Weight: 3 kg (6.61 lb)
• Environmental Protection: IP20 Rating

Technical Specifications

• Continuous Output Power: 4.3 kW
• Nominal Power: 4.3 kW
• Continuous Output Current: 9 A
• Peak Output Current: 27 A (duration 3 seconds)
• Supported Supply Voltage Options:
  • 400 V three-phase (±10 %)
  • 230 V three-phase (±10 %)
  • 230 V single-phase (±10 %)
• Supply Frequency: 50/60 Hz (±5 %)
• Electrical Connection Details:
  • CN4: 0.2–15 mm² (AWG 24–16)
  • CN5: 0.5–16 mm² (AWG 20–6)
  • CN6: 0.75–16 mm² (AWG 18–6)
  • CN7: 0.2–6 mm² (AWG 24–10)
• Tightening Torque for CN1: 2.5 N·m (22.13 lbf·in)
• Compatible Motor Series:
  • SH3 servo motors: 100 mm (3–4 stacks), 140 mm (1 stack)
  • MH3 servo motors: 100 mm (2 stacks)
  • SHS servo motors

Applications

The Schneider Electric LXM62DD27D21000 is engineered to excel in critical industrial applications, providing significant advancements in machine performance and reliability. Its robust design and advanced features make it indispensable for:

• Advanced packaging machinery automation
• High-speed material handling systems
• Precision-demanding general machine control operations
• Complex multi-axis servo applications within PacDrive 3 ecosystems

Why Choose This Model?

Opting for the Schneider Electric LXM62DD27D21000 offers a distinct advantage, setting new standards in industrial automation. This compact dual drive is not just about its impressive 4.3 kW continuous power; it represents a comprehensive solution designed for modern manufacturing challenges. Key benefits include:

• A space-saving dual drive design with potent 4.3 kW continuous power.
• Seamless integration and high-speed data exchange via integrated SERCOS III communication, optimized for PacDrive 3 systems.
• Assured global compliance through comprehensive certifications: CE, UL, CSA, TÜV, and EAC.
• Enhanced machine and operator safety with the integrated STO (Safe Torque Off) functionality.
• Optimized and broad compatibility with SH3, MH3, and SHS servo motor series for versatile system configurations.

Order Now

Secure the competitive edge for your operations with the Schneider Electric LXM62DD27D21000 Lexium 62 dual drive. This high-performance component is readily available and capable of worldwide shipping to meet your project timelines. Explore our complete selection of Lexium 62 Drives or delve into the broader range of Schneider Electric Lexium Servo Drives & Motors Solutions to discover more innovative automation products.
