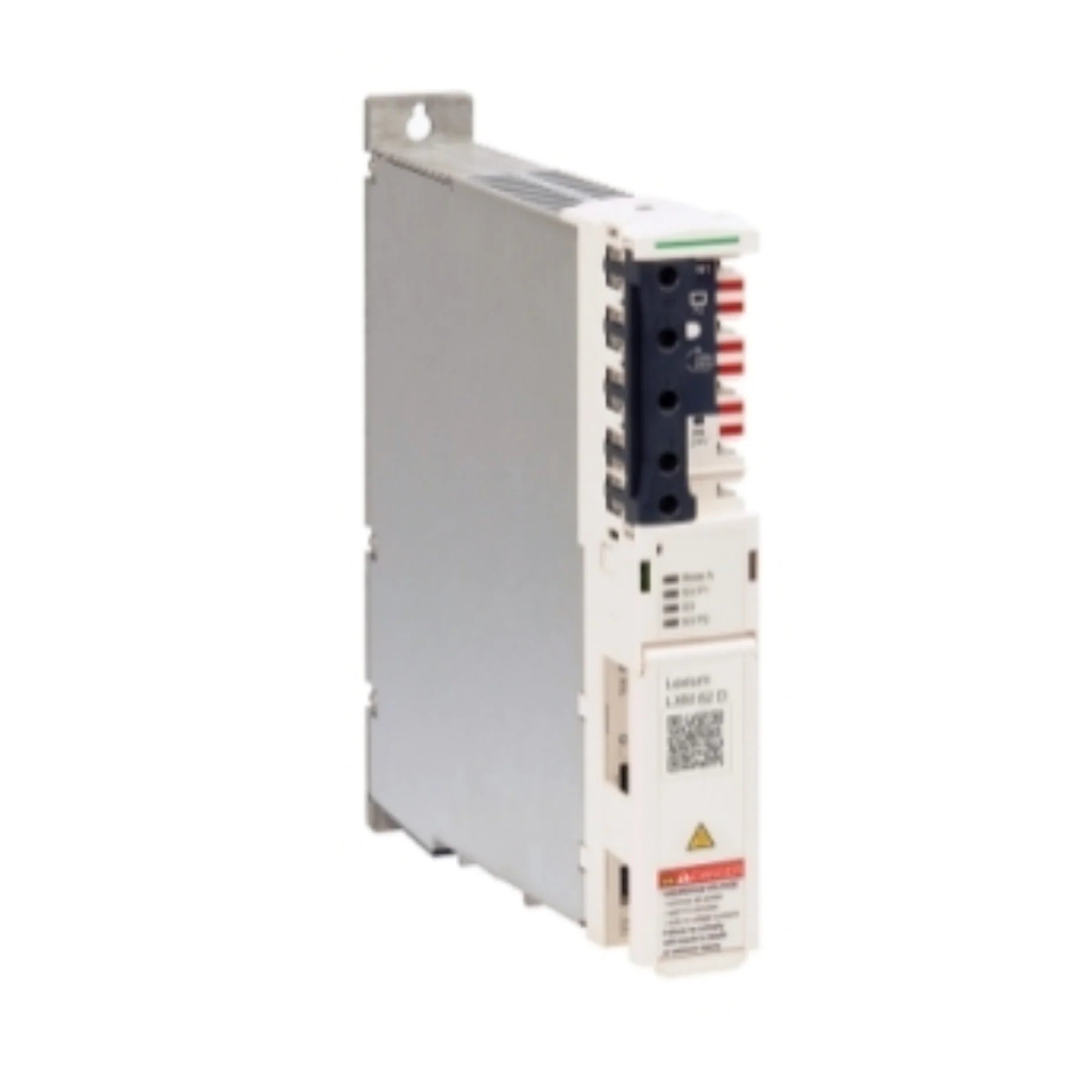

Schneider Electric LXM62DD27C21000

Overview

Unleash unparalleled precision and reliability in your industrial automation systems with the Schneider Electric LXM62DD27C21000 Lexium 62 single drive. Engineered for seamless integration into sophisticated PacDrive 3 multi-axis environments, this robust servo drive delivers consistent, high-performance control. With a continuous power rating of 2.4 kW and a stable 5 A output current at 4 kHz, it's ideally suited for demanding applications that require accurate and dynamic motion control. Its compact IP20 housing and lightweight 3 kg design make it a versatile solution, while integrated SERCOS III communication ensures real-time data exchange and superior system responsiveness. This unit is an indispensable component for modern manufacturing, offering the foundational control necessary for achieving peak operational efficiency.

Key Features

• Model Identification: LXM62DD27C21000, part of the distinguished Schneider Electric Lexium 62 & Motors range.
• Drive Classification: High-performance Single Drive.
• Power Output: Supplies a continuous rated power of 2.4 kW.
• Input Voltage: Operates efficiently on a 24 V DC supply.
• Current Delivery: Delivers a consistent continuous output current of 5 A at 4 kHz.
• Integrated I/O Capabilities: Equipped with 2 digital inputs, 2 touch probe inputs for precise sensing, and 2 digital outputs for comprehensive control.
• Communication Protocol: Features integrated SERCOS III for ultra-fast, synchronized network communication.
• Connection Interface: Utilizes a secure connector type for electrical hook-up.
• Environmental Protection: Boasts an IP20 degree of protection (conforming to IEC 60529), safeguarding against solid objects.
• Physical Attributes: Remarkably lightweight at just 3 kg (approximately 6.6 lb).
• Motor Compatibility: Perfectly matched with SH3 servo motors (available in 70 mm frame size with 2 or 3 motor stacks).

Technical Specifications

• Continuous Power Rating: 2.4 kW.
• Nominal Supply Voltage: 24 Volts DC.
• Communication Standard: SERCOS III for synchronized motion.
• System Compatibility: Optimized for seamless integration with PacDrive 3 LMC Pro, Pro2, and Eco motion controllers.
• Global Certifications: Complies with international standards including CE, CSA, EAC, TÜV, and UL, ensuring broad market acceptance and safety.
• Adherence to Standards: Meets stringent requirements such as EN 61800-5-1, EN/ISO 13849-1, EN/ISO 13849-2, UL 508C, CSA C22.2 No 14, EN 62061, and IEC 61508.

Applications

The Schneider Electric LXM62DD27C21000 single drive is a versatile powerhouse, designed to excel in various demanding industrial settings:

• High-Speed Packaging Operations: Critical for machines requiring rapid and precise product handling and wrapping.
• General Industrial Automation: Enhances efficiency and control across a broad spectrum of automated manufacturing processes.
• Material Handling & Conveying Systems: Provides accurate and reliable control for sorting, transport, and robotic loading applications.
• Multi-Axis Control in PacDrive-based Systems: The cornerstone for complex motion sequences in advanced automation architectures.

Why Choose This Model?

Opting for the Schneider Electric LXM62DD27C21000 means investing in proven performance and future-proof technology:

• Power-Packed Performance: A robust 2.4 kW drive within a remarkably compact footprint, saving valuable cabinet space without compromising on power.
• Real-Time Network Integration: Integrated SERCOS III communication ensures deterministic data exchange and superior synchronization across your network, crucial for high-speed applications.
• Enhanced Flexibility: Offers versatile I/O capabilities, including dedicated touch probe support, allowing for precise feedback and adaptability to diverse sensor configurations.
• Global Compliance and Assurance: Extensive global certifications (CE, UL, CSA, TÜV, EAC) provide peace of mind regarding safety, quality, and regulatory adherence worldwide.
• Optimized System Synergy: Specifically designed and optimized for seamless integration with PacDrive 3 automation platforms and SH3 servo motors, guaranteeing maximum compatibility and system efficiency.

Order Now

Elevate your automated processes with the Schneider Electric LXM62DD27C21000 Lexium 62 single drive. This high-performance component is readily available and dispatched globally to meet your project timelines. Explore our complete range of Lexium 62 Drives or delve into the full spectrum of Schneider Electric Lexium Servo | Drives & Motors Solutions to discover how we can empower your operations.
