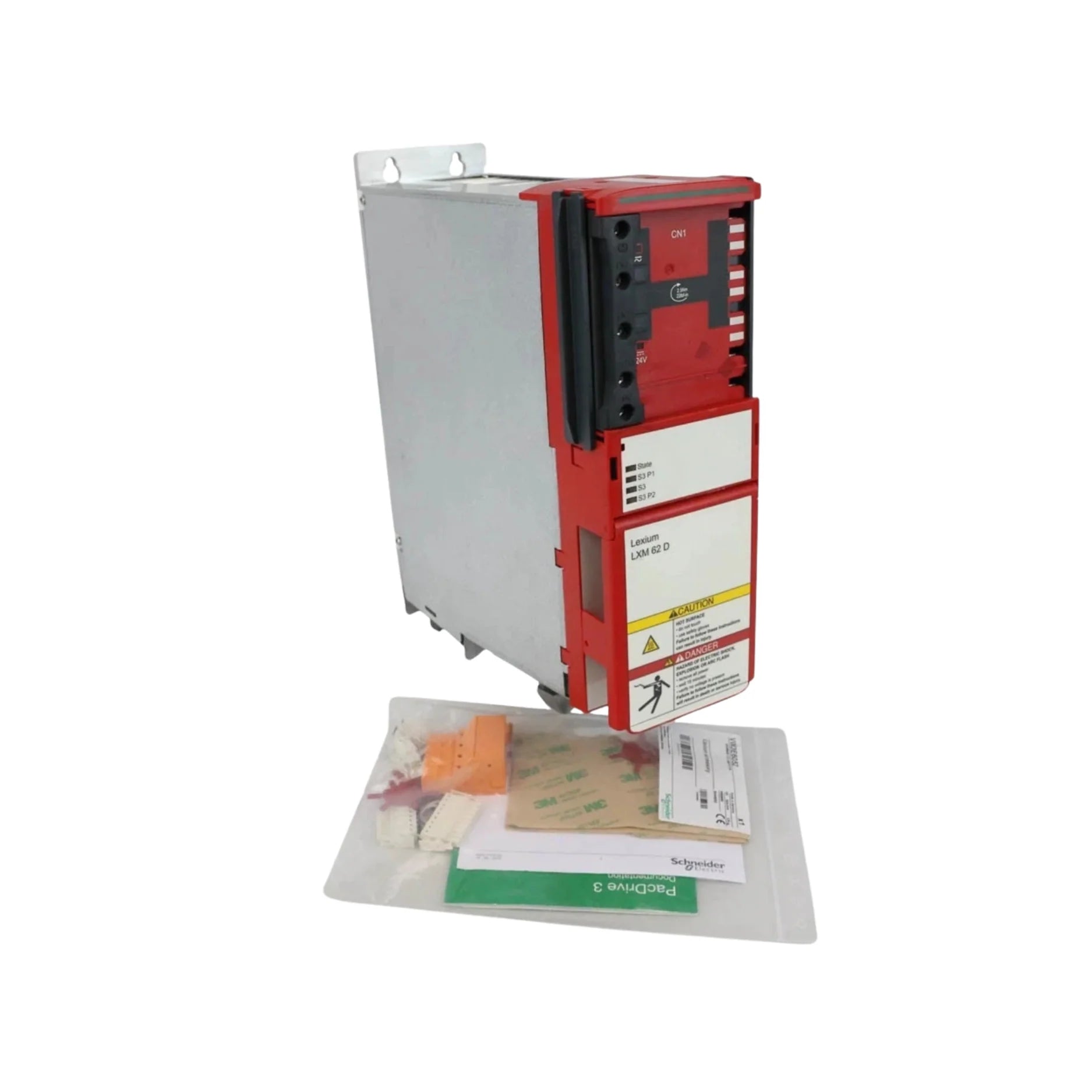

Schneider Electric LXM62DC13E21000

Overview

Experience the pinnacle of industrial motion control with the Schneider Electric LXM62DC13E21000. This Lexium 62 single drive, an integral part of the innovative PacDrive 3 series, is meticulously designed to meet the rigorous demands of high-performance automation environments. Delivering a robust 24.7 kW of nominal power and a continuous output current of 50 A (peaking at 130 A), this unit guarantees exceptional operational efficiency and reliability for the most critical applications. Its compact design belies a powerful core, making it a strategic choice for modern manufacturing and processing lines. The integrated SERCOS III communication protocol ensures seamless and precise multi-axis synchronization when paired with PacDrive 3 controllers, enabling sophisticated control over intricate machinery. Coupled with an array of advanced safety functionalities, the LXM62DC13E21000 sets a new benchmark for secure and productive automation solutions.

Key Features

• Precision Power Delivery: Provides 24.7 kW nominal power and a continuous current of 50 A (peak 130 A at 4 kHz) for dynamic performance.
• Integrated Safety Suite: Equipped with comprehensive safety functions including STO, SS1, SS2, SOS, SMS, SLS, and SDI for enhanced machine protection and operator security.
• Seamless Communication: Features integrated SERCOS III for real-time interaction and flawless multi-axis coordination within the PacDrive 3 ecosystem.
• Flexible Power Input: Supports versatile power supplies, accepting 400 V three-phase, 230 V three-phase, and 230 V single-phase connections (all ±10 %).
• Robust Construction: Weighing 6.8 kg with an IP20 protection rating, ensuring durability in demanding industrial settings.
• Extensive Motor Compatibility: Optimized for use with a wide range of SH3, MH3, and SHS series servo motors, offering broad application flexibility.
• Global Compliance: Certified to major international standards including CE, UL, CSA, EAC, and TÜV, ensuring worldwide applicability.

Technical Specifications

• Brand: Schneider Electric
• Range: PacDrive 3 – Lexium 62
• Model: LXM62DC13E21000
• Type: Single Drive
• Rated Power (Nominal/Continuous): 24.7 kW
• Continuous Current: 50 A at 4 kHz
• Peak Current: 130 A at 4 kHz
• Supply Voltage: 400 V three-phase (±10 %), 230 V three-phase (±10 %), 230 V single-phase (±10 %)
• Supply Frequency: 50/60 Hz (±5 %)
• Switching Frequency: 8 kHz
• Overvoltage Category: III
• Weight: 6.8 kg (15 lb)
• Protection: IP20
• Safety Functions: STO, SS1, SS2, SOS, SLS, SMS, SDI
• Inputs: 2 digital, 2 touch probe
• Outputs: 2 digital
• Input Voltage: 24 V DC (±20–25 %)
• Communication: Integrated SERCOS III
• Electrical Terminals: CN4, CN5, CN6, CN7
• Tightening Torque (CN1): 2.5 N·m (22.1 lbf·in)
• Compatible Servo Motors: SH3 (140 mm 4 stacks, 205 mm 1–3 stacks), MH3 (140 mm 2–3 stacks, 190 mm 1–3 stacks), SHS series
• Net Dimensions: 310 mm (H) × 270 mm (D) × 89.5 mm (W)
• Standards: IEC 61800-3, IEC 61800-5-1, IEC 61800-5-2, IEC 62061, IEC 61508, UL 508C, ISO 13849-1/2, CSA C22.2 No 14
• Certifications: CE, UL, CSA, EAC, TÜV

Applications

The Schneider Electric LXM62DC13E21000 is engineered for a diverse array of advanced industrial applications where precision, speed, and safety are paramount. Its robust performance capabilities make it an indispensable component in:

• High-Performance Packaging Machinery: Ensuring rapid and accurate product handling and sealing.
• Material Handling Automation: Optimizing efficiency in conveyor systems, automated storage and retrieval systems (AS/RS), and sorting equipment.
• Industrial Robotics and Multi-Axis Control: Providing the precise control necessary for complex robotic movements and synchronized multi-axis operations.
• General Machine Control: Ideal for any machinery requiring sophisticated motion control coupled with stringent safety protocols.

Why Choose This Model?

Opting for the Schneider Electric LXM62DC13E21000 signifies a commitment to superior performance and operational integrity. This single drive stands out due to its exceptional power output, delivering 24.7 kW for demanding tasks with continuous current handling of 50 A. Its comprehensive suite of integrated safety functions is not an add-on, but a core design principle, ensuring maximum protection for personnel and equipment. Seamless integration within the PacDrive 3 ecosystem via SERCOS III communication translates to streamlined setup, reduced complexity, and enhanced system responsiveness. Furthermore, its broad compatibility with various SH3, MH3, and SHS motors provides unmatched flexibility in system design and upgrades. With global certifications from leading bodies, this drive is a future-proof investment for any enterprise seeking reliable, high-performing, and globally compliant automation solutions.

Order Now

Secure the competitive edge for your industrial operations with the Schneider Electric LXM62DC13E21000 Lexium 62 Single Drive. This high-performance drive is readily available for immediate dispatch and can be shipped worldwide to meet your project timelines. Elevate your automation capabilities today.
