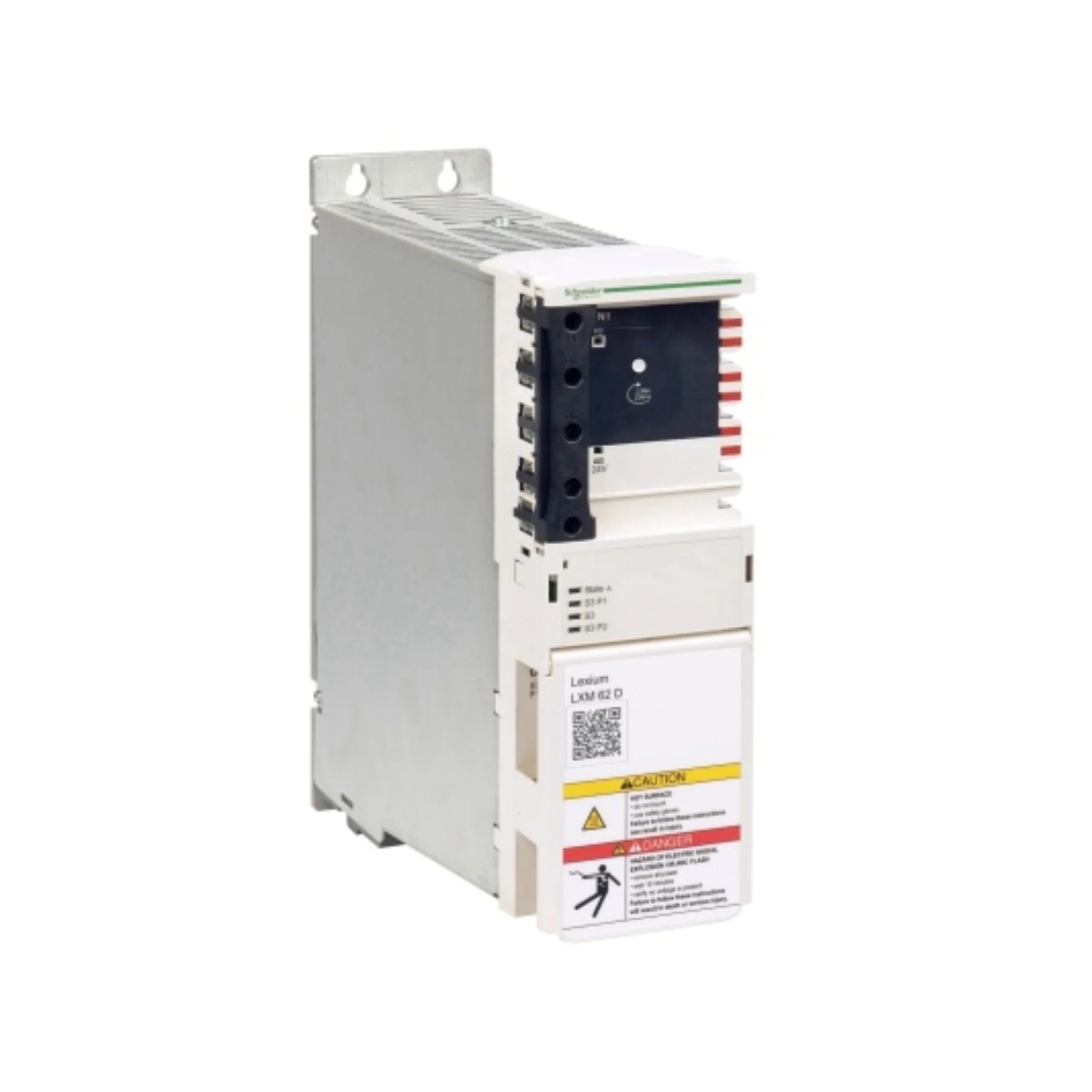

Schneider Electric LXM62DC13C21000

Overview

Engineered for high-demand industrial environments, the Schneider Electric LXM62DC13C21000 Lexium 62 single drive stands as a cornerstone for advanced automation systems. Part of the innovative PacDrive 3 ecosystem, this robust drive delivers an impressive 24.7 kW of continuous power, backed by a 50 A output current at 4 kHz. It's meticulously crafted to meet the stringent requirements of large-scale, multi-axis applications where unparalleled precision, unwavering performance, and intrinsic safety are paramount. Leveraging the cutting-edge SERCOS III communication protocol, the LXM62DC13C21000 integrates flawlessly into existing PacDrive 3 networks, facilitating synchronous and efficient operation. Its comprehensive I/O capabilities, including two digital inputs, two touch probe inputs, and two digital outputs, provide exceptional adaptability for even the most intricate operational demands. With international certifications and an IP20-rated enclosure, this unit offers robust reliability, making it the ideal choice for general machine control, advanced packaging automation, and rigorous material handling systems around the globe.

Key Features

• Brand & Model: Schneider Electric LXM62DC13C21000, a premier Lexium 62 series single drive.
• Exceptional Power Output: Provides 24.7 kW continuous power for demanding applications.
• High Current Capacity: Delivers 50 A continuous output current (at 4 kHz) with a peak current of 130 A (for 3 seconds at 4 kHz).
• Integrated Communication: Features seamless SERCOS III for robust, real-time control within PacDrive 3 systems.
• Versatile I/O: Equipped with 2 digital inputs, 2 touch probe inputs, and 2 digital outputs for flexible integration.
• Broad Motor Compatibility: Fully compatible with a range of Schneider Electric servo motors, including SH3 (140 mm, 4 stacks; 205 mm, 1-2 stacks), MH3 (140 mm, 2-3 stacks; 190 mm, 1-3 stacks), and SHS series.
• Robust Design: IP20 rated (IEC 60529) enclosure ensures reliable operation in industrial settings.

Technical Specifications

• Device Type: Single Drive
• Rated Power (Continuous/Nominal): 24.7 kW
• Rated Supply Voltage: 24 V DC
• Supply Voltage Options (for connected systems): 400 V three-phase (±10%), 230 V three-phase (±10%), 230 V single-phase (±10%)
• Supply Frequency: 50/60 Hz (±5%)
• Continuous Output Current: 50 A at 4 kHz
• Peak Current: 130 A (for 3 seconds) at 4 kHz
• Switching Frequency: 8 kHz
• Communication Protocol: Integrated SERCOS III
• Overvoltage Category: III
• Degree of Protection: IP20 (according to IEC 60529)
• Net Weight: 6.8 kg (approximately 15 lb)
• Certifications: CE, CSA, EAC, TÜV, UL
• Applicable Standards: UL 508C, EN 61800-5-1, EN 61800-3, EN 61800-5-2, IEC 61508, EN/ISO 13849-1, EN/ISO 13849-2, CSA C22.2 No 14

Applications

The LXM62DC13C21000 is engineered for a diverse array of demanding applications requiring high power and precise motion control:

• Advanced Packaging Systems: Ideal for large-scale and high-speed packaging machinery where accuracy and rapid response are crucial.
• Industrial Material Handling: Optimizing complex conveyor systems, robotic palletizers, and automated storage and retrieval systems.
• High-Power Servo Automation: Empowering critical functions in manufacturing lines that demand robust and dynamic servo control.
• Multi-Axis Synchronization: Perfect for seamless integration and coordinated motion within sophisticated PacDrive 3 environments.
• General Machine Control: Providing reliable and efficient power conversion for a wide spectrum of industrial machinery.

Why Choose This Model?

The Schneider Electric LXM62DC13C21000 offers a compelling suite of advantages for industrial automation specialists:

• Superior Power Density: Delivers an exceptional 24.7 kW continuous power, enabling high-performance operation in even the most challenging applications.
• Effortless Integration: Built-in SERCOS III connectivity ensures smooth, high-speed communication with PacDrive 3 controllers, simplifying system design and deployment.
• Globally Compliant & Safe: Adherence to numerous international certifications and safety standards guarantees dependable and secure operation across various markets.
• Optimized Motor Synergy: Designed for seamless interoperability with a range of SH3, MH3, and SHS servo motors, offering flexibility in motor selection and precise motion control.
• Industrial Durability: Its robust, IP20-rated construction ensures longevity and consistent performance in harsh industrial environments.

Order Now

Elevate your automation capabilities with the Schneider Electric LXM62DC13C21000 Lexium 62 single drive. This high-performance unit is readily available and can be shipped worldwide to support your critical operations. Invest in precision, power, and reliability for your next project.
