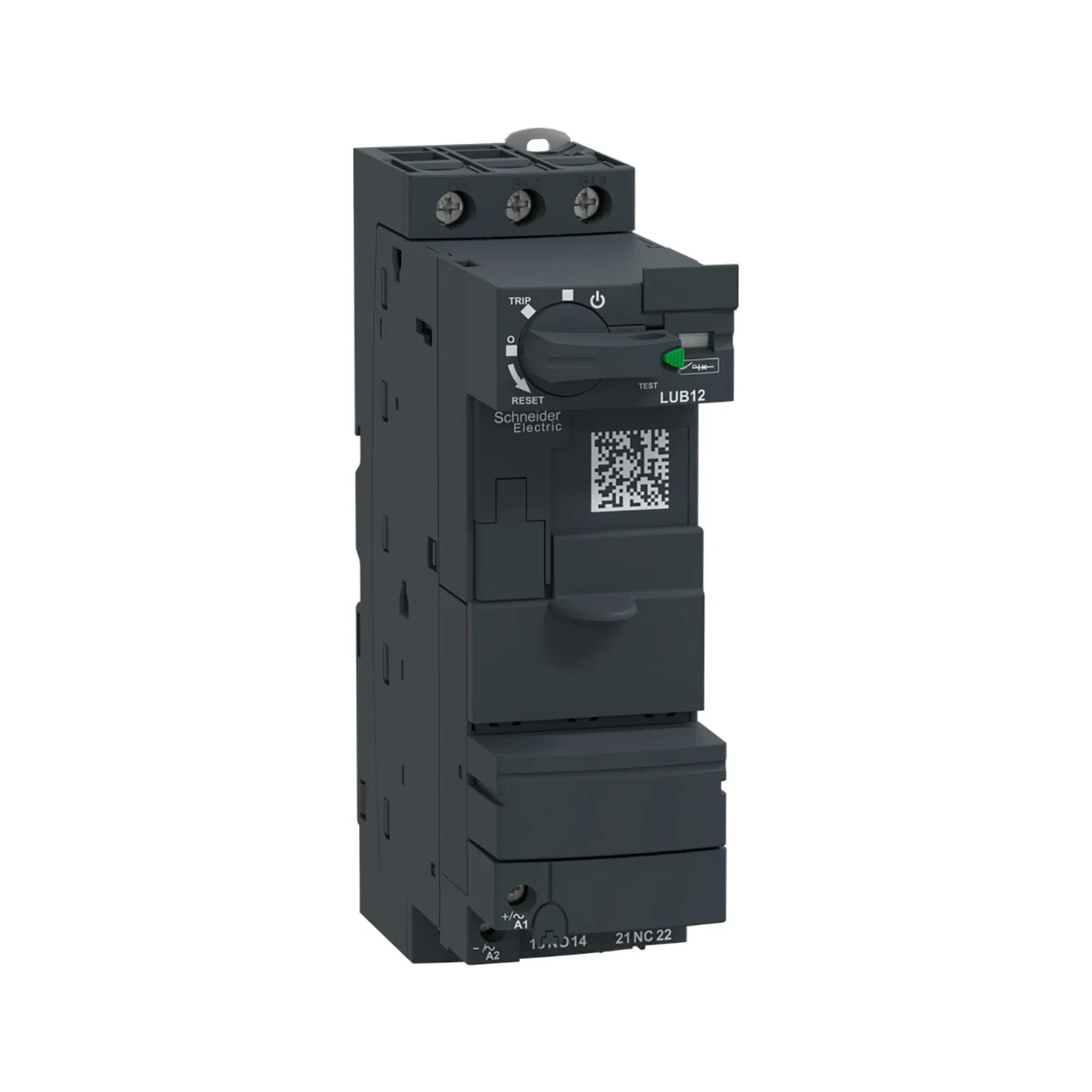

Schneider Electric LUB12

Overview

Elevate your motor control systems with the Schneider Electric LUB12, a foundational motor starter base from the acclaimed TeSys U series. Engineered for efficiency and reliability, this unit is your go-to solution for direct-on-line (DOL) starting of motors drawing up to 12 A. Designed for seamless integration, the LUB12 forms the bedrock of a sophisticated modular motor starter assembly, offering unparalleled flexibility when combined with complementary control and protection modules. Experience streamlined motor management precisely tailored for demanding industrial environments.

Key Features

• Robust Current Rating: Handles up to 12 A, suitable for a wide range of industrial motors.
• Versatile Motor Power Capability: Efficiently manages motors up to 5.5 kW at 400V (AC-3) and up to 7.5 HP at 480V, ensuring broad application compatibility.
• Integrated Auxiliary Contacts: Features pre-installed 1 NO + 1 NC contacts for enhanced control circuit flexibility.
• Expansive Compatibility: Fully integrates with LUCA, LUCB, and LUCC control units, alongside various add-on function modules.
• Flexible Mounting Options: Supports both standard DIN rail and direct panel mounting for versatile installation.
• Exceptional Electrical Durability: Engineered for over 1 million operations (AC-3), promising extended operational life.
• Global Compliance: Meets stringent industry standards including IEC 60947-4-1, UL, and CSA, guaranteeing international applicability and safety.

Technical Specifications

• Model Designation: LUB12
• Product Series: TeSys U
• Insulation Voltage Rating: 690 V
• Operational Voltage Range: Up to 690 V AC
• Short-Circuit Protection Requirement: Designed for use with an external GVU circuit breaker or appropriate fuse for robust protection.
• Control Circuit Voltage: Determined by the specific attached control module, allowing for customization.
• Ingress Protection: IP20 rating, providing protection against solid objects larger than 12.5mm.
• Operating Temperature Range: Functions reliably in temperatures from -20°C to +60°C.
• Physical Dimensions (W x H x D): Approximately 45 mm x 171 mm x 151 mm, showcasing its compact footprint.
• Unit Weight: Approximately 1.1 kg.

Applications

The Schneider Electric LUB12 is an indispensable component across a multitude of industrial sectors, providing critical motor control for:

• Centralized Motor Control Centers (MCCs), optimizing space and performance.
• Pumping and Compressor Systems, ensuring reliable and continuous operation.
• Ventilation Fans and Material Handling Conveyors, enhancing operational efficiency.
• Diverse Industrial Machinery and Original Equipment Manufacturer (OEM) Integration, offering a dependable core for custom solutions.

Why Choose This Model?

Investing in the Schneider Electric LUB12 means choosing a motor starter base that delivers on all fronts: performance, reliability, and adaptability. Its innovative design prioritizes space efficiency without compromising on power or functionality, making it an ideal choice for modern industrial setups. The TeSys U series’ renowned modularity allows for effortless expansion and customization, future-proofing your operations. With a strong commitment to quality and compliance, the LUB12 stands as a testament to Schneider Electric's engineering excellence, providing a robust foundation for critical motor applications.

Order Now

Secure your Schneider Electric LUB12 today and experience the difference of premium motor control. Benefit from our swift order processing and dependable worldwide delivery options.
