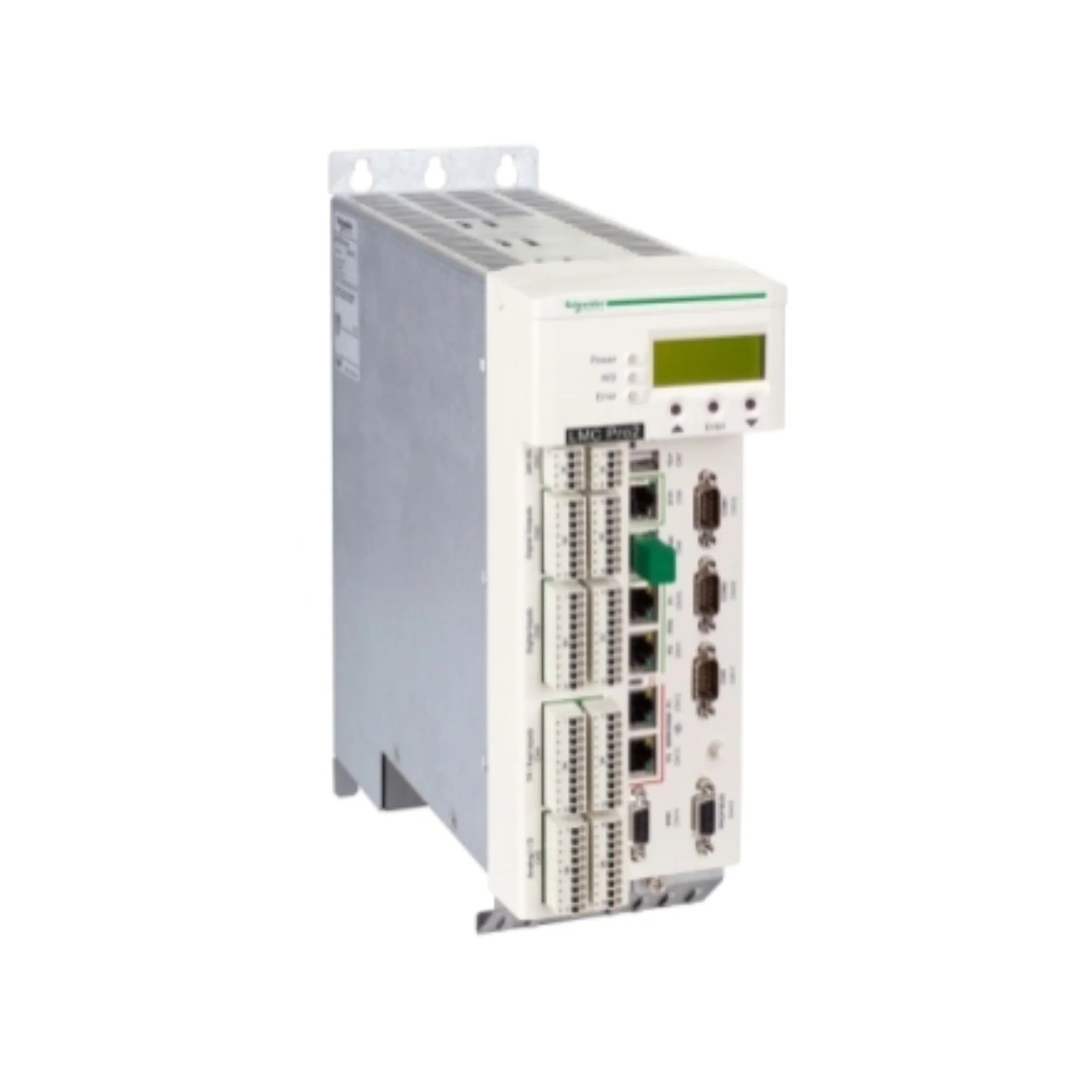

Schneider Electric LMC402CBD10000

Overview

Unlock the full potential of your machinery with the Schneider Electric LMC402CBD10000, a premier PacDrive 3 motion controller engineered for the most demanding automation environments. This sophisticated unit is adept at orchestrating up to 16 distinct motion axes, making it an indispensable asset for intricate, multi-faceted industrial applications. Its advanced I/O configuration, featuring a rich array of digital and analog inputs and outputs, ensures unparalleled versatility and precise command over both motion kinematics and auxiliary processes. With a resilient 24 V DC power supply, optimized power consumption, and substantial onboard memory (1 GB DDR3L RAM and 256 kB NVRAM), the LMC402CBD10000 delivers consistent, high-fidelity performance. Compatibility with all IEC 61131-3 programming methodologies, coupled with an expansive suite of connectivity options—including Sercos, RT-Ethernet, PacNet, Profibus DP, and CANopen—cements its position as a cornerstone for modern, interconnected manufacturing ecosystems.

Key Features

• Precision Multi-Axis Control: Manages up to 16 motion axes for complex and synchronized movements.
• Extensive Input/Output Flexibility: Boasts 20 digital inputs, 16 digital outputs, 4 interrupt inputs, 16 touch probe inputs, 2 analog inputs, and 2 analog outputs, facilitating comprehensive process integration.
• Robust Power & Memory: Operates efficiently on a 24 V DC supply with 36 W consumption, backed by 1 GB DDR3L RAM and 256 kB NVRAM for steadfast operation.
• Universal Programming Support: Fully compatible with IEC 61131-3 programming languages, including SFC, FBD, ST, IL, CFC, and LD.
• Advanced Connectivity Array: Features multiple Ethernet ports (Sercos, RT-Ethernet, PacNet, 10/100/1000BASE-T), CANopen, Profibus DP, RS232, RS422/RS485, and USB for seamless integration into diverse network architectures.
• Compact & Durable Design: Encased in an IP20-rated housing, ensuring resilience in industrial settings.

Technical Specifications

• Brand: Schneider Electric
• Series: PacDrive 3
• Model Designation: LMC402CBD10000
• Supported Axes: 16 motion axes
• Input Voltage: 24 V DC (<1 A)
• Energy Consumption: 36 W
• Memory Configuration: 1 GB DDR3L RAM, 256 kB NVRAM
• Programming Standards: IEC 61131-3 (SFC, FBD, ST, IL, CFC, LD)
• Digital Inputs: 20 (IEC 61131-2 Type 1)
• Interrupt Inputs: 4
• Touch Probe Inputs: 16
• Digital Outputs: 16, each rated at 250 mA
• Analog Inputs: 2 (±10 V / ±20 mA, 12-bit resolution)
• Analog Outputs: 2
• Ethernet Interfaces: 2 × RJ45 (Sercos), 2 × RJ45 (RT-Ethernet), 1 × RJ45 (PacNet), 1 × RJ45 10/100/1000BASE-T (FTP/HTTP)
• CAN Interface: 1 × SUB-D 9 (CANopen)
• Profibus DP Interface: 1 × SUB-D 9
• Serial Ports: 1 × RS232 SUB-D 9 (COM1), 1 × RS422/RS485 SUB-D 9 (COM2)
• Encoder Port: 1 × SUB-D 9 master encoder port
• USB Port: 1 × Type A
• Dimensions (W × H × D): 100 × 310 × 243 mm (3.9 × 12.2 × 9.6 in)
• Unit Weight: 3.5 kg (7.7 lb)
• Protection Rating: IP20 (EN/IEC 60529)
• Operating Temperature Range: +5°C to +55°C (41°F to 131°F)
• Humidity: 5–95 % non-condensing
• Vibration Endurance: 3.5 mm (5–8.4 Hz), 10 m/s² (8.4–150 Hz)
• Shock Resistance: 150 m/s² for 6 ms
• Compliance: EN/IEC 61131-2, UL 508C, CSA C22.2
• Certifications: CE, CSA, EAC, cULus

Applications

The Schneider Electric LMC402CBD10000 excels in a broad spectrum of industrial applications demanding high precision and reliability:

• Sophisticated robotics and synchronized automation lines.
• High-speed manufacturing, packaging, and processing machinery.
• Industrial systems requiring integrated Profibus DP and CANopen communication.
• Complex control tasks blending both digital and analog signals.
• Advanced motion and process automation with real-time network demands.

Why Choose This Model?

The Schneider Electric LMC402CBD10000 stands out as a superior choice for several compelling reasons:

• Scalable Performance: Capable of managing up to 16 motion axes, it offers scalable control for even the most extensive industrial setups.
• Unmatched I/O Integration: Provides a comprehensive suite of digital, analog, and specialized touch probe inputs, ensuring complete system visibility and control.
• Power and Stability: Engineered with robust memory and processing capabilities to guarantee stable, high-performance operation in critical applications.
• Extensive Communications Backbone: Supports a wide array of industrial communication protocols, including advanced Ethernet options, Profibus, and CANopen, for seamless data exchange.
• Schneider Electric Assurance: Benefits from Schneider Electric's renowned reputation for quality, innovation, and global support, complete with industry-leading certifications.

Order Now

Elevate your automation capabilities with the Schneider Electric LMC402CBD10000 PacDrive 3 motion controller. This cutting-edge solution is ready for immediate deployment and ships globally to optimize your operations. Explore additional PacDrive LMC Controllers and the complete range of Schneider Electric Motion Control & Automation Solutions for a truly integrated system.
