Schneider Electric LMC101CAA10000

Overview

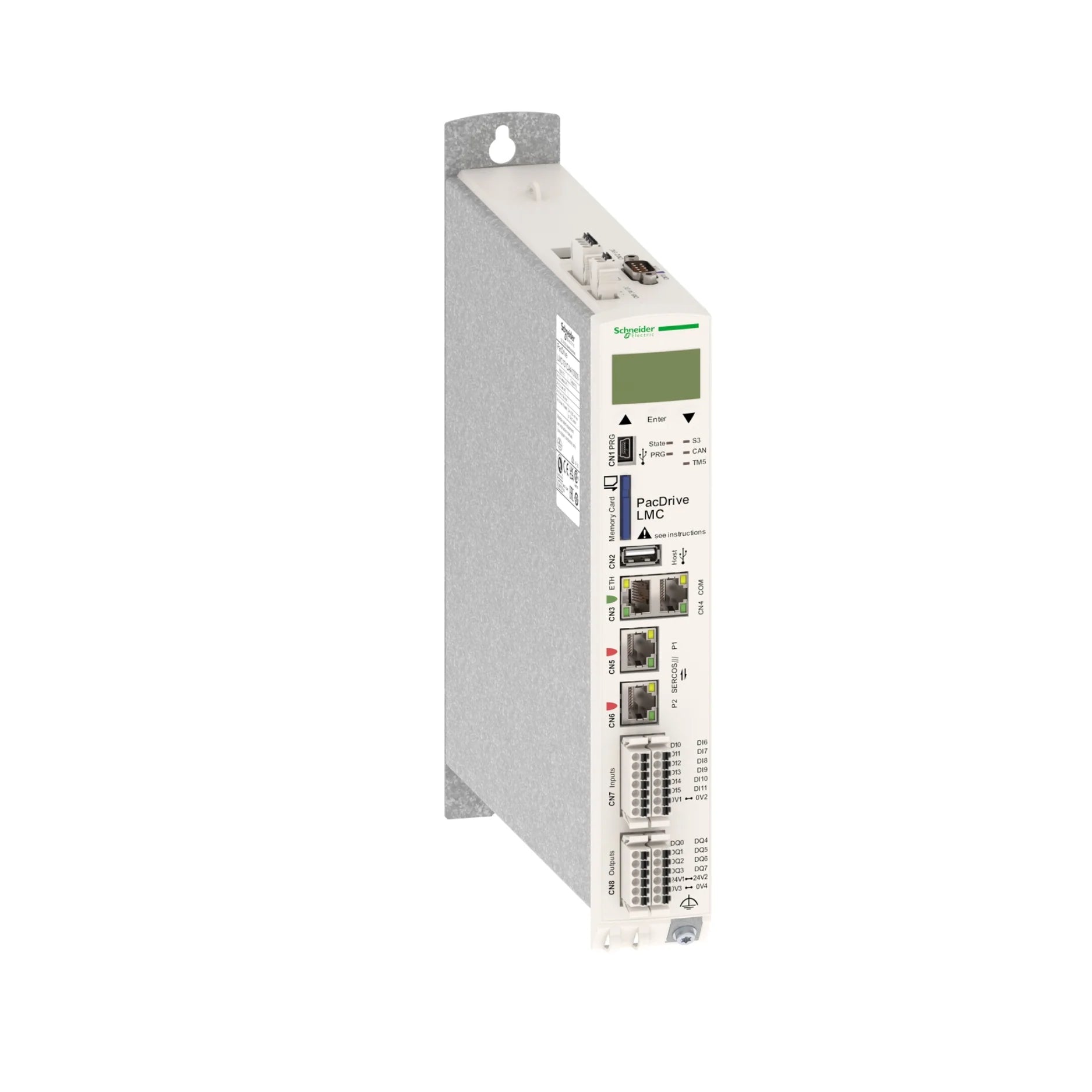

Elevate your automation capabilities with the Schneider Electric LMC101CAA10000 PacDrive 3 motion controller, a state-of-the-art solution designed for intricate multi-axis applications. This high-performance unit provides meticulous control for up to four motion axes, making it a cornerstone for advanced manufacturing and robotics. Beyond its exceptional motion capabilities, it integrates eight versatile digital inputs and eight powerful digital outputs, alongside four configurable touch probe inputs, ensuring comprehensive system interaction. Operating on a stable 24V DC supply and equipped with 512MB DDR2 RAM and 128KB NVRAM, the LMC101CAA10000 guarantees seamless and dependable execution of both complex motion sequences and integrated logic control tasks. Its exceptional flexibility is further enhanced by extensive programming support, including all major IEC 61131-3 languages such as Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD), empowering developers with diverse options. Critical for modern industrial environments, this controller offers seamless integration via multiple built-in communication interfaces, including Ethernet, CANopen, RS232/RS485, and USB, facilitating effortless networking and data exchange.

Key Features

• Brand: Schneider Electric
• Series: PacDrive 3
• Model Designation: LMC101CAA10000
• Supported Motion Axes: 4 simultaneous axes
• Nominal Supply Voltage: 24 V DC
• Peak Power Consumption: 30 W
• Integrated Memory: 512 MB DDR2 RAM for high-speed processing, 128 kB NVRAM for data retention
• Programming Adaptability: Full support for IEC 61131-3 languages (LD, ST, FBD, IL, CFC, SFC)
• Comprehensive I/O:
  • 8 digital inputs (compliant with IEC 61131-2 Type 1 standards)
  • 4 high-precision touch probe inputs (user-configurable filtering from 100 µs to 4.29 s)
  • 8 digital outputs, each capable of delivering 500 mA
• Extensive Connectivity:
  • 2 × Ethernet RJ45 ports dedicated for Sercos communication
  • 1 × Ethernet 10/100BASE-T RJ45 for standard network protocols (FTP/HTTP)
  • 1 × Ethernet RJ45 for master encoder connection
  • 1 × RS232/RS485 RJ45 serial link for flexible serial communication
  • 1 × CAN SUB-D 9 port for CANopen networking
  • 1 × USB type A interface for peripheral connectivity

Technical Specifications

• Physical Dimensions (W × H × D): 44 × 270 × 222 mm (approximately 1.7 × 10.6 × 8.7 inches)
• Unit Net Weight: 2.2 kg (approximately 4.9 lb)
• Environmental Protection: IP20 rating according to EN/IEC 60529
• Operational Temperature Range: +5…55 °C (41…131 °F)
• Humidity Tolerance: 5…95 % relative humidity, non-condensing
• Maximum Operating Altitude: 0…2000 m (0…6562 ft) above sea level
• Resistance to Vibration: Sustains 3.5 mm (at 5–8.4 Hz) and 10 m/s² (at 8.4–150 Hz)
• Shock Resistance: Withstands impacts of 150 m/s² for a duration of 6 ms
• Compliance Standards: Conforms to EN/IEC 61131-2, UL 508, CSA C22.2
• Industry Certifications: CE, EAC, CSA, cULus accredited

Applications

The Schneider Electric LMC101CAA10000 is a versatile motion control powerhouse suitable for a wide array of demanding industrial applications, including:

• High-speed multi-axis packaging and bottling machinery
• Precision robotics and intricate assembly line automation
• Advanced industrial motion synchronization across multiple systems
• Seamless integration of logic and motion control functionalities within a single platform
• Fully networked automation systems leveraging Ethernet and CANopen protocols for distributed control

Why Choose This Model?

Opting for the Schneider Electric LMC101CAA10000 PacDrive 3 motion controller means investing in reliability, precision, and future-proof design. This compact yet powerful controller offers 4-axis motion control, providing the foundation for highly dynamic and accurate operations. Its advanced I/O capabilities, featuring a blend of robust digital and highly sensitive touch probe inputs, ensure comprehensive process monitoring and control. The unparalleled flexibility offered by its broad support for all major IEC 61131-3 programming languages caters to diverse development needs, simplifying integration and customization. With multiple industrial communication ports, including the high-speed Sercos via Ethernet, seamless network integration and communication are guaranteed across your entire industrial ecosystem. As a certified and globally trusted Schneider Electric solution, the LMC101CAA10000 offers peace of mind through proven performance, stringent quality, and long-term support for your critical automation infrastructure. It represents an intelligent solution for optimizing productivity and minimizing downtime in complex industrial settings.

Order Now

The Schneider Electric LMC101CAA10000 PacDrive 3 motion controller, a critical component for high-performance automation, is readily available for purchase and can be shipped to locations worldwide. Enhance your operational efficiency and precision today. You may also explore the comprehensive range of other PacDrive LMC Controllers or discover the full spectrum of advanced Schneider Electric PacDrive | Motion Control & Automation Solutions to find the perfect fit for your industrial requirements.
