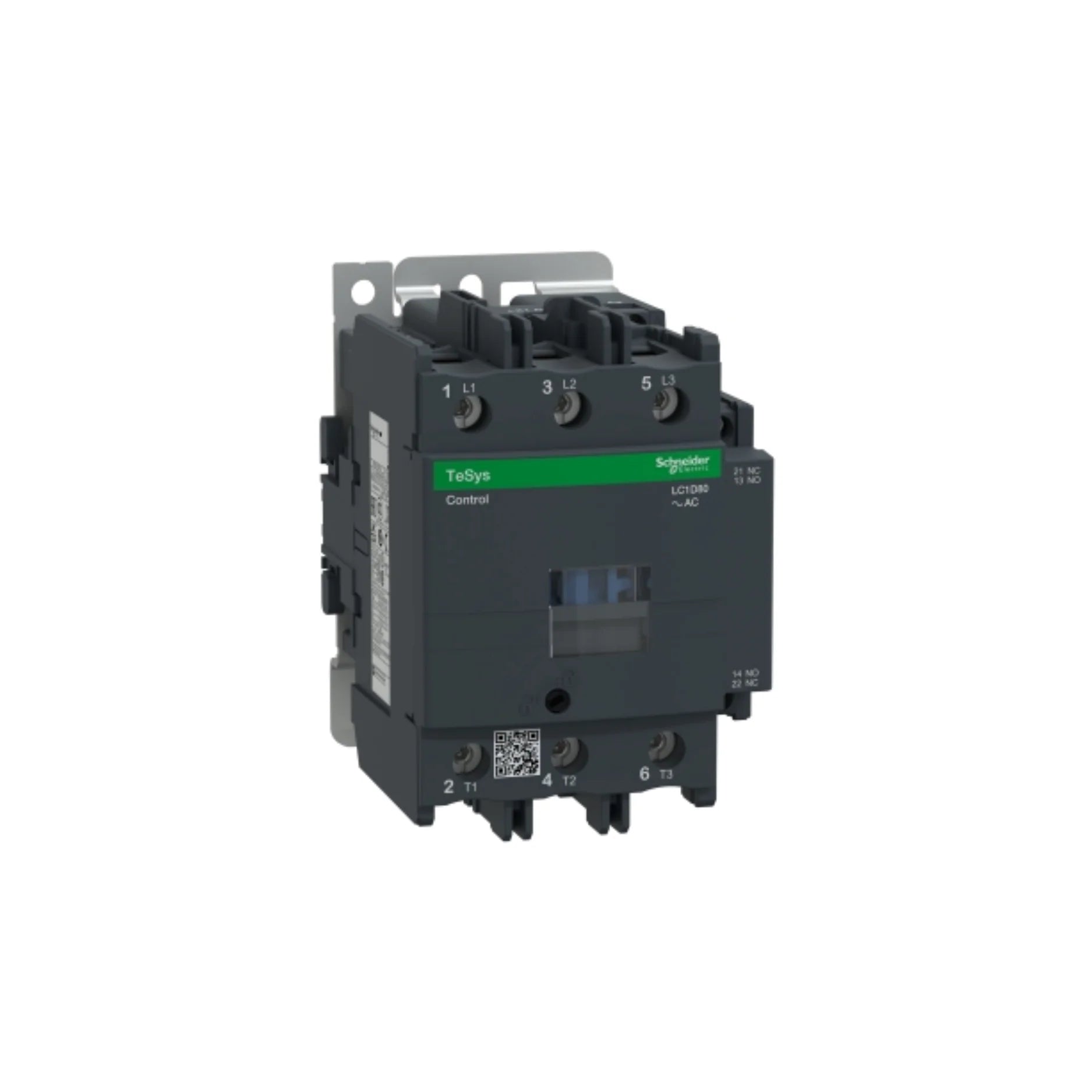

Schneider Electric LC1D80G7

Overview

Elevate your industrial control systems with the Schneider Electric LC1D80G7, a premier TeSys D series IEC contactor meticulously engineered for robust and consistent performance. This powerhouse component is designed to manage electric motors and diverse industrial loads with exceptional efficiency and reliability. Featuring a 3-pole configuration and a substantial 80 A current rating, it delivers steadfast switching capabilities and an extended operational lifespan, guaranteeing uninterrupted productivity. The integrated 120 V AC coil ensures stable and responsive operation, making the LC1D80G7 an indispensable asset for the most challenging industrial automation environments where precision and durability are paramount.

Key Features

• TeSys D Series Integration: A core component of Schneider Electric's renowned TeSys D line, promising quality and compatibility.
• 3-Pole Architecture: Provides versatile control for various three-phase motor applications.
• High Current Rating: Capable of handling up to 80 A, suitable for medium to heavy-duty industrial machinery.
• Optimized Coil Voltage: Operates efficiently with a 120 V AC (50/60 Hz) control coil for reliable activation.
• Integrated Auxiliary Contacts: Includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact for enhanced control logic and signaling.
• Flexible Mounting Options: Designed for convenient installation on standard DIN rails or directly onto panels, adapting to diverse enclosure setups.
• Exceptional Durability: Constructed for superior electrical and mechanical resilience, ensuring prolonged service in demanding conditions.

Technical Specifications

• Schneider Code: LC1D80G7
• Series: TeSys D (TeSys Deca)
• Number of Poles: 3
• Rated Operational Current: 80 A
• Rated Voltage: Up to 690 V AC
• Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
• Auxiliary Contacts: 1 NO + 1 NC
• Motor Power Rating (Typical):
  • 30 HP @ 240 V
  • 60 HP @ 480 V
  • 60 HP @ 600 V
• Mounting: DIN rail or panel
• Protection Rating: IP20
• Operating Temperature: -5 °C to +60 °C
• Certifications: CE, UL, CSA, IEC for global compliance and assured quality.

Applications

The Schneider Electric LC1D80G7 contactor is a versatile solution, perfectly suited for a broad array of industrial and commercial applications requiring dependable motor control:

• Advanced Motor Control Centers: Essential for integrating into complex motor starter and control panel configurations.
• HVAC System Management: Provides reliable switching for heating, ventilation, and air conditioning units, ensuring seamless climate control.
• Fluid Management Systems: Critical for the efficient operation of industrial pumps and compressors in water treatment, manufacturing, and more.
• Material Handling Equipment: Powers conveyor systems, hoists, and other material transport mechanisms with precision.
• General Industrial Machinery: A fundamental component for a multitude of industrial machines where robust and consistent power switching is required.

Why Choose This Model?

The Schneider Electric LC1D80G7 stands out as a superior choice for discerning engineers and facility managers due to its compelling blend of performance, design, and brand reputation:

• Unwavering Performance: Engineered for rock-solid switching of medium-to-high power motors, minimizing downtime and optimizing operational continuity.
• Streamlined Integration: Its compact footprint and flexible mounting options facilitate quick and hassle-free installation, saving valuable time and labor costs.
• Integrated Logic Support: The inclusion of built-in auxiliary contacts provides immediate functionality for intricate control logic circuits, enhancing system intelligence.
• Schneider Electric's Trusted Legacy: Benefit from the established pedigree of Schneider Electric's industrial solutions, renowned globally for innovation, safety, and durability. This model embodies decades of engineering excellence.
• Cost-Effective Reliability: Investing in the LC1D80G7 means investing in a component that delivers long-term reliability and efficiency, reducing maintenance overheads and overall cost of ownership.

Order Now

Optimize the heart of your industrial motor control systems with the Schneider Electric LC1D80G7 contactor. This robust, highly efficient, and meticulously engineered component is purpose-built to meet the rigorous demands of modern industrial applications. Secure your cutting-edge control solution today and experience the unparalleled performance and peace of mind that comes with Schneider Electric innovation.
