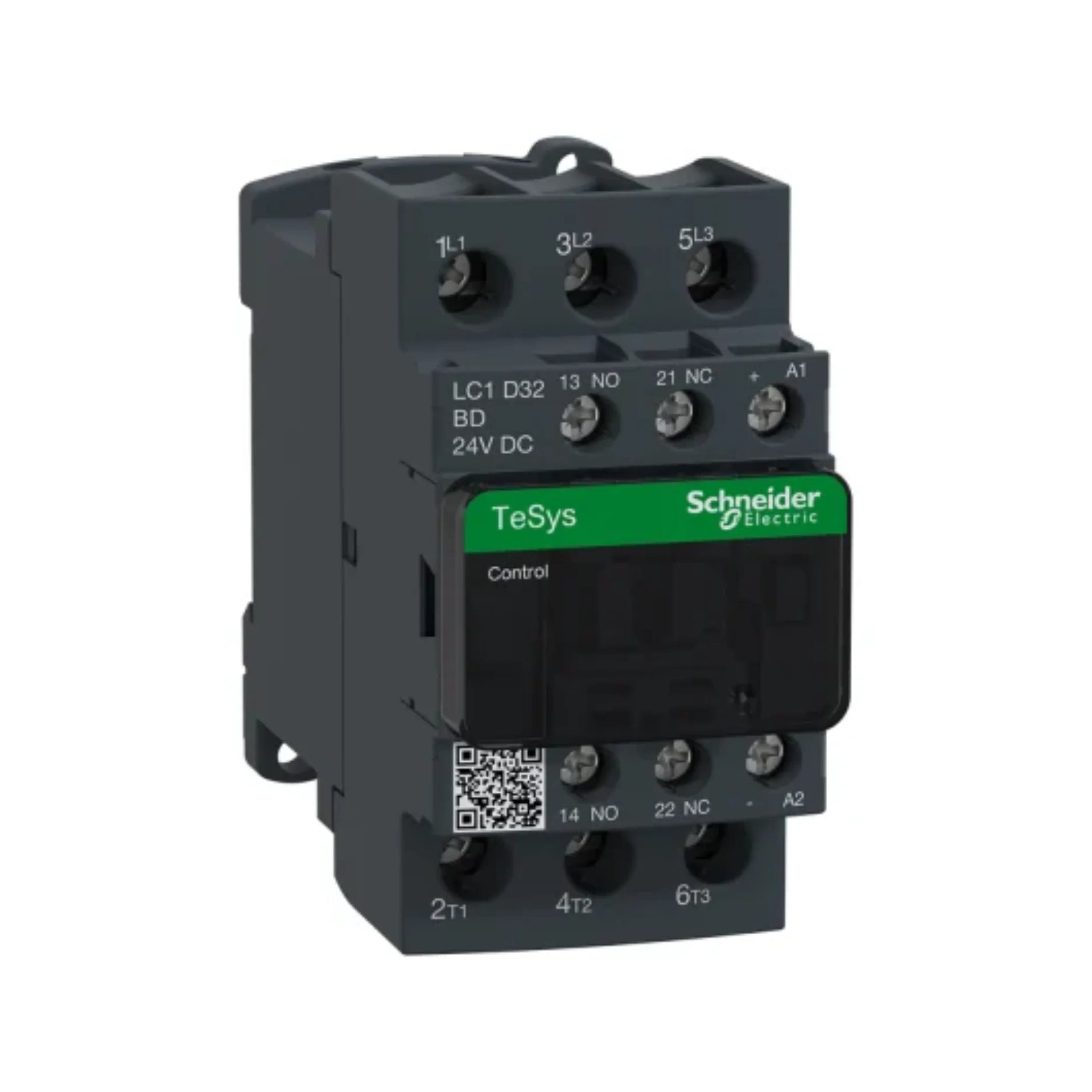

Schneider Electric LC1D32BD

Overview

Unleash robust motor control and seamless power switching with the Schneider Electric LC1D32BD. As a cornerstone of the renowned TeSys D series, this 3-pole contactor is engineered for peak performance in demanding industrial environments. It efficiently manages motors up to 15 kW (20 HP) at 400V, making it an indispensable component for numerous applications. The integrated 24V DC coil ensures precise and stable operation, while its compact footprint allows for flexible integration into a wide array of control systems and panels. Experience the blend of durability, advanced engineering, and compliance with global standards that define Schneider Electric.

Designed for longevity and operational efficiency, the LC1D32BD stands out with its high electrical and mechanical endurance, reducing maintenance needs and ensuring continuous productivity. Its versatile mounting options provide ease of installation, whether within existing DIN rail setups or directly to panels. This contactor is not just a component; it's a commitment to unwavering performance in the heart of your machinery.

Key Features

• Triple Pole Configuration: Optimally configured with 3 poles for comprehensive switching of three-phase power systems.
• Precision 24V DC Control: Operates reliably with a 24V DC coil, ideal for integrated industrial control circuits.
• Robust 32 A AC-3 Rating: Capable of handling significant current loads for motor control in AC-3 utilization categories.
• Versatile Power Handling:

  • Accommodates up to 15 kW at 400V.
  • Manages up to 20 HP at 480V.
• Integrated Auxiliary Contacts: Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact for enhanced control and signaling.
• Flexible Installation: Designed for either DIN rail or direct panel mounting to suit diverse enclosure designs.
• Global Compliance: Manufactured in accordance with rigorous standards including IEC 60947-4-1, UL, and CSA, ensuring global applicability and safety.

Technical Specifications

• Model Identifier: LC1D32BD
• Product Series: TeSys D
• Rated Insulation Voltage: 690 V for superior insulation capability.
• Electrical Longevity: Boasts an impressive electrical durability of up to 1 million operations (AC-3), ensuring extended service life.
• Mechanical Endurance: Engineered for exceptional mechanical durability, offering up to 10 million operations.
• Coil Power Consumption:

  • Inrush: Approximately 3.5 W
  • Holding: Approximately 3.5 W
• Operational Temperature Range: Functions efficiently in environments from -5°C to +60°C.
• Protection Rating: Achieves an IP20 rating, providing protection against solid objects.
• Physical Dimensions (W x H x D): Compact profile at approximately 45 mm x 77 mm x 86 mm.
• Product Weight: Lightweight design at approximately 0.5 kg.

Applications

The Schneider Electric LC1D32BD contactor offers broad applicability across various industrial sectors, ensuring reliable and precise control in critical systems:

• Advanced Motor & Reversing Starters: Integral for controlling direction and starting sequences of industrial motors.
• Illumination & Thermal Control Circuits: Ideal for managing large-scale lighting systems and industrial heating elements.
• Robust Control Panels: A fundamental component within industrial control panels and distribution boards for power switching.
• Fluid & Air Handling Systems: Essential for the operation of pumps, fans, and compressors in diverse process industries.

Why Choose This Model?

Choosing the Schneider Electric LC1D32BD means investing in reliability, efficiency, and advanced engineering. This model is specifically designed to meet the rigorous demands of modern industrial automation:

• Superior Performance for Frequent Operation: Engineered to handle high switching frequencies without compromising operational integrity, ensuring consistent results.
• Optimized Panel Space Utilization: Its thoughtful, compact design allows for more efficient use of valuable control panel real estate, facilitating denser and more organized installations.
• Exceptional Longevity: Benefits from an extended electrical and mechanical life, significantly reducing the total cost of ownership through minimized replacement and maintenance overheads.
• Indispensable for Challenging Industrial Controls: Perfectly suited for the most demanding industrial control systems, delivering unwavering performance where reliability is paramount.

Order Now

Secure the operational backbone of your industrial systems with the Schneider Electric LC1D32BD. Benefit from expedited shipping services and worldwide delivery options to ensure your essential components arrive swiftly, wherever your operations are located. Enhance your control capabilities today.
