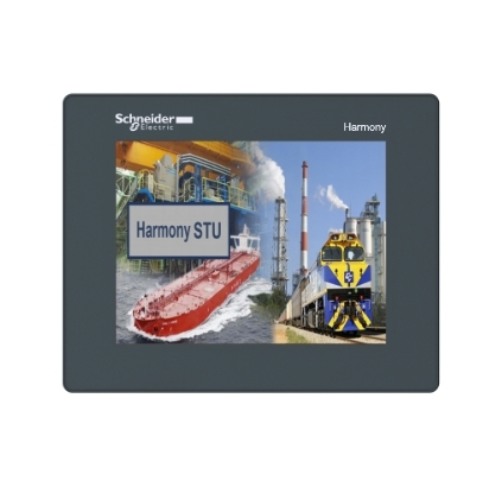

Schneider Electric HMISTU855

Overview

Elevate your industrial control with the Schneider Electric HMISTU855, a sophisticated 5.7-inch color touchscreen Human-Machine Interface from the renowned Magelis STU series. Engineered for optimal performance in diverse industrial settings, this HMI provides an intuitive platform for operators to monitor and control critical processes with unprecedented ease. Boasting a crisp 320 x 240 pixel (QVGA) resolution and a vibrant 65,536-color TFT display, it ensures all visual data is presented with outstanding clarity and detail. Its innovative 22 mm-diameter push-button style mounting redefines installation simplicity, dramatically reducing the time and complexity typically associated with HMI integration, as it bypasses the need for extensive panel modifications.

Beyond its visual prowess and streamlined mounting, the HMISTU855 is a connectivity powerhouse. Featuring integrated Ethernet and USB ports, it facilitates seamless communication across a broad spectrum of industrial devices, supporting intricate network architectures and enabling convenient remote access capabilities. This blend of user-friendly design, powerful processing, and extensive connectivity makes the HMISTU855 an ideal solution for modern industrial automation needs.

Key Features

• Brilliant Display: A 5.7-inch TFT color touchscreen delivers vivid visuals with a 320 x 240 pixels (QVGA) resolution and support for 65,536 vibrant colors.
• Effortless Mounting: The unique 22 mm-diameter push-button style mounting system allows for rapid and straightforward installation, minimizing panel alteration requirements.
• Comprehensive Connectivity:
  • Ethernet Port: Equipped with a 10/100 Base-T RJ45 for reliable network communication.
  • Serial Port: A versatile multiprotocol RS-485/232 RJ45 for seamless integration with various serial devices.
  • USB Ports: Includes one mini-USB device port and one USB Host V2.0 port for enhanced peripheral connectivity and data transfer.
• Generous Memory: Features 16 MB of Flash application memory alongside 64 KB of backup FRAM, with further storage expansion options via USB.
• Durable Backlight: An energy-efficient LED backlight offers an extended lifespan of approximately 50,000 hours, guaranteeing long-term operational stability.
• Secure Power: Operates on a reliable 24V DC power supply, featuring a removable connector for secure and hassle-free power connections.
• Optimized Software: Fully configurable using Schneider Electric's acclaimed Vijeo Designer software, streamlining application development and deployment processes.

Technical Specifications

• Model Designation: HMISTU855
• Screen Size: 5.7 inches
• Pixel Resolution: 320 x 240 (QVGA)
• Color Depth: 65,536 Colors
• Backlighting Technology: LED
• Communication Interfaces:
  • Ethernet: 10/100 Base-T (RJ45 Type)
  • Serial: RS-485/232 (RJ45 Type)
  • USB: 1x mini-USB device, 1x USB Host V2.0
• Onboard Memory: 16 MB Flash, 64 KB backup FRAM
• Power Input: 24V DC
• Mounting Method: 22 mm-diameter push-button style
• Physical Dimensions: 163 mm x 56.5 mm x 129.15 mm
• Operational Temperature Range: 0°C to 50°C

Applications

• Compact Machinery: Excellently suited for industrial equipment where space is at a premium but precise user interaction is essential.
• Handling & Logistics Systems: Enhances control, monitoring, and efficiency in complex material handling and logistical operations.
• Food & Beverage Processing: Meets the stringent requirements of hygiene and operational reliability prevalent in food and beverage production environments.
• Pharmaceutical Manufacturing: Guarantees accurate control and meticulous monitoring in highly regulated pharmaceutical production settings.
• Packaging Lines: Provides intuitive interfaces for controlling and monitoring various stages of packaging processes.

Why Choose This Model?

The Schneider Electric HMISTU855 stands out as a prime choice for modern industrial applications due to its thoughtful design and robust capabilities. Its innovative, compact form factor, combined with the unique push-button style mounting, drastically simplifies installation, saving valuable time and resources during deployment. This means less downtime for panel modifications and more immediate operational readiness.

Furthermore, the HMISTU855 offers unparalleled versatility in connectivity. With both embedded Ethernet and multiple USB ports, it ensures seamless integration into existing industrial networks and facilitates flexible communication with a wide array of peripheral devices. This adaptability is crucial for dynamic industrial environments that require constant data flow and interaction.

Finally, the HMISTU855 is designed for ease of use from conception to operation. Its compatibility with Schneider Electric's powerful Vijeo Designer software empowers developers to create sophisticated applications with minimal effort, ensuring a smooth and efficient workflow from development to real-world deployment. Choose the HMISTU855 for a reliable, efficient, and user-friendly HMI solution that truly makes a difference.
