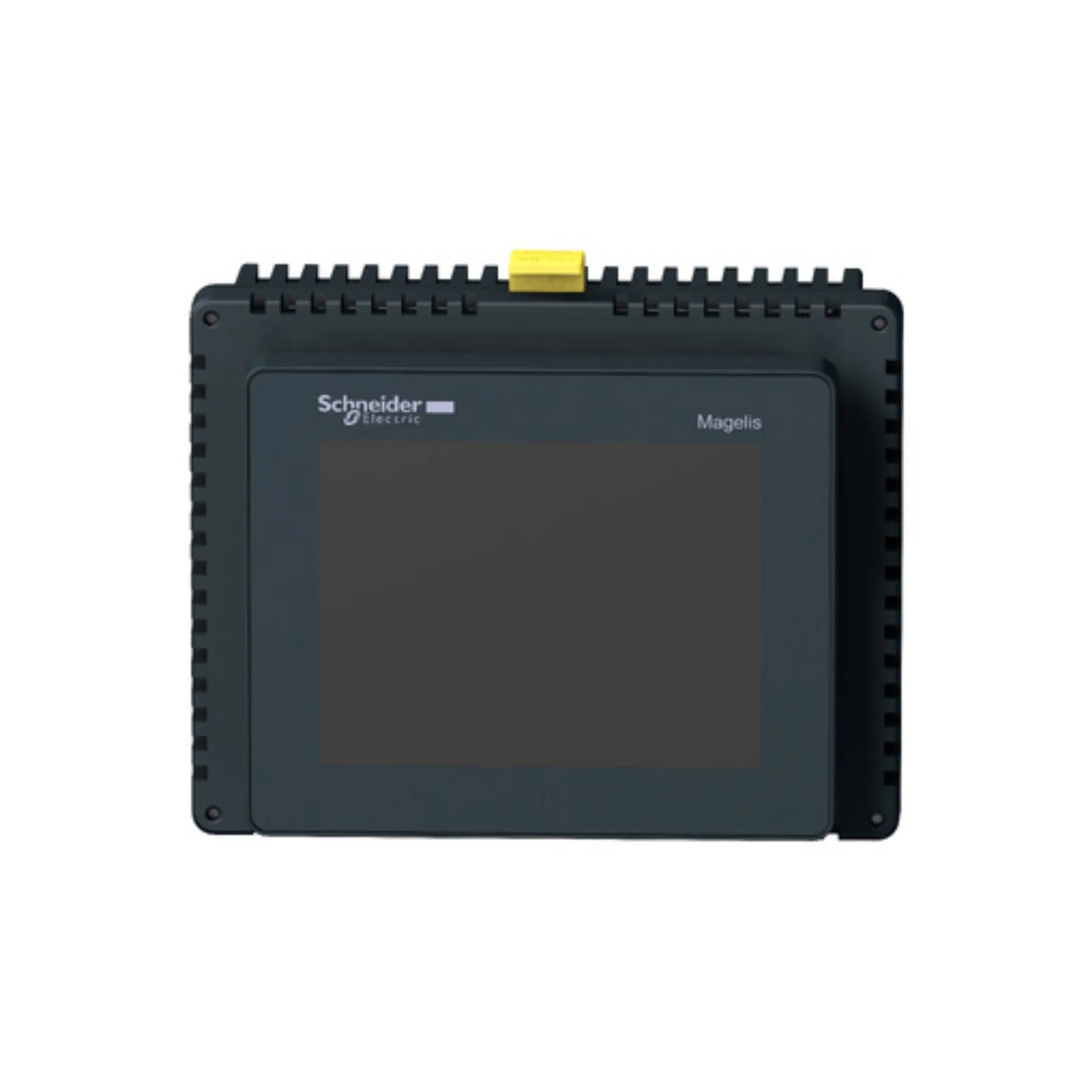

Schneider Electric HMISTU655

Overview

Elevate your industrial control systems with the Schneider Electric HMISTU655, a versatile 5.7-inch Human Machine Interface from the esteemed Magelis STU series. Engineered for optimal performance in environments where space is at a premium, this HMI solution seamlessly integrates advanced connectivity and a user-friendly interface. Its compact form factor, combined with a durable IP65-rated front panel, ensures reliable operation in demanding industrial settings, making it an indispensable tool for efficient operator interaction.

The HMISTU655 boasts a resistive touchscreen for intuitive input, alongside comprehensive communication options including Ethernet, USB, and serial ports. This powerful combination provides engineers and integrators with a flexible and robust interface to monitor and control various machinery and processes. Designed with precision and industrial resilience in mind, this HMI is a testament to Schneider Electric's commitment to innovation and quality in automation technology.

Key Features

• Display Clarity: Features a crisp 5.7" QVGA (320 x 240 pixels) display, ensuring vital information is always clear and accessible.
• Responsive Touch: Equipped with a highly accurate resistive touchscreen for reliable and precise operator input.
• Extensive Connectivity: Offers a diverse range of communication ports, including 1x Ethernet 10/100Base-T, 1x Serial (RS232/RS485), 1x USB Host, and 1x USB Mini-B, facilitating effortless integration into existing networks.
• Efficient Power: Operates efficiently on a 24V DC power supply, ideal for industrial power infrastructures.
• Robust Protection: Designed for panel mounting with an IP65 rated front panel, safeguarding against dust and water ingress in harsh industrial environments.
• Software Harmony: Fully compatible with Vijeo Designer software, allowing for streamlined configuration and intuitive application development.

Technical Specifications

• Model Identifier: HMISTU655
• Product Line: Magelis STU Series
• Visual Interface: 5.7" TFT color LCD, providing vibrant and detailed visuals.
• Screen Resolution: 320 x 240 pixels (QVGA) for clear graphical representation.
• Backlight Longevity: An impressive backlight life of approximately 50,000 hours, ensuring long-term operational reliability.
• Touch Interface: Utilizes advanced resistive analog touch technology for consistent and accurate control.
• Processing Power: Driven by a high-performance 400 MHz RISC processor, delivering rapid response times.
• Memory Configuration: Generous memory capacity with 128 MB Flash and 64 MB RAM, supporting complex applications.
• Communication Ports: Comprehensive interfaces including Ethernet, Serial RS232/RS485, USB Host, and USB Mini-B.
• Power Input Range: Flexible 24V DC power input (19.2 to 28.8V range) for stable operation.
• Power Efficiency: Low power consumption at approximately 6.5W, contributing to energy savings.
• Installation: Designed for convenient panel cutout mounting.
• Front Panel Rating: IP65 front protection ensures resilience against environmental factors.
• Operational Climate: Suitable for operating temperatures from 0°C to +50°C.
• Storage Conditions: Capable of storage in temperatures ranging from -20°C to +60°C.
• Physical Dimensions: Compact footprint of approximately 144 mm (W) x 117 mm (H) x 40 mm (D).
• Product Mass: Lightweight design at approximately 0.45 kg, simplifying installation.

Applications

• Precision Machine Interfaces: Perfectly suited for integrating into compact machinery, providing operators with immediate control and feedback.
• Dynamic Packaging Systems: Enhances efficiency in packaging lines by offering simple, yet robust, operator feedback and adjustments.
• Integrated OEM Panels: Its small form factor allows for effortless integration into small electrical enclosures for bespoke OEM solutions.
• Advanced Automation Control: Serves as a vital link between operators and PLCs/controllers, facilitating seamless interaction via Ethernet or serial communication for diverse automation tasks.

Why Choose This Model?

The Schneider Electric HMISTU655 stands out as an exceptional choice for a multitude of reasons. Its design principle revolves around delivering maximum functionality within a minimal footprint, making it incredibly versatile for space-constrained applications without compromising on performance. The array of communication options ensures universal compatibility with a wide spectrum of industrial devices and networks, simplifying integration complexities.

Furthermore, the HMISTU655 is engineered for ease of use. Its compatibility with Vijeo Designer allows for intuitive development and configuration of HMI applications, drastically reducing setup time and enhancing user experience. Coupled with its durable build and IP65 front protection, this model guarantees sustained operation even in the most challenging industrial environments, offering a reliable, long-term solution for your human-machine interface needs.

Order Now

Secure your Schneider Electric HMISTU655 today and elevate your machine control capabilities. This high-performing Human Machine Interface is available for immediate global delivery, ensuring quick access to cutting-edge automation technology. For further exploration of Schneider Electric's extensive range of HMI Terminals and Industrial PCs, please navigate back to the main category page.
