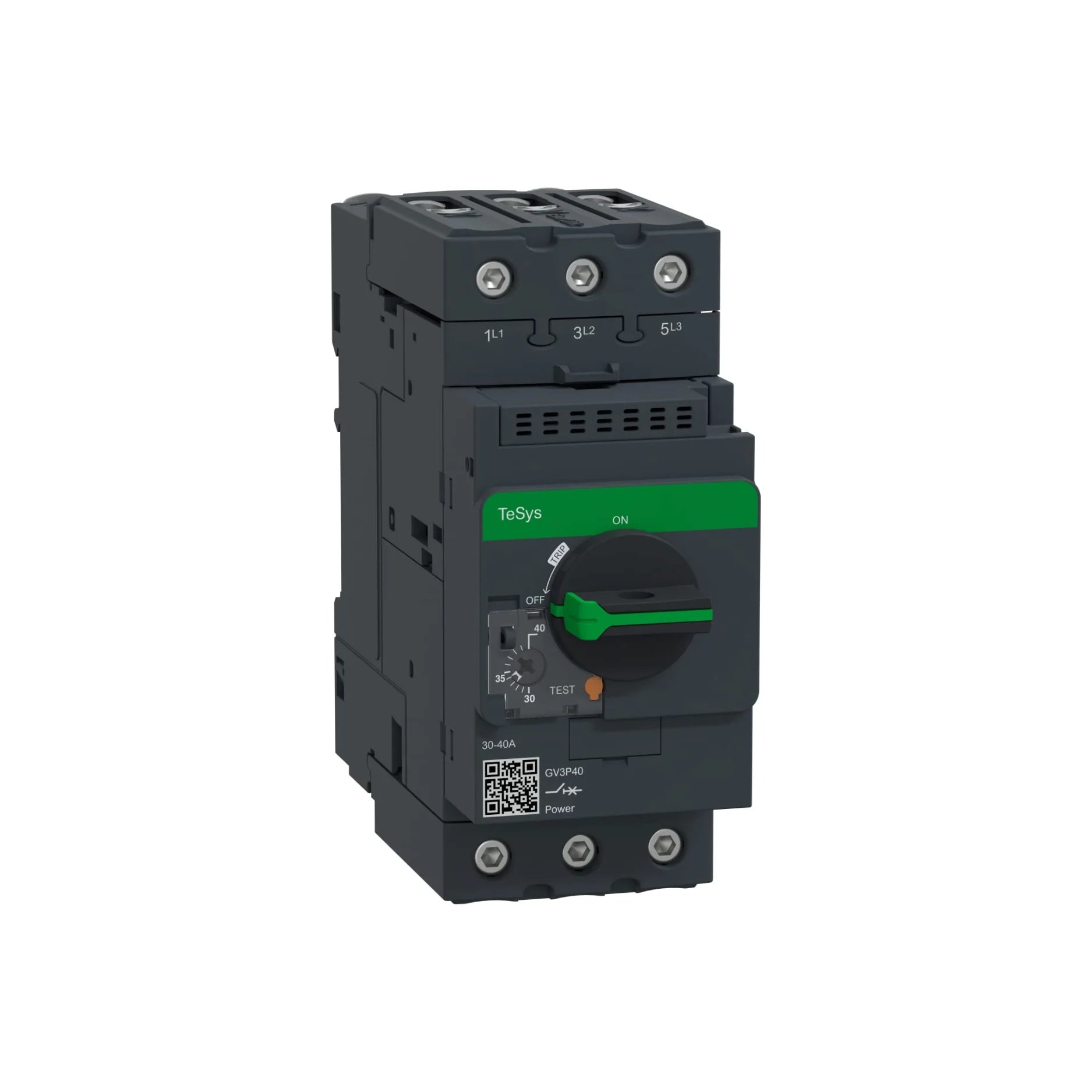

Schneider Electric GV3P40

Overview

Unlock unparalleled motor safeguarding with the Schneider Electric GV3P40 motor circuit breaker, a cornerstone component from the acclaimed TeSys GV3 series. Specifically engineered to shield industrial motors operating between 25 and 40 amps, this device masterfully integrates both thermal overload and magnetic short-circuit protection. Its streamlined yet remarkably robust construction guarantees exceptional breaking capabilities, making it the definitive choice for demanding industrial environments where reliability cannot be compromised. The GV3P40 provides essential defense against common electrical faults, ensuring continuous operation and extending the lifespan of your critical machinery.

Key Features

• Flexible Current Adjustment: Seamlessly configure protection across a 25A to 40A range to perfectly match diverse motor specifications.
• Advanced Trip Unit: Equipped with a precision thermal-magnetic trip unit for comprehensive defense against both sustained overloads and instantaneous short-circuits.
• Commanding Breaking Capacity: Delivers an impressive breaking capacity of up to 50 kA at 400V AC, capable of handling significant fault currents.
• Intuitive Control Interface: Features a user-friendly rotary handle for simple manual ON/OFF operation and quick, decisive resets.
• Versatile Mounting Options: Designed for convenient installation on standard DIN rails or via secure panel mounting, adapting to various enclosure layouts.
• Integrated Protection Suite: Incorporates robust safeguards against motor overload (thermal), severe short-circuits (magnetic), and detrimental phase failures.
• Expandable Functionality: Supports optional side or front-mounted auxiliary contacts for enhanced signaling and control integration.

Technical Specifications

• Model Identification: GV3P40
• Product Line: TeSys GV3
• Protective Mechanism: Thermal magnetic
• Adjustable Range for Settings: 25A to 40A
• Rated Insulation Voltage (Ui): 690V AC
• Rated Operational Voltage (Ue): Up to 690V AC
• Nominal Breaking Capacity: 50 kA at 400V AC (conforming to IEC 60947-2 standards)
• Trip Class Rating: Class 10
• Operational Temperature Range: -20°C to +60°C
• Installation Method: Compatible with DIN rail or traditional screw mounting
• Ingress Protection Rating: IP20 (device body), IP40 (front face)
• Physical Dimensions (H x W x D): Approximately 130 mm x 55 mm x 120 mm
• Product Mass: Approximately 0.6 kg
• Regulatory Adherence: Complies with IEC 60947-2 and IEC 60947-4-1 international standards

Applications

• Motor Control Centers (MCCs): Provides the foundational protection layer for motors housed within control panels and electrical switchboards.
• Pumps, Fans & Compressors: Vital for safeguarding critical fluid handling and air compression equipment from damaging overloads and faulty conditions.
• Conveyor Systems & Industrial Mixers: Essential for protecting motive power in material transport and processing machinery, mitigating risks from mechanical blockages or excess current.
• Diverse Industrial Apparatus: Extends reliable protection to a broad spectrum of equipment in HVAC systems, advanced material handling logistics, and automated manufacturing processes.

Why Choose This Model?

The Schneider Electric GV3P40 stands out as an exceptional choice for motor protection due to its intelligent design and robust capabilities. Its expansive current adjustment range, from 25A to 40A, offers unparalleled flexibility, allowing for precise integration with a wide variety of motor sizes and operational demands. This versatility reduces inventory complexity and simplifies motor control panel design. Beyond flexibility, the GV3P40 delivers truly high-performance protection, boasting an impressive fault-breaking capacity that ensures systems remain secure even during severe electrical disturbances. Designed for seamless integration, its modular nature pairs effortlessly with other components in the TeSys ecosystem, such as contactors and various accessories, facilitating cohesive and scalable control solutions. Furthermore, its rugged construction is complemented by a compact footprint, optimizing space utilization within dense control panels without compromising on durability or protective efficacy. Invest in the GV3P40 for a reliable, adaptable, and space-efficient motor protection solution.

Order Now

Secure your industrial operations with the dependable Schneider Electric GV3P40 motor circuit breaker. This essential protective device is readily available for prompt dispatch, with fast and reliable worldwide shipping options. Enhance the safety and longevity of your motors today.
