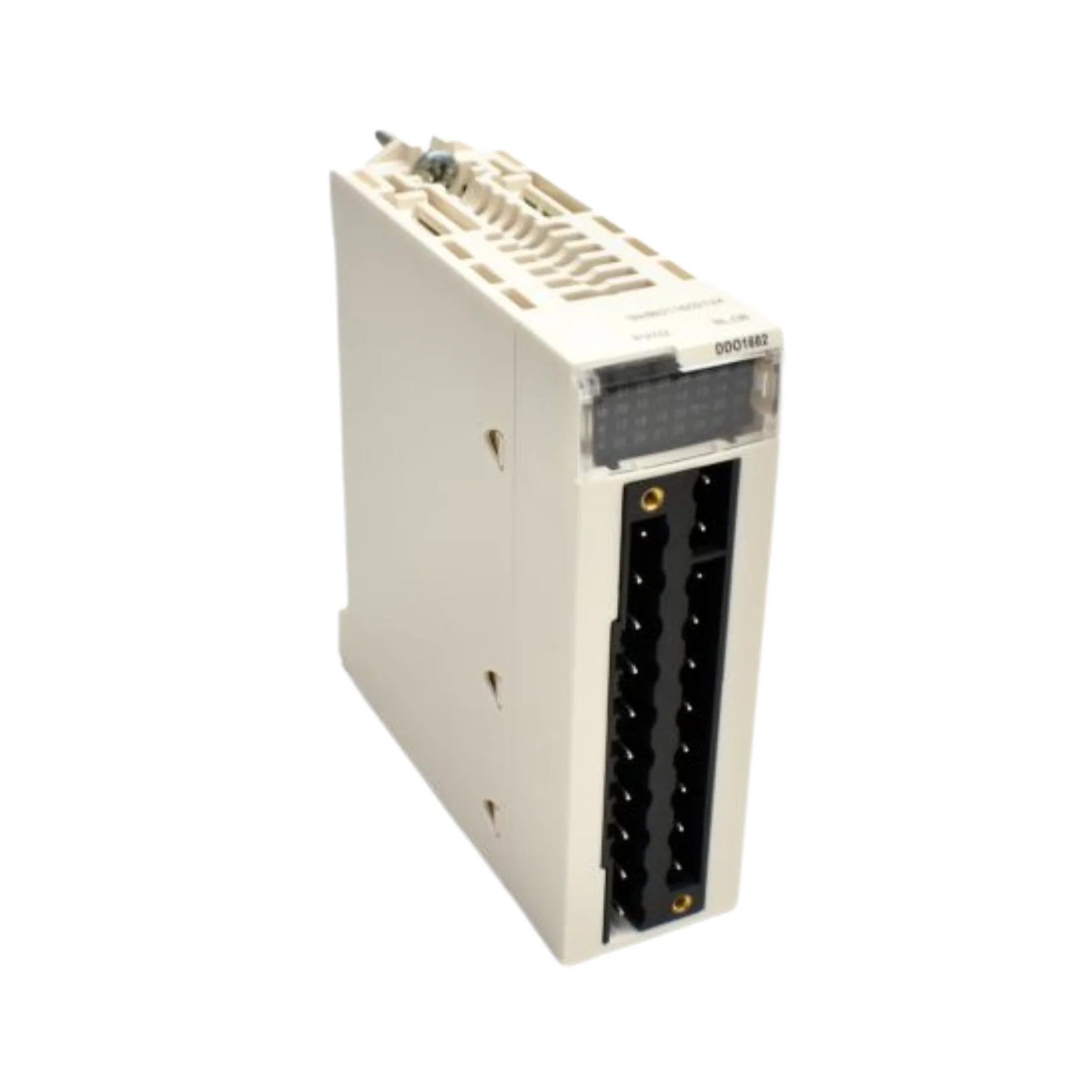

Schneider Electric BMXDDO1602

Overview

Unleash unparalleled precision and control within your industrial automation infrastructure with the Schneider Electric BMXDDO1602 digital output module. As a core component of the acclaimed Modicon X80 I/O platform, this module is meticulously engineered to seamlessly integrate with both Modicon M340 and M580 Programmable Logic Controller (PLC) systems. The BMXDDO1602 stands out with its robust design, offering 16 channels of 24V DC transistor outputs, accommodating both sink and source configurations to fit diverse wiring requirements. Its high-speed switching capabilities and advanced onboard diagnostics ensure optimal performance and operational reliability for the most demanding automated industrial processes.

Experience superior control for your critical applications, knowing that the BMXDDO1602 is built with Schneider Electric's renowned commitment to quality and innovation. This module is more than just a component; it's a foundation for enhanced productivity and minimized downtime.

Key Features

• Channel Count: Equipped with 16 independent digital output channels.
• Output Technology: Utilizes reliable transistor (solid-state) switching for longevity and performance.
• Voltage Standard: Operates at a standard 24V DC output voltage, compatible with numerous industrial devices.
• Current Capacity: Delivers 0.5 A per channel, with a maximum aggregate current of 4 A per output group, enabling versatile load management.
• Wiring Flexibility: Supports both sink and source wiring configurations, adapting to various system designs.
• Response Excellence: Engineered for exceptionally fast switching response times, essential for time-sensitive applications.
• Integrated Diagnostics: Features per-channel LED indicators and comprehensive channel error detection for simplified troubleshooting and maintenance.
• Connectivity Interface: Facilitates secure connections via a standard HE-10 20-pin connector.
• System Integration: Designed for straightforward mounting onto Modicon M340 and M580 X80 backplanes, ensuring effortless installation.

Technical Specifications

• Model Identifier: BMXDDO1602
• Product Series: Modicon X80 I/O Range
• Nominal Voltage: 24V DC
• Current per Output Channel: 0.5 A
• Maximum Group Current: 4 A
• Electrical Isolation: Provides 500 V isolation between channels and internal logic for enhanced safety and interference reduction.
• Protective Measures: Incorporates advanced protection against short-circuits, overloads, and thermal anomalies, safeguarding both the module and connected equipment.
• Physical Dimensions: Compact 20 mm width, optimizing panel space.
• Enclosure Rating: IP20 protection class, suitable for industrial environments.
• Operational Temperature Range: Certified for operation from 0°C to +60°C.
• Storage Conditions: Withstands temperatures from -40°C to +85°C.
• Unit Weight: Approximately 0.18 kg (lightweight for easy handling).

Applications

The Schneider Electric BMXDDO1602 module is a versatile solution, perfectly suited for a wide array of industrial applications requiring precise and reliable digital control:

• Automated Packaging & Bottling Lines: Ensures accurate and high-speed manipulation of products.
• Advanced Material Handling Systems: Facilitates efficient and coordinated movement in conveyor and robotic systems.
• Complex Process Automation: Provides dependable output control for various stages in chemical, food and beverage, and pharmaceutical processes.
• Discrete Manufacturing Environments: Ideal for machine control in automotive, electronics, and assembly operations.

Why Choose This Model?

Opting for the Schneider Electric BMXDDO1602 means investing in the backbone of reliable automation. This module guarantees:

• Unwavering Performance: Achieve fast, highly dependable digital output switching for critical operations.
• System Efficiency: Its compact footprint and high channel density contribute to efficient utilization of space in large I/O systems.
• Seamless Integration: Enjoy complete compatibility and effortless integration with existing Modicon M340/M580 PLC infrastructures.
• Reduced Downtime: Benefit from built-in diagnostics that significantly accelerate troubleshooting and minimize operational interruptions.
• Industry-Leading Quality: Leverage the trusted engineering and robust construction synonymous with Schneider Electric products.

Order Now

Secure your Schneider Electric BMXDDO1602 digital output module today and elevate your automation capabilities. Take advantage of our swift shipping and comprehensive worldwide delivery options. Don
