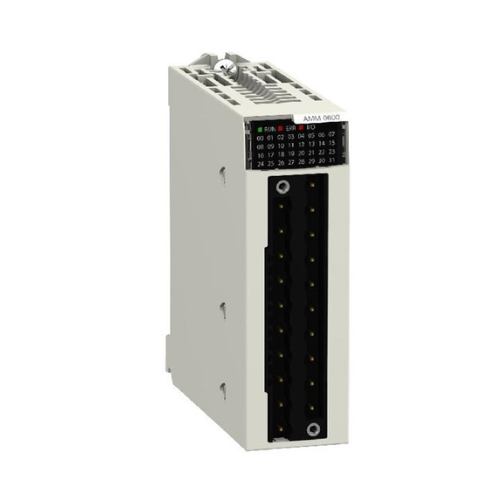

Schneider Electric BMXAMM0600

Overview

Elevate your industrial automation capabilities with the Schneider Electric BMXAMM0600, a sophisticated 6-channel analog input/output module meticulously engineered for seamless integration with the Modicon M340 PLC platform. This robust unit delivers exceptional precision in both acquiring and generating analog signals, positioning it as an indispensable component for a broad spectrum of process control applications and advanced industrial environments.

Whether your operations demand meticulous monitoring or precise actuation, the BMXAMM0600 provides the reliable foundation required for optimized performance. Its intelligent design consolidates 4 analog inputs and 2 analog outputs into a single, efficient module, simplifying system architecture and enhancing operational flexibility.

Key Features

• Unified Analog Control: Features a comprehensive 6-channel configuration, integrating 4 dedicated analog inputs and 2 powerful analog outputs within one compact module.
• Broad Signal Compatibility: Supports a wide array of input signal types including 0–10 V, ±10 V, 0–20 mA, and 4–20 mA, alongside matching output signal types for maximum versatility.
• Superior Resolution: Achieves outstanding data fidelity with 12-bit resolution across both input and output channels, ensuring highly accurate signal representation and control.
• Intelligent Diagnostics: Incorporates channel-specific error detection mechanisms to quickly identify and address operational anomalies, enhancing system reliability.
• Rapid Conversion Speed: Boasts a fast conversion time, facilitating real-time control responses critical for dynamic industrial processes.
• Clear Status Indication: Equipped with intuitive LED indicators that provide immediate visual feedback on channel status and any detected errors.
• Effortless Integration: Engineered for quick plug-and-play compatibility with the Modicon M340 X80 backplane, streamlining installation and commissioning.

Technical Specifications

• Model Identifier: BMXAMM0600
• Product Line: Modicon M340
• Analog Inputs: 4 channels, selectable for either voltage or current signals.
• Analog Outputs: 2 channels, configurable for voltage or current signal generation.
• Measurement Precision: 12-bit resolution for both input and output functionalities.
• Accuracy Rating: Delivers ±0.5% of full scale accuracy for dependable performance.
• Input Impedance: ≥1 MΩ for voltage inputs; ≤250 Ω for current inputs.
• Output Load Capability: ≥1 kΩ for voltage outputs; ≤500 Ω for current outputs.
• Conversion Rate: Efficient 2 ms per input channel conversion time.
• Power Sourcing: Powered directly from the Modicon M340 rack, simplifying wiring.
• Current Draw: Consumes 250 mA at 3.3 VDC.
• Operational Temperature Range: Certified for steady performance from 0°C to +60°C.
• Ingress Protection: Rated IP20, providing protection against solid objects larger than 12.5mm.
• Mounting Method: Designed for secure DIN rail mounting via a compatible base rack.
• Physical Dimensions (W x H x D): Compact footprint of 32 mm x 100 mm x 115 mm.
• Unit Weight: Approximately 0.25 kg.

Applications

• Precision Process Automation: Essential for monitoring and controlling critical variables such as temperature, pressure, and fluid flow in demanding industrial processes.
• Advanced Building Management Systems (BMS): Facilitates sophisticated HVAC control, optimizing energy efficiency and environmental comfort.
• Energy Consumption Monitoring: Provides accurate analog feedback from a diverse range of sensors and meters for comprehensive energy management.
• Original Equipment Manufacturer (OEM) Machinery: Enables high-precision command and control of analog devices within custom-built industrial equipment.

Why Choose This Model?

The Schneider Electric BMXAMM0600 stands out in the competitive landscape of industrial automation, offering a compelling blend of features and benefits that drive efficiency and reliability. Its innovative design combines both analog inputs and outputs within a single module, drastically reducing complexity and simplifying system architecture. With its impressive 12-bit resolution, this module guarantees unparalleled accuracy in both measurement and control, critical for maintaining tight operational tolerances.

Integration into existing Modicon M340 PLC systems is remarkably swift and straightforward, minimizing downtime and accelerating project timelines. Furthermore, the BMXAMM0600 is constructed with a robust industrial-grade design, ensuring sustained performance and longevity even in the most challenging and harsh operating environments. Opt for the BMXAMM0600 to empower your automation systems with superior analog control.

Order Now

Secure the Schneider Electric BMXAMM0600 today and experience the next level of analog control for your Modicon M340 applications. Benefit from our fast shipping and reliable worldwide delivery. Learn more about the expansive Schneider Electric BMX Series PLC collection or explore our comprehensive selection of Schneider Electric PLCs to discover robust, scalable, and dependable automation solutions tailored for diverse industrial needs.
