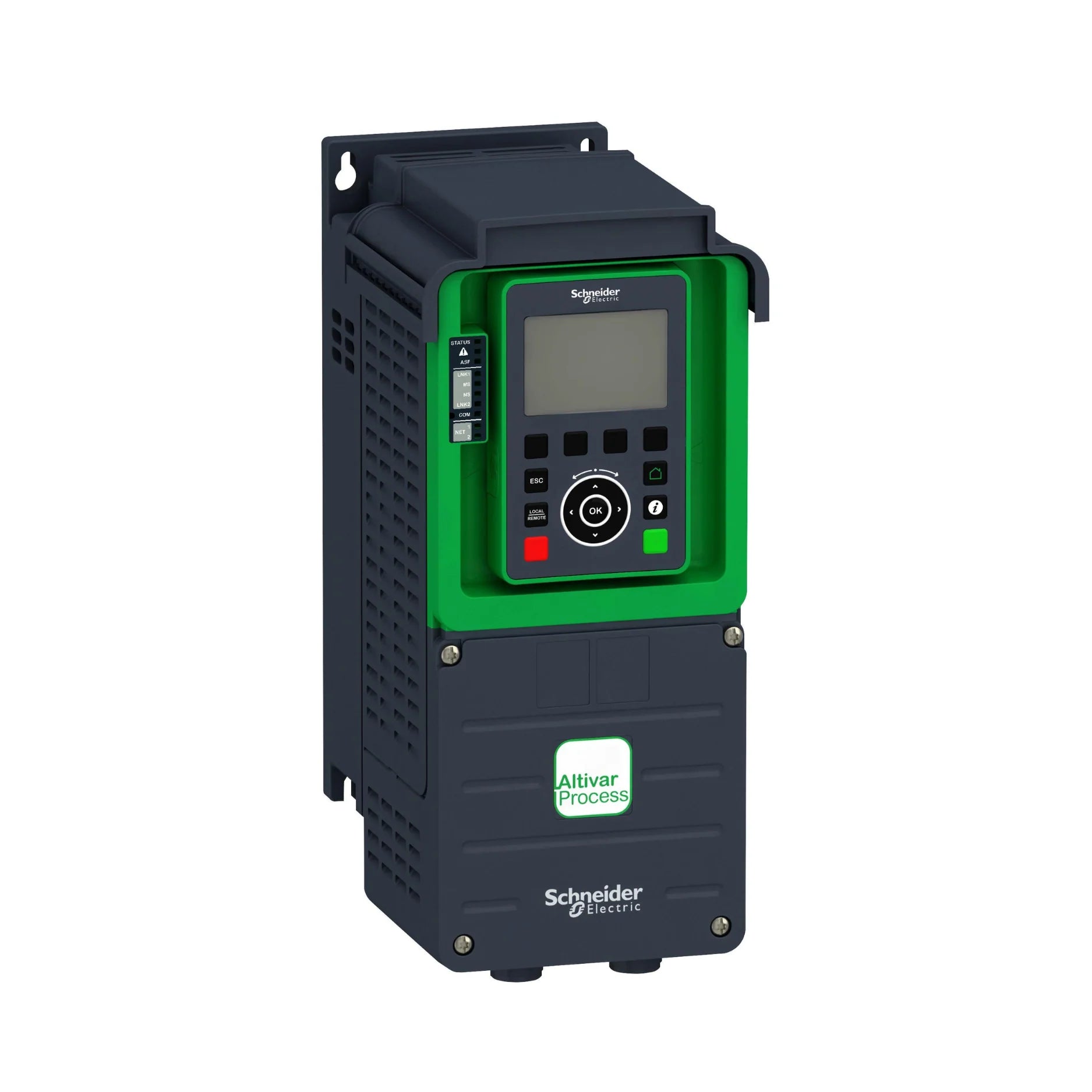

Schneider ATV930U55N4

Overview

Experience unparalleled precision and robust performance with the Schneider Electric Altivar Process ATV930U55N4. This cutting-edge variable speed drive (VSD) is meticulously engineered to elevate the control of both asynchronous and synchronous motors across a myriad of industrial scenarios. Boasting a substantial 5.5 kW (7.5 HP) power rating and operating flawlessly with a 380–480V 3-phase input, this unit stands out with its integrated braking capabilities and resilient IP21 protection. It’s the ideal solution for environments demanding unwavering reliability and advanced motor management, ensuring operational efficiency and longevity.

Key Features

• Commanding Power: Delivers 5.5 kW (7.5 HP) for rigorous applications.
• Flexible Input: Accommodates 380–480V, 3-phase power, adapting to diverse electrical grids.
• Broad Frequency Range: Offers a customizable output frequency from 0.1 to 599 Hz for optimal motor matching.
• Sophisticated Control Algorithms: Supports Sensorless Flux Vector Control (SFVC), Flux Vector Control with Encoder (FVC), and Voltage/Frequency (V/f) modes for precise control.
• Integrated Safety & Efficiency: Features an onboard braking unit that significantly enhances deceleration control and operational safety.
• Seamless Connectivity: Equipped with embedded Ethernet/IP and Modbus TCP for effortless integration into existing automation networks.
• Operational Intelligence: Incorporates advanced functionalities like pump protection, PID control, and dedicated energy-saving modes to optimize processes and reduce consumption.

Technical Specifications

• Model Identifier: ATV930U55N4
• Product Line: Altivar Process ATV930 Series
• Current Ratings: 10.4 A (at 380V normal duty), 9.1 A (at 480V normal duty).
• Switching Precision: Adjustable switching frequency ranging from 2–16 kHz, with a default setting of 4 kHz.
• Thermal Management: Efficient cooling achieved through a fan with forced convection, maintaining optimal operating temperatures.
• Environmental Endurance: Rated IP21 for protection against solid objects exceeding 12.5mm and dripping water.
• Operational Temperature Span: Reliably functions from -15°C to +50°C without requiring derating.
• Compact Dimensions (W x H x D): Measures 144 mm x 350 mm x 203 mm, facilitating straightforward installation.
• Lightweight Design: Weighs a manageable 4.7 kg.

Applications

• Fluid Management: Ideal for controlling pumps and fans in water treatment, HVAC, and hydraulic systems.
• Material Handling: Perfect for conveyors, mixers, and other material processing machinery requiring dynamic speed adjustments.
• Environmental Systems: Optimizes water and wastewater infrastructure for improved efficiency and reliability.
• Industrial Automation Hubs: Provides critical motor control in complex manufacturing and process automation environments.
• Food & Beverage Processing: Ensures precise control over mixing, pumping, and conveying tasks, enhancing product quality.

Why Choose This Model?

The Schneider Electric ATV930U55N4 is not merely a component; it’s an investment in advanced industrial control. Its integrated braking unit provides superior control during deceleration, safeguarding machinery and processes. With sophisticated connectivity options via Ethernet/IP and Modbus TCP, integration into existing communication infrastructures is seamless and swift. Built to endure, its IP21 protection rating guarantees dependable operation even in challenging industrial settings. Furthermore, embedded energy-saving features combined with intelligent process control functions translate into tangible operational cost reductions and enhanced overall system efficiency. Opt for the ATV930U55N4 for a future-proof, high-performance solution.

Order Now

Elevate your industrial operations today with the Schneider Electric ATV930U55N4. Benefit from our fast shipping and reliable worldwide delivery when you place your order. For additional information or to explore related products, navigate back to our extensive selection of Schneider Electric Altivar Process ATV930 drives or our full range of Schneider Electric Variable Frequency Drives.
