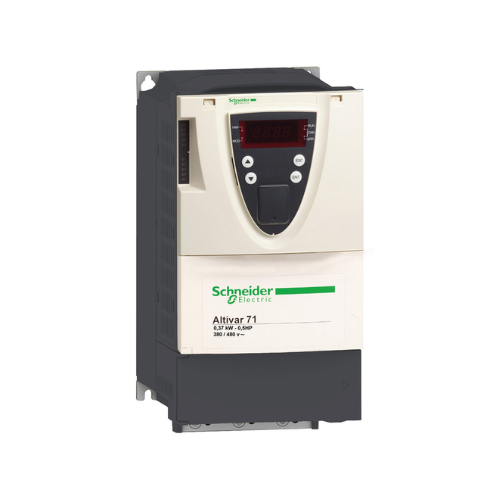

Schneider Electric ATV71HU30N4Z

Overview

Unlock unparalleled motor control with the Schneider Electric ATV71HU30N4Z, a high-performance variable speed drive engineered within the esteemed Altivar 71 series. This robust VSD is meticulously crafted for the most demanding industrial applications, offering sophisticated motor management capabilities. Boasting a substantial 3.0 kW (4.0 HP) power rating and compatible with 380–480 V three-phase input, this unit stands out with its integrated Class A EMC filter, significantly reducing electromagnetic interference. Versatile control modes provide exceptional adaptability for diverse motor types. Its space-efficient design, coupled with built-in safety features, positions the ATV71HU30N4Z as an indispensable asset for contemporary automation systems, ensuring reliable and efficient operation across various sectors.

Key Features

• Robust Power Output: Delivers 3.0 kW / 4.0 HP for powerful and efficient motor operation.
• Wide Input Voltage Compatibility: Operates seamlessly with 380–480 V AC, three-phase power supplies.
• Expansive Output Frequency Range: Offers a broad spectrum from 0.1 to 599 Hz for flexible motor speed management.
• Multiple Control Methodologies: Supports V/Hz, sensorless flux vector, and flux vector control with encoder for optimized performance.
• Integrated Electromagnetic Compatibility: Features a built-in Class A EMC filter for reduced electrical noise and enhanced system compliance.
• Standardized Communication Protocols: Equipped with CANopen and Modbus RTU for straightforward integration into existing networks.
• Enhanced Safety Mechanism: Incorporates Safe Torque Off (STO) functionality for critical emergency stops.
• Protective Enclosure: Housed in an IP20-rated enclosure, ideal for panel-mounted installations.
• Efficient Thermal Management: An integrated fan ensures consistent cooling and operational longevity.

Technical Specifications

• Product Identifier: ATV71HU30N4Z
• Nominal Output Current: 7.5 A
• Maximum Apparent Power: 6.5 kVA
• Permissible Motor Cable Lengths:
  • Shielded Cabling: Up to 50 meters
  • Unshielded Cabling: Up to 100 meters
• Adjustable Switching Frequency: Configurable from 1 to 16 kHz
• Operating Ambient Temperature: -10°C to +50°C (maintaining full performance without derating)
• Installation Method: Designed for convenient panel mounting
• Physical Dimensions:
  • Width: 130 mm
  • Height: 260 mm
  • Depth: 200 mm
• Approximate Mass: 4.9 kg
• Compliance and Certifications: Adheres to CE, UL, and CSA standards

Applications

The Schneider Electric ATV71HU30N4Z is exceptionally versatile, making it an ideal choice for a diverse array of industrial and commercial applications requiring precise and reliable motor control:

• Fluid Management Systems: Optimally controls industrial pumps and fans for consistent flow and air circulation.
• Manufacturing & Processing: Enhances the efficiency of packaging lines and various processing equipment.
• Logistics & Distribution: Powers conveyor systems and material handling machinery with accuracy.
• Climate Control Solutions: Integrates seamlessly into HVAC systems for regulated environmental conditions.
• General Industrial Automation: Provides superior motor control across a broad spectrum of automation setups.

Why Choose This Model?

Opting for the Schneider Electric ATV71HU30N4Z means investing in cutting-edge technology designed to elevate your operational efficiency and reliability. Its advanced motor control capabilities, supporting multiple modes, guarantee precise and optimized performance for any motor type. The integrated EMC filter is a crucial advantage, ensuring regulatory compliance while simultaneously minimizing disruptive electrical noise. Its compact, panel-mountable form factor coupled with robust construction promises long-term dependability even in harsh industrial settings. Furthermore, flexible communication options via CANopen and Modbus facilitate effortless integration into your existing control architecture. Finally, the built-in Safe Torque Off (STO) function provides an essential layer of safety, safeguarding personnel and equipment. Choose the ATV71HU30N4Z for a sophisticated, secure, and reliable drive solution.

Order Now

The high-performance Schneider Electric ATV71HU30N4Z Altivar 71 variable speed drive is ready for immediate deployment and can be shipped globally to meet your project deadlines. Secure this advanced VSD today to revolutionize your motor control operations. We also invite you to explore the wider range of Schneider Electric Altivar 71 VFDs or browse our comprehensive selection of Schneider Electric Variable Frequency Drives for more tailored solutions.
