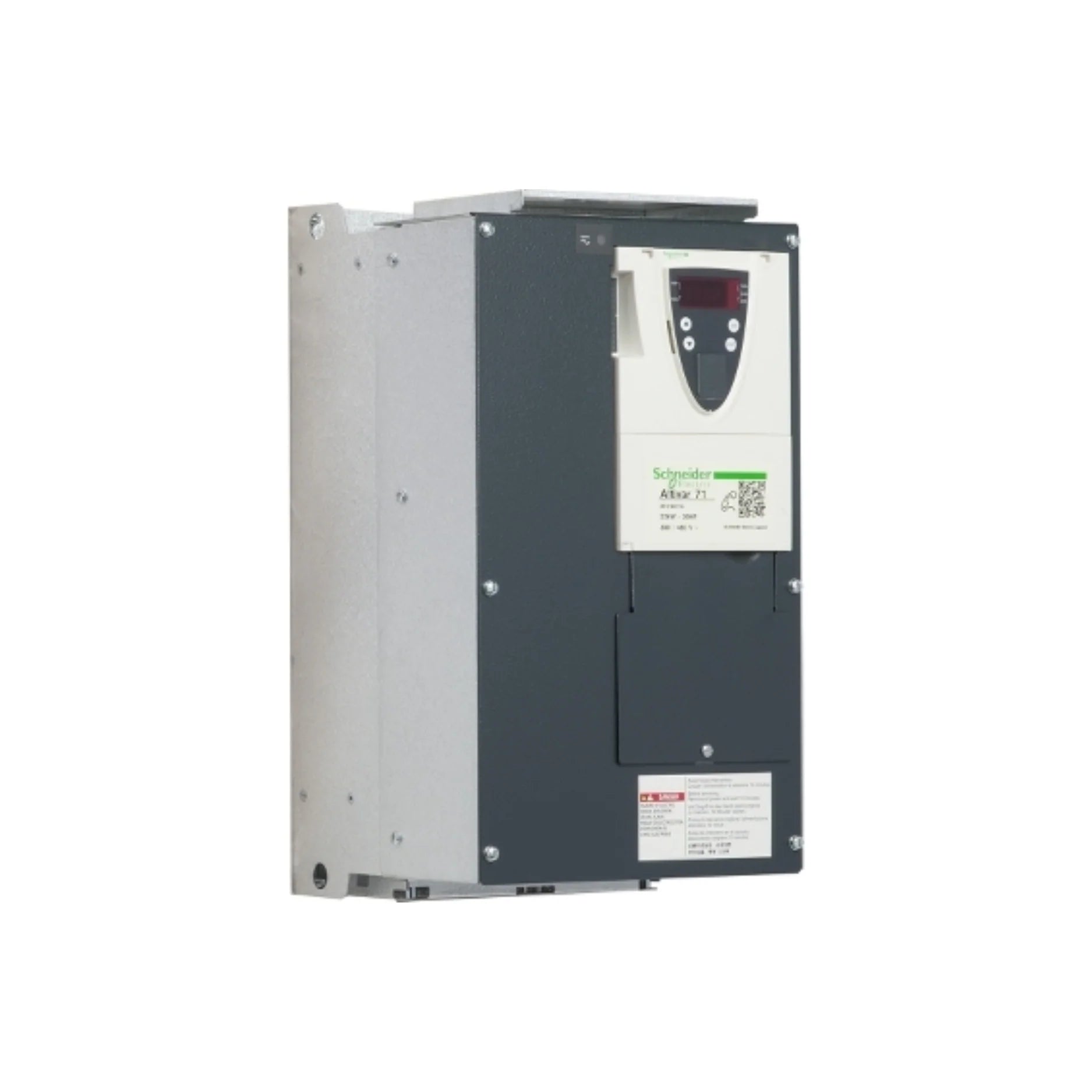

Schneider Electric ATV71HD22N4

Overview

Unlock unparalleled precision and robust performance in your industrial operations with the Schneider Electric ATV71HD22N4 Variable Frequency Drive. This sophisticated VFD, a cornerstone of the acclaimed Altivar 71 series, is engineered to master the complexities of modern motor control. Designed for both asynchronous and synchronous motors, it delivers relentless power and unwavering stability in even the most challenging heavy-duty environments. Boasting a formidable 22 kW (30 HP) rating and optimized for 400V 3-phase input, the ATV71HD22N4 ensures meticulous regulation of motor speed and torque, translating directly into enhanced operational efficiency and reliability for your critical machinery.

Beyond its brute strength, this drive integrates cutting-edge features such as advanced Electromagnetic Compatibility (EMC) filters to minimize electrical interference, comprehensive diagnostic capabilities for proactive maintenance, and an extensive array of communication options. These attributes position the ATV71HD22N4 as an indispensable component for intricate automation architectures, providing not just control, but also laying the groundwork for superior energy management and optimized motor performance across a diverse range of applications.

Key Features

• High-Capacity Power Output: Delivers a substantial 22 kW (30 HP) for demanding industrial tasks.
• Versatile Voltage Input: Compatible with 380–480V AC, 3-phase power sources.
• Dynamic Frequency Range: Offers a broad output frequency from 0.1 to 599 Hz for flexible motor operation.
• Industrial-Grade Reliability: Specifically rated for heavy-duty applications, ensuring long-term durability.
• Integrated EMC Filtration: Minimizes electromagnetic interference for cleaner, more stable operation.
• Broad Motor Compatibility: Expertly controls both asynchronous and synchronous motor types.
• Embedded Communication Protocols: Comes equipped with Modbus and CANopen for seamless system integration.

Technical Specifications

• Catalog Number: ATV71HD22N4
• Product Series: Altivar 71
• Power Rating: 22 kW / 30 HP
• Input Voltage: 380–480V AC, 3-phase
• Output Current (Heavy Duty): 45 A
• Adjustable Frequency Range: 0.1 to 599 Hz
• Installation Method: Suitable for either wall or cabinet mounting.
• Ingress Protection Rating: IP20
• Operational Temperature: Designed to function in environments from -10°C to +50°C.
• Approximate Unit Weight: 20 kg

Applications

• Fluid Management Systems: Enhances energy efficiency and control in pumps and ventilation systems.
• Material Handling: Provides precise speed and torque regulation for conveyors, mixers, and hoists.
• Advanced Industrial Automation: Drives heavy-duty machinery and complex processing lines with unparalleled accuracy.
• Environmental Control: Ensures smooth motor operation and energy conservation within HVAC systems.
• Process Manufacturing: Optimized for a wide array of manufacturing processes requiring robust and reliable motor control.

Why Choose This Model?

The ATV71HD22N4 stands out as a superior choice for industrial professionals demanding peak performance and reliability. Its robust construction and sophisticated design guarantee uninterrupted operation, even in the most arduous and continuously running applications. You benefit from its expansive motor compatibility, offering advanced control modes that adapt to diverse motor types, thereby maximizing system flexibility and efficiency. As a proud member of Schneider Electric's globally recognized Altivar 71 series, this drive inherits a legacy of innovation and trusted engineering, ensuring you invest in a product known for its excellence in industrial drive technology. Opting for the ATV71HD22N4 means choosing a solution that not only meets but exceeds rigorous industrial demands, providing a solid foundation for your operational success.

Order Now

Ready to revolutionize your motor control? The Schneider Electric ATV71HD22N4 Variable Frequency Drive is available for global shipping, bringing advanced industrial power directly to your doorstep. Secure this high-performance solution today to elevate your operational efficiency and reliability. Explore the full range of Schneider Electric Altivar 71 VFDs or browse our complete selection of Schneider Electric Variable Frequency Drives to find the perfect fit for your specific needs.
