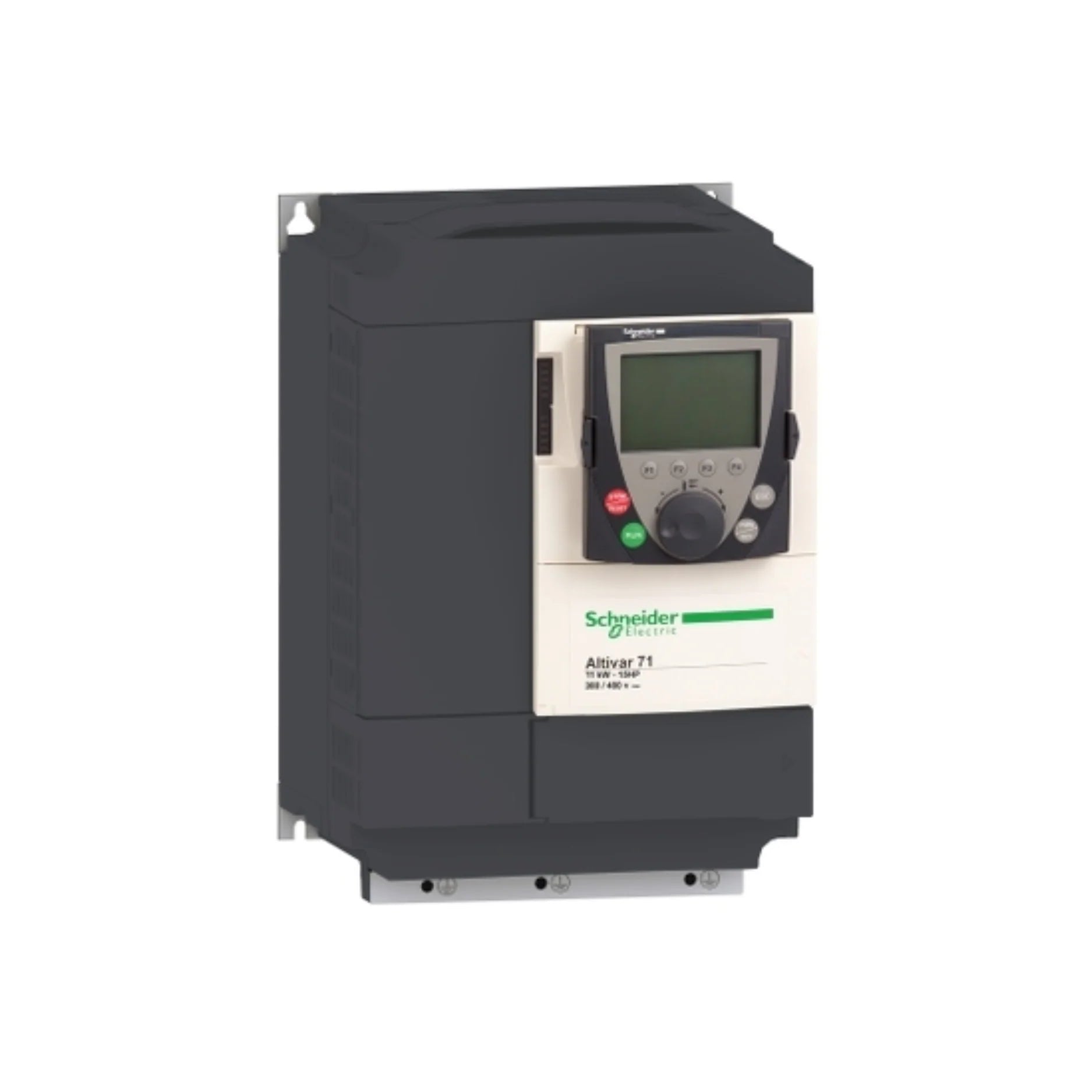

Schneider Electric ATV71HD11N4

Overview

Experience next-level motor management with the Schneider Electric ATV71HD11N4, a standout variable frequency drive from the esteemed Altivar 71 series. Engineered for precision and resilience, this 11 kW (15 HP) VFD delivers exceptional control for your 480V, 3-phase applications. It comes equipped with a built-in EMC filter to minimize electromagnetic interference and a highly intuitive, detachable graphic terminal for effortless configuration and monitoring. The ATV71HD11N4 is a testament to advanced engineering, offering a comprehensive suite of control capabilities, remarkable energy efficiency, and seamless connectivity, making it the ideal solution for the most challenging industrial environments.

Key Features

• Robust Power Delivery: Achieves a formidable 11 kW (15 HP) output, perfectly suited for demanding industrial machinery.
• Flexible Voltage Compatibility: Operates efficiently across 380-480V AC, 3-phase power systems.
• Optimized Current Output: Provides a steady 24 A output current for reliable motor operation.
• Integrated EMC Solution: Features an onboard EMC filter, crucial for maintaining signal integrity and regulatory compliance.
• User-Centric Interface: Includes a high-definition, detachable graphic terminal for intuitive command and real-time data visualization.
• Dynamic Control Modes: Supports advanced control strategies including sensorless vector, flux vector, and precise V/Hz methods.
• Seamless Communication: Built-in Modbus and CANopen protocols ensure straightforward integration into existing control networks.
• Adaptable Mounting Options: Designed for versatile installation, accommodating wall-mounted or cabinet placements.
• Durable Enclosure: Boasts an IP20 open-style enclosure, offering necessary protection for controlled environments.

Technical Specifications

• Catalog Identifier: ATV71HD11N4
• Input Voltage Range: 380–480V ±10%, 3-phase
• Input Frequency: 50/60 Hz ±5%
• Output Frequency Span: Configurable from 0.1 to 599 Hz
• Efficiency Rating: Exceeds 95%, ensuring minimal energy waste.
• Operational Temperature: Functions flawlessly from -10°C to +50°C (14°F to 122°F) without performance degradation.
• Storage Temperature: Safely endures temperatures ranging from -25°C to +70°C.
• Altitude Tolerance: Maintains full performance up to 1000 m above sea level without derating.
• Physical Dimensions (H x W x D): Compact design at 14.88 x 10.24 x 9.06 inches (378 x 260 x 230 mm).
• Mass: Approximately 31.1 lbs (14.1 kg).
• Certifications: Conforms to strict industry standards including IEC/EN 61800-5-1, UL, CSA, and CE.

Applications

The Schneider Electric ATV71HD11N4 excels in a broad spectrum of industrial applications where precise motor control and energy efficiency are paramount. Its robust design and advanced features make it an invaluable asset for:

• Optimizing performance in HVAC systems for pumps and ventilation fans.
• Enhancing the reliability and speed control of conveyors and mixing equipment in manufacturing facilities.
• Driving various material handling and sophisticated packaging machinery with consistent accuracy.
• Implementing complex automation solutions demanding unparalleled torque regulation and dynamic speed management.

Why Choose This Model?

Selecting the Schneider Electric ATV71HD11N4 signifies an investment in operational excellence and longevity. This particular model differentiates itself through:

• Unmatched Versatility: Offers a wide array of control functionalities to proficiently manage even the most challenging motor applications.
• Electromagnetic Purity: Its integrated EMC filter not only mitigates electrical noise but also ensures smoother operation and compliance in sensitive environments.
• Intuitive User Experience: The advanced graphic terminal simplifies parameter setting and offers clear diagnostic feedback, improving operational efficiency.
• Enduring Performance: Engineered for robust and energy-efficient long-term use, guaranteeing reliability and cost savings across various industrial sectors.

Order Now

Elevate your industrial operations with the Schneider Electric ATV71HD11N4 Altivar 71 VFD. This high-performance drive is readily available to ship, bringing a new standard of control and efficiency to your facility.
