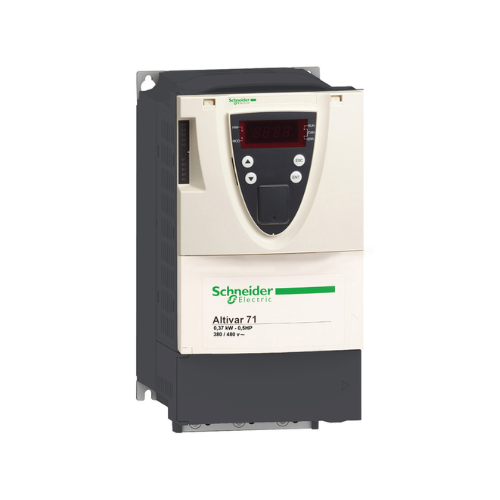

Schneider Electric ATV71H075N4Z

Overview

Introducing the Schneider Electric ATV71H075N4Z, a core component from the renowned Altivar 71 series, engineered to deliver unparalleled precision in motor control. This compact yet robust variable speed drive (VSD) is specifically designed for sophisticated management of three-phase asynchronous and synchronous motors across diverse industrial landscapes. Operating at 0.75 kW (1 HP) with an input voltage of 380–480V, this unit integrates cutting-edge motor control algorithms, an embedded electromagnetic compatibility (EMC) filter for noise suppression, and a versatile array of communication possibilities, making it an indispensable asset for modern automation systems.

Key Features

• Optimized Power Delivery: Provides 0.75 kW (1 HP) for efficient and controlled motor operation.
• Voltage Versatility: Compatible with 3-phase, 380–480V ±10% input, adapting to various power infrastructures.
• Dynamic Frequency Range: Boasts an output frequency spanning 0.1 to 599 Hz, offering extensive control flexibility.
• Multi-Mode Motor Governance: Features advanced control options including V/f (Voltage/Frequency), Sensorless Flux Vector Control (SFVC), and Flux Vector Control (FVC) with encoder feedback; also supports permanent magnet motors for broader application.
• Integrated Interference Suppression: Equipped with a built-in EMC Filter to significantly reduce electromagnetic interference, ensuring system stability.
• Enhanced Operational Safety: Incorporates a Safe Torque Off (STO) function, complying with critical safety directives.
• Flexible Connectivity: Includes an integrated Modbus port and offers expandability via communication cards (e.g., CANopen, Profibus, Ethernet/IP) for seamless system integration.
• Intuitive User Interface: Supports an optional graphic display terminal, simplifying setup, configuration, and real-time monitoring.

Technical Specifications

• Product Identifier: ATV71H075N4Z
• Series Classification: Altivar 71
• Motor Output Power: 0.75 kW (1 HP)
• Nominal Current Output: Approximately 2.1 Amperes
• Maximum Transient Handling: Up to 3.1 Amperes (for 60 seconds)
• Switching Frequency: Default setting at 2.5 kHz (user-adjustable up to 16 kHz with appropriate derating).
• Enclosure Protection: IP20 rated, providing protection against solid objects larger than 12 mm.
• Operational Temperature Span: Functional from -10°C to +50°C without requiring derating.
• Altitude Capability: Operates effectively up to 1000 meters above sea level without derating.
• Installation Method: Designed for either wall or panel mounting configurations.
• Physical Dimensions (W x H x D): Approximately 105 mm x 184 mm x 152 mm
• Unit Mass: Weighs approximately 2.2 kg

Applications

The ATV71H075N4Z is ideally suited for a variety of demanding industrial applications where precise speed and torque control are paramount:

• Compact Pumping and Ventilation Systems: Enhances efficiency and reduces energy consumption in small-scale fluid and air handling.
• Automated Material Handling Solutions: Provides smooth and controlled movement for light material transport.
• Light-Duty Conveyance and Mixing Equipment: Ensures consistent performance in manufacturing and processing lines.
• General Industrial Machine Automation: A versatile drive for a broad spectrum of automated machinery requiring precise motor regulation.

Why Choose This Model?

Opting for the Schneider Electric ATV71H075N4Z means investing in a solution that brings together reliability, precision, and adaptability. This drive offers:

• Unmatched Motor Control: Experience highly accurate motor performance vital for critical industrial processes.
• Integrated System Integrity: Benefit from an in-built EMC filter and advanced safety features, protecting both equipment and personnel.
• Adaptable System Integration: Its modular design allows for seamless expansion and integration into diverse control architectures.
• Enduring Performance in a Space-Saving Design: Achieve consistent, high-quality operation from a compact unit, ideal for installations with limited space.

Order Now

Elevate your industrial automation capabilities with the Schneider Electric ATV71H075N4Z. Take advantage of our streamlined ordering process, secure payment gateways, and efficient delivery services to get this essential component into your system quickly.
