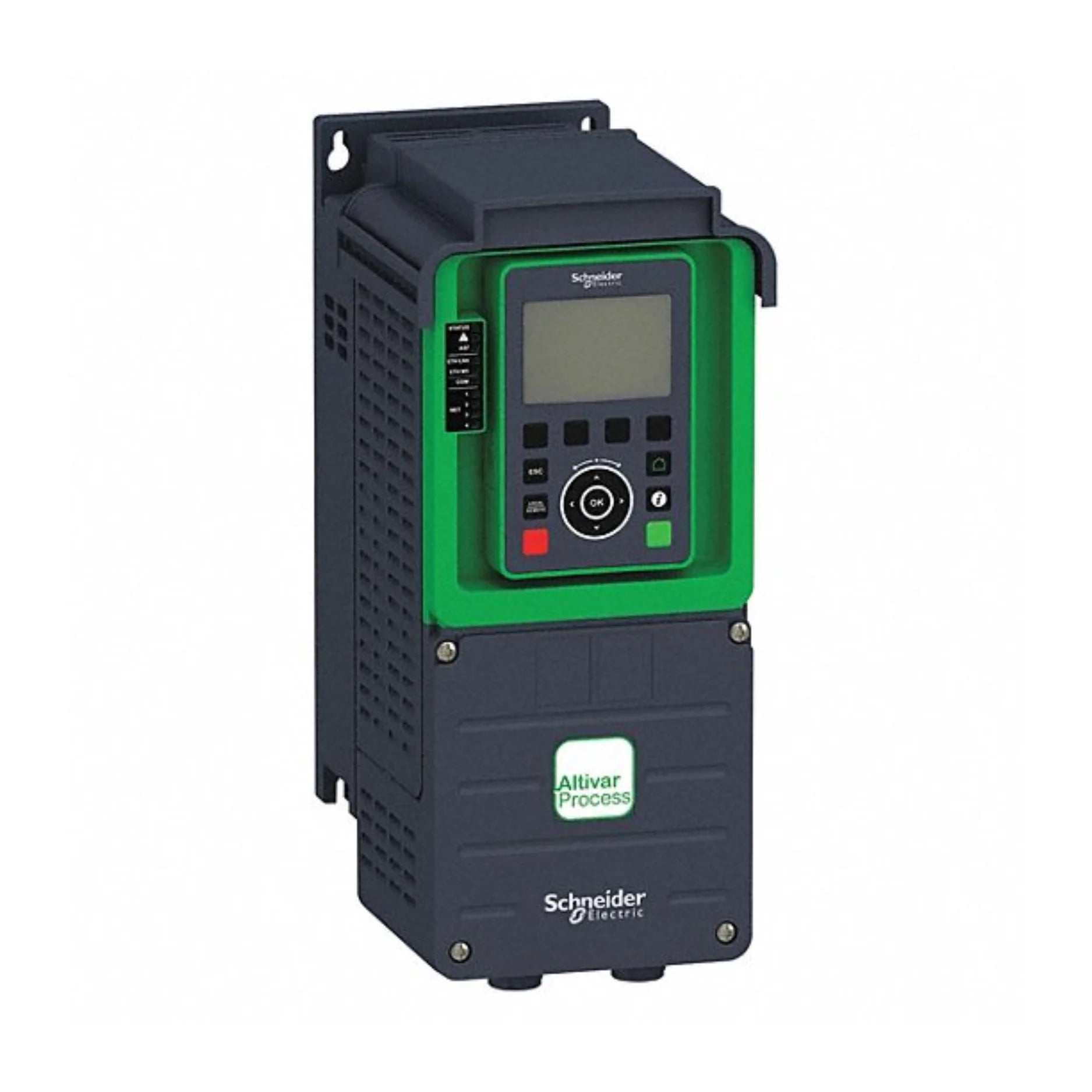

Schneider Electric ATV630U40N4

Overview

The Schneider Electric ATV630U40N4 stands as a testament to cutting-edge motor control technology. This 4 kW (5 HP) variable speed drive from the acclaimed Altivar 630 series is engineered to deliver unparalleled precision and efficiency across a spectrum of industrial applications. Crafted for demanding operational environments, it seamlessly integrates with 380–480 V three-phase power systems, providing advanced sensorless vector control capabilities. Its robust design incorporates comprehensive diagnostics and IP21 / UL Type 1 protection, making it an ideal choice for secure installation within indoor cabinet settings.

Key Features

• Power Output: Supplies 4 kW (5 HP) for optimal motor performance.
• Input Voltage Range: Compatible with 380–480 V AC, 3-phase electrical systems.
• Sophisticated Control: Features both sensorless vector and V/F control modes for versatile operations.
• Environmental Shielding: Boasts an IP21 (UL Type 1) enclosure rating, suitable for protected indoor use.
• Connectivity Options: Includes standard Modbus RTU, with optional Ethernet/IP and PROFINET communication modules available.
• Integrated Interfaces: Equipped with a comprehensive suite of digital and analog input/output ports for streamlined system integration.
• Operational Safety: Supports Safe Torque Off (STO) functionality, enhancing compliance with safety protocols.
• Diagnostic Tools: Incorporates LED indicators and an event logging system for effective fault identification and system monitoring.

Technical Specifications

• Product Identifier: ATV630U40N4
• Input Voltage Tolerance: Operates within a broad 323–528 V AC range.
• Nominal Output Current: Delivers 9 A for consistent operation.
• Switching Frequency: Configurable from 4 kHz, adjustable up to 12 kHz for tailored performance.
• Overload Resiliency: Withstands 150% overload for 1 minute and 200% for 20 seconds, ensuring durability under stress.
• I/O Configuration: Features 4 digital inputs, 2 analog inputs, and 2 relay outputs for extensive control.
• Operational Temperature Span: Reliably functions from –10 °C to +50 °C.
• Installation Method: Designed for vertical mounting on a back panel or within an equipment cabinet.
• Physical Dimensions (W×H×D): Approximately 150 × 300 × 200 mm, ensuring a compact footprint.
• Unit Weight: Approximately 12 kg, facilitating manageable installation.

Applications

• Optimized for pumps, fans, and various compressor systems.
• Essential for material handling and advanced conveyor system operations.
• Crucial component in packaging lines and sophisticated automated machinery.
• Ideal for managing HVAC systems in large-scale industrial and commercial settings.
• Perfect for OEM control panels requiring a compact, yet highly dependable drive solution.

Why Choose This Model?

Opting for the Schneider Electric ATV630U40N4 signifies a commitment to superior industrial automation. Its advanced 4 kW vector control guarantees exceptional precision for even the most demanding loads, translating into optimized operational efficiency and reduced energy consumption. With its IP21 protection, this drive is perfectly suited for installation within indoor enclosures, ensuring longevity and consistent performance in protected environments. The integrated Modbus communication, complemented by optional advanced protocols like Ethernet/IP, provides unparalleled networking flexibility, simplifying integration into existing or new control architectures. Furthermore, the inclusion of Safe Torque Off (STO) capabilities helps facilities meet stringent functional safety requirements, providing peace of mind and enhanced operational security. Coupled with comprehensive event logging and robust thermal protection, the ATV630U40N4 offers reliable diagnostics and unwavering performance day in and day out.

Order Now

Unlock the full potential of your industrial systems with the Schneider Electric ATV630U40N4 variable speed drive. This high-performance unit is readily available and can be shipped globally to meet your project timelines. Elevate your control capabilities today.
