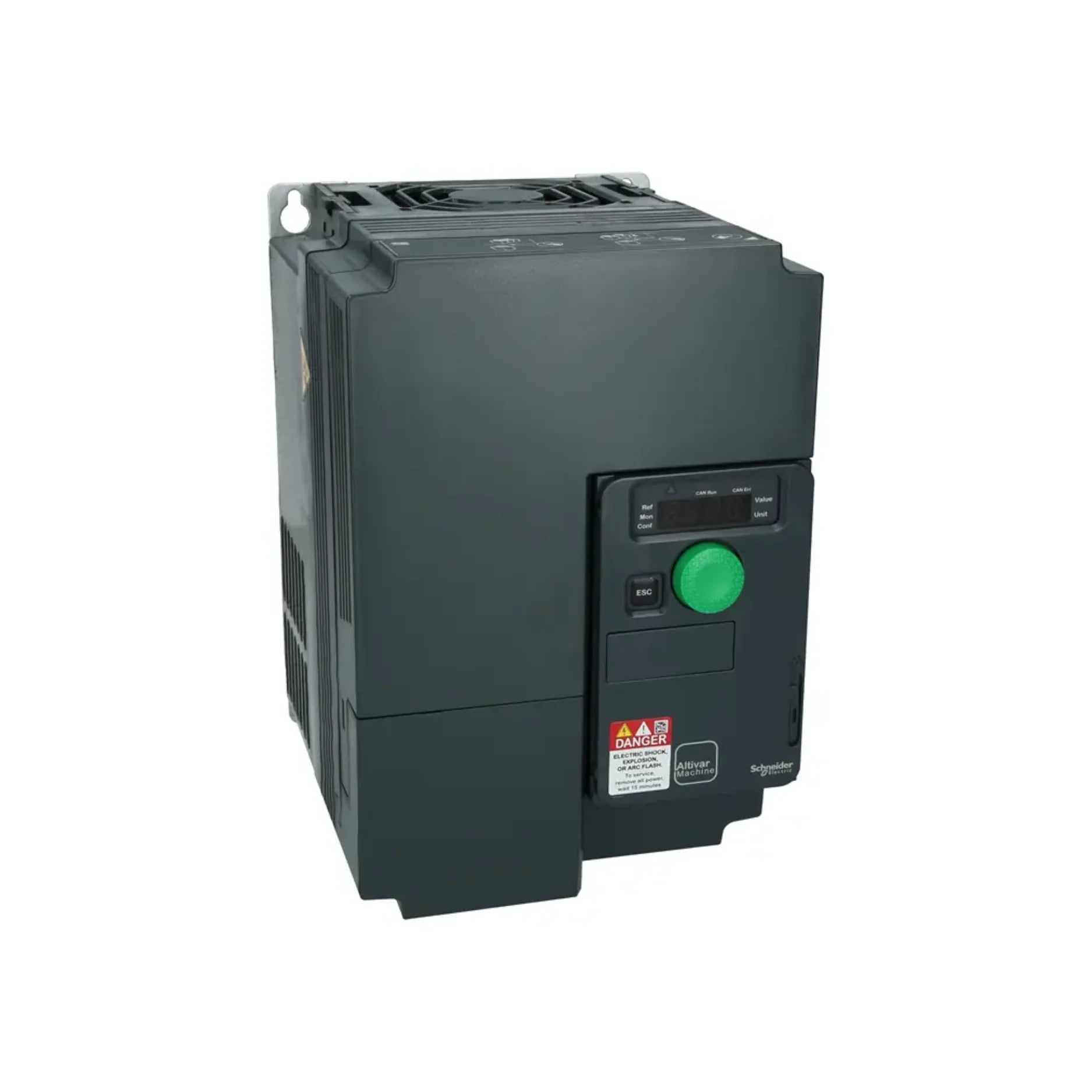

Schneider Electric ATV320U55N4C

Overview

Introducing the Schneider Electric ATV320U55N4C, a robust variable speed drive engineered to elevate the precision and efficiency of your industrial machinery. From the esteemed Altivar Machine ATV320 series, this VSD delivers 5.5 kW (7.5 HP) of power, providing fine-tuned control for both asynchronous and synchronous motors. Its 3-phase, 380–500V input, coupled with an integrated EMC filter, ensures dependable operation and compliance in diverse industrial settings. Designed for original equipment manufacturers (OEMs) and advanced automation systems, the ATV320U55N4C combines compact design with unparalleled reliability and advanced functionality.

Key Features

• Optimal Power Delivery: Provides 5.5 kW (7.5 HP) for a wide array of motor-driven applications.
• Broad Voltage Compatibility: Operates efficiently with 3-phase, 380–500V ±10% input voltage.
• Flexible Frequency Output: Delivers an output frequency range from 0.1 Hz to 599 Hz for versatile motor speed management.
• Extensive Motor Support: Engineered to control both asynchronous and synchronous permanent magnet motor types with expertise.
• Diverse Control Strategies: Features V/f (Voltage/Frequency), Sensorless Flux Vector Control (SFVC), and Flux Vector Control with encoder (FVC) for precise motor dynamics.
• Integrated EMC Solution: Benefits from a built-in Class C2 EMC filter, reducing electromagnetic interference and ensuring system harmony.
• Enhanced Safety Protocols: Incorporates Safe Torque Off (STO) functionality for critical machinery safety.
• Comprehensive Communication Suite: Equipped with embedded Modbus RTU and CANopen, with optional expansion via EtherNet/IP, Profibus DP, Profinet cards, and more.

Technical Specifications

• Model Identifier: ATV320U55N4C
• Product Line: Altivar Machine ATV320 Series
• Rated Output Current: 12.1 A, ensuring stable power delivery.
• Peak Transient Capacity: Capable of 18.2 A for up to 60 seconds, handling sudden load demands.
• Switching Precision: Default 4 kHz switching frequency, adjustable between 2 kHz and 16 kHz for application-specific tuning.
• Environmental Protection: Features an IP20 protection rating, suitable for controlled environments.
• Operational Temperature Range: Functions flawlessly from -10°C to +50°C without requiring derating.
• Altitude Resilience: Maintains performance up to 1000 m above sea level without derating.
• Installation Versatility: Designed for convenient panel or DIN rail mounting.
• Compact Dimensions: Measures 105 mm (W) x 184 mm (H) x 180 mm (D), optimizing cabinet space.
• Weight: Approximately 2.5 kg, facilitating easy handling and installation.

Applications

• Precision-controlled operation of industrial pumps and ventilation systems.
• Optimizing packaging machinery and material handling conveyors for increased throughput.
• Enhancing the performance of machine tools and general conveying systems.
• Efficiently managing HVAC systems and various light industrial equipment.

Why Choose This Model?

The Schneider Electric ATV320U55N4C stands out as a premier choice for professionals seeking a high-performance, compact variable speed drive. Its exceptional motor control capabilities, coupled with an integrated EMC filter, guarantee superior operational integrity and reduced electromagnetic noise. The drive's expansive connectivity options and crucial safety features, such as Safe Torque Off, make it an indispensable component for modern industrial automation. This model is perfectly suited for OEMs and panel builders who demand reliability, advanced functionality, and space efficiency in their projects.
