Schneider Electric ATV320U22M2C

Overview

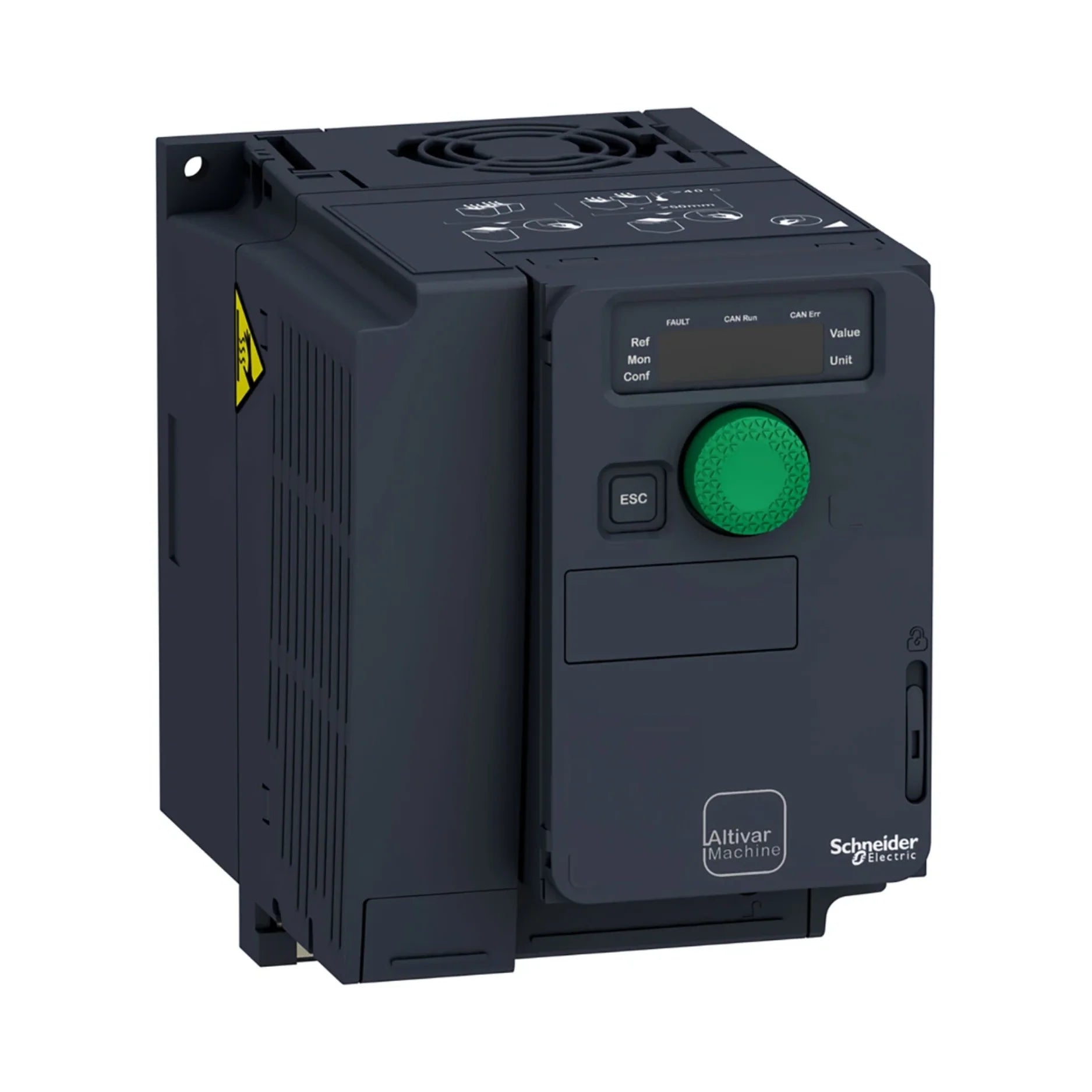

Unlock superior motor performance and energy efficiency with the Schneider Electric ATV320U22M2C Variable Speed Drive. As a pivotal component of the Altivar Machine ATV320 series, this 2.2 kW (3 HP) VSD is ingeniously engineered for both asynchronous and synchronous motors. Operating seamlessly on a 200–240V single-phase input, it delivers a robust 3-phase output, making it an excellent choice for a variety of industrial environments. Its integrated EMC filtering ensures compliance and reliability, while multiple control modes provide unparalleled flexibility for Original Equipment Manufacturers (OEMs) and those building small to medium-sized machinery.

Key Features

• Power Rating Excellence: Delivers 2.2 kW (equivalent to 3 HP) for dependable motor operation.
• Versatile Input Voltage: Accommodates 200–240V single-phase power, simplifying integration.
• Stable Output: Provides a consistent 3-phase, 200–240V output to your motors.
• Broad Frequency Range: Adjustable output frequency from 0.1 Hz to an impressive 599 Hz for precise speed control.
• Comprehensive Motor Compatibility: Supports a wide array of motor types, including asynchronous and advanced synchronous permanent magnet motors.
• Advanced Control Modes: Features V/f (Voltage/Frequency), Sensorless Flux Vector Control (SFVC), and Flux Vector Control with encoder (FVC) for optimal motor management.
• Integrated EMC Solution: Class C2 EMC filter built-in, ensuring electromagnetic compatibility and reducing interference.
• Enhanced Safety Protocols: Includes Safe Torque Off (STO) functionality for critical safety applications.
• Flexible Communication Options: Equipped with embedded Modbus RTU and CANopen, with expandability via optional cards for Ethernet/IP, Profinet, and other industrial protocols.

Technical Specifications

• Model Identification: ATV320U22M2C
• Product Series: Altivar Machine ATV320
• Nominal Output Current: 9.6 A
• Peak Transient Current: Can handle up to 14.4 A for durations of 60 seconds.
• Switching Frequency: Default setting of 4 kHz, adjustable within a range of 2–16 kHz.
• Enclosure Protection: IP20 rated, safeguarding against solid objects larger than 12.5mm.
• Operational Temperature Range: Functions efficiently from -10°C to +50°C without derating.
• Altitude Capability: Maintains full performance up to 1000 meters above sea level without derating.
• Mounting Flexibility: Designed for convenient installation on DIN rails or via panel mounting.
• Dimensions (W x H x D): Compact footprint of 105 mm x 184 mm x 180 mm.
• Weight: Approximately 2.5 kg, facilitating easy handling and installation.

Applications

The ATV320U22M2C is a remarkably versatile drive, perfectly suited for a broad spectrum of industrial applications where precision, efficiency, and reliability are paramount. Its robust design and intelligent features make it an ideal solution for:

• Fluid Management: Optimizing the performance of pumps and fans.
• Material Handling: Driving small conveyors with smooth, controlled motion.
• Climate Control Systems: Efficiently managing HVAC systems for improved energy usage.
• Manufacturing Equipment: Integral for various OEM and light-duty industrial machinery, enhancing operational efficiency.

Why Choose This Model?

The Schneider Electric ATV320U22M2C stands out as a premier choice for professionals seeking a high-caliber variable speed drive. Its intelligent design merges compact form with powerful functionality, offering an unparalleled solution for modern industrial demands. This model is not just a component; it's an investment in efficiency, safety, and long-term reliability. Its ability to flawlessly integrate into various systems, coupled with its advanced motor control capabilities, positions it as a leader in its class, ensuring your operations run smoother and more cost-effectively. Opt for this drive to benefit from Schneider Electric's renowned quality and innovative engineering.

Order Now

Ready to elevate your motor control capabilities? Secure the Schneider Electric ATV320U22M2C Variable Speed Drive today and experience enhanced performance and reliability. Benefit from our efficient shipping services and global delivery options. Don't forget to explore our comprehensive range of Schneider Electric Altivar 320 VFDs and other Schneider Electric Variable Frequency Drives to meet all your power control requirements.
