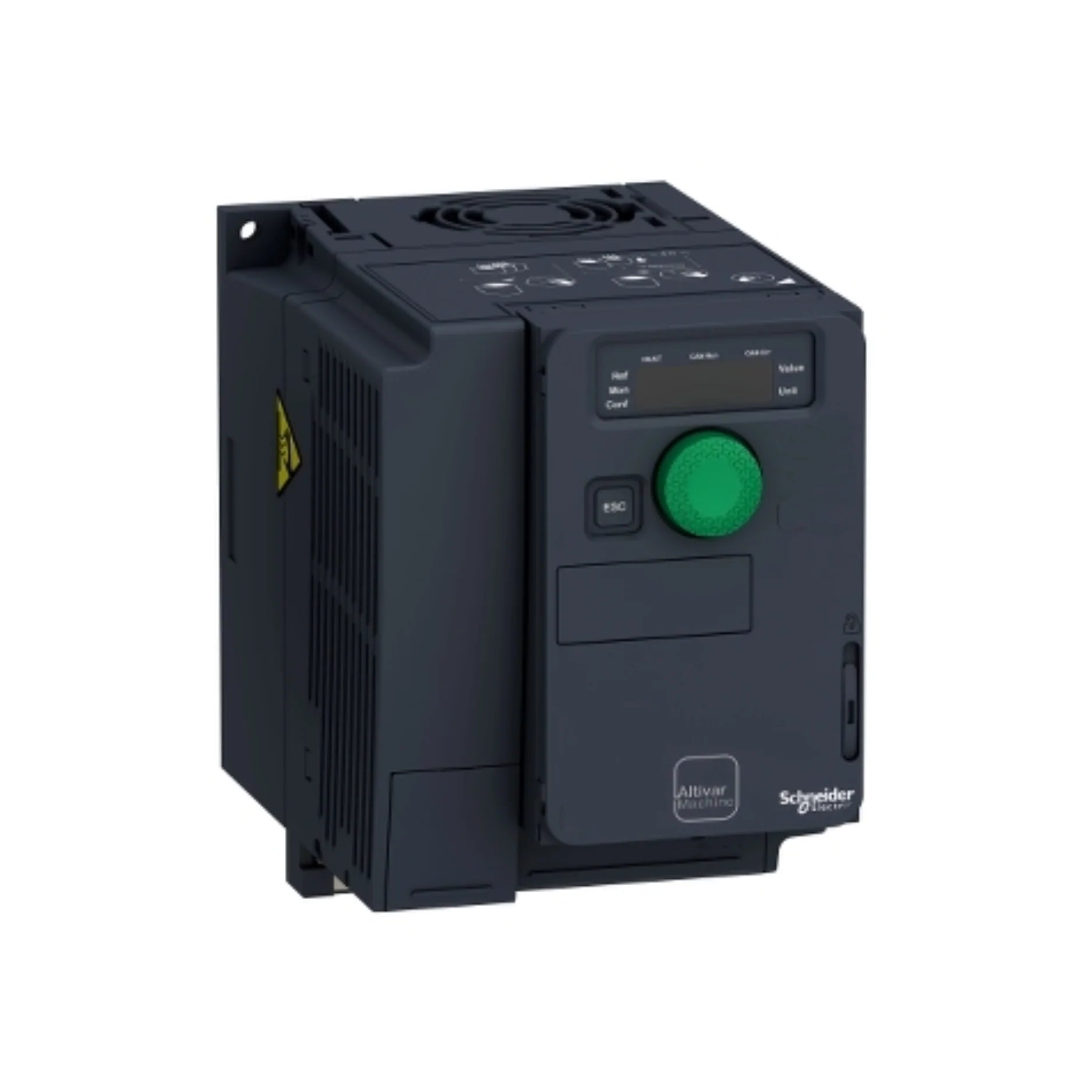

Schneider Electric ATV320U06N4C

Overview

Introducing the Schneider Electric ATV320U06N4C, a robust variable speed drive meticulously engineered within the Altivar Machine ATV320 series. This compact yet powerful VSD is purpose-built to deliver exceptional control over both asynchronous and synchronous motors, making it an ideal solution for a diverse array of industrial machinery. Operating on a reliable 380–500V three-phase input, the ATV320U06N4C seamlessly integrates an EMC Class C2 filter, ensuring electromagnetic compatibility and signal integrity. Its adaptable design supports multiple sophisticated motor control methodologies, guaranteeing optimal performance and impressive flexibility within a remarkably space-efficient footprint.

Key Features

• Dynamic Power Rating: Delivers 0.55 kW (0.75 HP) of dependable power for small to medium-duty applications.
• Flexible Input Voltage: Accepts a versatile 3-phase input supply, ranging from 380–500V with a tolerance of ±10%.
• Broad Output Frequency: Provides a wide output frequency range from 0.1 to 599 Hz, allowing for precise speed adjustments.
• Advanced Control Algorithms: Incorporates sophisticated control modes including V/f (Voltage/Frequency), Sensorless Flux Vector Control (SFVC), and Flux Vector Control with encoder (FVC) for superior motor management.
• Universal Motor Compatibility: Expertly handles both asynchronous (induction) and synchronous (permanent magnet) motor types.
• Integrated EMC Filtering: Features an onboard Class C2 Electromagnetic Compatibility filter, reducing interference and simplifying installation.
• Enhanced Safety Provisions: Equipped with a built-in Safe Torque Off (STO) function, complying with essential machinery safety standards.
• Foundation for Communication: Includes embedded Modbus RTU and CANopen communication protocols for immediate integration.
• Expandable Network Options: Offers expansion capabilities through optional modules for popular industrial protocols such as Ethernet/IP, Profinet, and Profibus, future-proofing your system.

Technical Specifications

• Model Identifier: ATV320U06N4C
• Product Line: Altivar Machine ATV320
• Rated Output Current: 1.3 A
• Peak Transient Current: Capable of 2.0 A for up to 60 seconds, ensuring robust operation under load.
• Switching Frequency: Default 4 kHz, adjustable from 2 to 16 kHz for fine-tuned motor control.
• Environmental Protection: Boasts an IP20 protection rating, suitable for controlled indoor environments.
• Operational Temperature: Functions reliably from -10°C to +50°C without any performance derating.
• Altitude Performance: Maintains full performance up to 1000 meters above sea level without derating.
• Mounting Versatility: Designed for convenient DIN rail or direct panel mounting.
• Physical Dimensions (W x H x D): Measures a compact 72 mm x 143 mm x 158 mm.
• Product Weight: Approximately 1.2 kg, facilitating easy handling and installation.

Applications

The Schneider Electric ATV320U06N4C is a versatile performer, excelling in applications where precise speed and torque control are paramount. Its compact design and robust features make it particularly well-suited for:

• Small-scale Conveyor Systems and Mixers requiring consistent and adjustable motion.
• Pumps and Fans demanding energy efficiency and optimized flow control.
• Machine Tools where accuracy and rapid response are critical for machining processes.
• Packaging and Handling Systems benefiting from synchronized movements and precise positioning.

Why Choose This Model?

Opting for the Schneider Electric ATV320U06N4C means investing in efficiency, reliability, and advanced control for your machinery. Its design prioritizing compactness does not compromise on power or functionality, ensuring it fits seamlessly into tight spaces while delivering top-tier performance. The integrated EMC filter and essential safety features like Safe Torque Off (STO) streamline compliance and enhance operational security. Furthermore, its versatile motor control capabilities, encompassing both asynchronous and synchronous types, offer unparalleled flexibility for diverse industrial requirements. With built-in and expandable communication protocols, this drive is ready for integration into modern, connected industrial environments. Choose the ATV320U06N4C for a future-proof solution that minimizes downtime and optimizes productivity.
