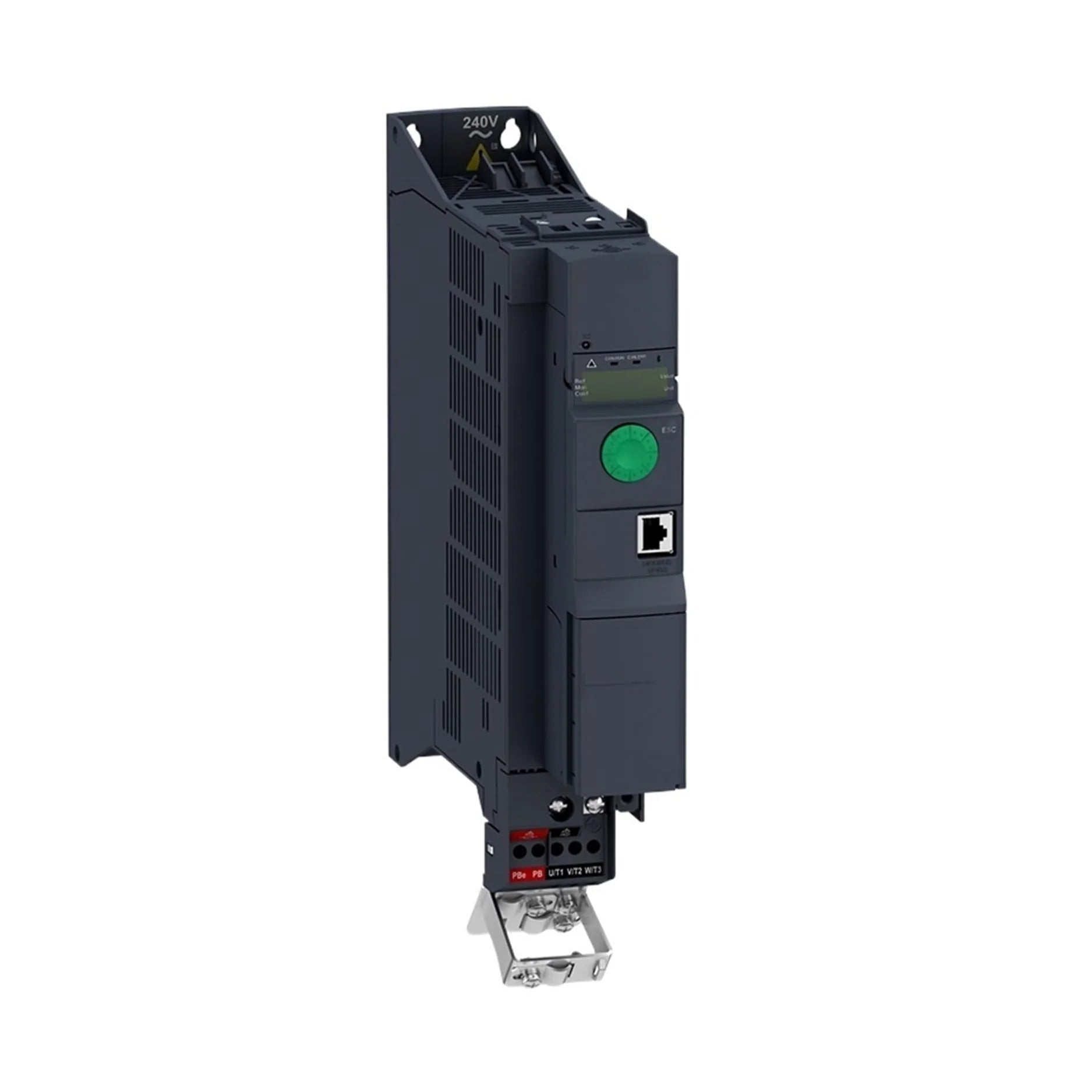

Schneider Electric ATV320U06N4B

Overview

Experience unparalleled control and efficiency with the Schneider Electric ATV320U06N4B, a sophisticated 0.55 kW (0.75 HP) variable speed drive from the acclaimed Altivar Machine ATV320 series. Engineered meticulously for original equipment manufacturers (OEMs) and diverse industrial automation landscapes, this drive stands out with its robust 3-phase 380–500V input, an integrated EMC filter for reduced electromagnetic interference, and a remarkably compact form factor. It delivers unwavering, precise operational command over both asynchronous and permanent magnet motors, making it the ideal solution for optimizing performance in a myriad of small-scale machinery.

Key Features

• Power Output: Supplies 0.55 kW (0.75 HP) for reliable operation.
• Voltage Input: Configured for 3-phase, 380–500V ±10% power supplies.
• Frequency Agility: Provides an adjustable output frequency range from 0.1 to 599 Hz.
• Motor Versatility: Fully compatible with both asynchronous and synchronous motor types.
• Advanced Control Modalities: Supports multiple control modes including:
  • V/f (Voltage/Frequency) for fundamental control.
  • Sensorless Flux Vector Control (SFVC) for enhanced performance without an encoder.
  • Flux Vector Control with Encoder (FVC) for maximum precision and dynamic response.
• Integrated EMC Solution: Features a Class C2 integrated EMC filter, minimizing electrical noise.
• Essential Safety Integration: Incorporates Safe Torque Off (STO) functionality for critical safety applications.
• Adaptable Communication Options:
  • Embedded Modbus RTU and CANopen for immediate network integration.
  • Optional expansion modules available for comprehensive connectivity via Ethernet/IP, Profinet, Profibus, and more.

Technical Specifications

Designed for resilience and performance, the ATV320U06N4B embodies cutting-edge technical prowess.

• Model Identifier: ATV320U06N4B
• Product Line: Altivar Machine ATV320 Series
• Rated Output Current: Steady 1.3 A.
• Peak Transient Current: Achieves 2.0 A for durations up to 60 seconds.
• Adjustable Switching Frequency: Defaults to 4 kHz, with user-configurable settings from 2 to 16 kHz.
• Ingress Protection: Rated IP20, safeguarding against solid objects.
• Operational Temperature Range: Maintains performance from -10°C to +50°C without derating.
• Altitude Performance: Operates efficiently up to 1000 m without needing power derating.
• Mounting Flexibility: Offers both panel and DIN rail mounting options for varied installations.
• Physical Footprint (W x H x D): Approximately 72 mm x 143 mm x 158 mm.
• Unit Mass: Weighs approximately 1.2 kg.

Applications

The versatility of the Schneider Electric ATV320U06N4B makes it perfectly suited for optimizing a wide array of industrial and commercial applications, including:

• Precision control in small conveyor systems and pumping mechanisms.
• Enhancing efficiency and reliability in packaging machinery.
• Regulating performance within HVAC and ventilation infrastructure.
• Driving various compact OEM equipment with superior motor control.

Why Choose This Model?

The ATV320U06N4B is more than just a variable speed drive; it's a strategic investment in efficiency and reliability. Its space-saving design means seamless integration into even the most constrained machine layouts, while its advanced motor control algorithms deliver unparalleled precision and energy savings. With built-in safety features and an integrated EMC filter, it ensures both operator protection and system integrity, reducing the need for external components. Furthermore, its flexible communication suite guarantees effortless integration into existing control architectures, simplifying setup and scaling. Choose this model for a definitive upgrade in operational performance and peace of mind.

Order Now

Ready to elevate your machinery's performance? Secure your Schneider Electric ATV320U06N4B today and benefit from our efficient dispatch process and robust worldwide shipping capabilities.
